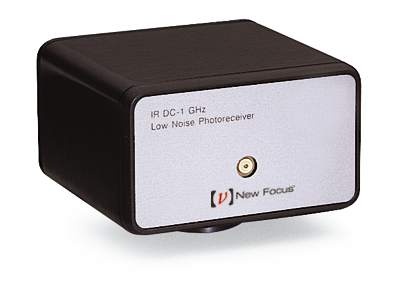

Free Space Optical Receiver, 320-1000 nm Silicon, 30 kHz to 1 GHz, AC-Coupled
The 1601FS-AC Silicon Optical Receiver is used for experiments requiring up to 1 GHz bandwidths and 400 ps rise times. This free space photoreceiver offers a well-balanced combination of gain, bandwidth and very low noise. The wavelength range is 320 to 1000 nm. For mounting it has an 8-32 mounting thread, and we include an M4 metric thread adaptor and tool.
An external ±15 VDC power supply, which must be purchased separately, is required. Power supply cables and are included with each detector.
Specifications
Maximum Pulse Power
10 mW
Peak Responsivity
0.5 A/W
DC Bias Monitor Bandwidth
20 KHz
DC Bias Monitor Transimpedance Gain
-10 V/mA
Output Connector
SMA
Output Impedance
50 Ω
Operating Temperature
10 - 35 °C, < 70% RH
Power Requirements
±15 VDC, 300 mA
Thread Type
8-32 (includes M4 adapter)
Maximum Pulse Power
10 mW
Peak Responsivity
0.5 A/W
DC Bias Monitor Bandwidth
20 KHz
DC Bias Monitor Transimpedance Gain
-10 V/mA
Output Connector
SMA
Output Impedance
50 Ω
Operating Temperature
10 - 35 °C, < 70% RH
Power Requirements
±15 VDC, 300 mA
Thread Type
8-32 (includes M4 adapter)
