Goniometer, 561 Series
Model: 561-GON
Product Series Overview
ULTRAlign Precision Fiber Tilt and Rotation PositionersThe 561-GON Goniometer provides precision rotation (θX) about the axis of the fiber. This is useful for aligning polarization maintaining fiber or fiber arrays. The goniometer attaches to 561 and 562 ULTRAlign Linear Alignment Stages directly. A 561-GB Goniometer Bracket is required when a tilt stage is stacked on the linear stage. 561-GON includes an SM Series Micrometer for precision positioning. The 561-GON can be used in either right- or left-hand configurations.

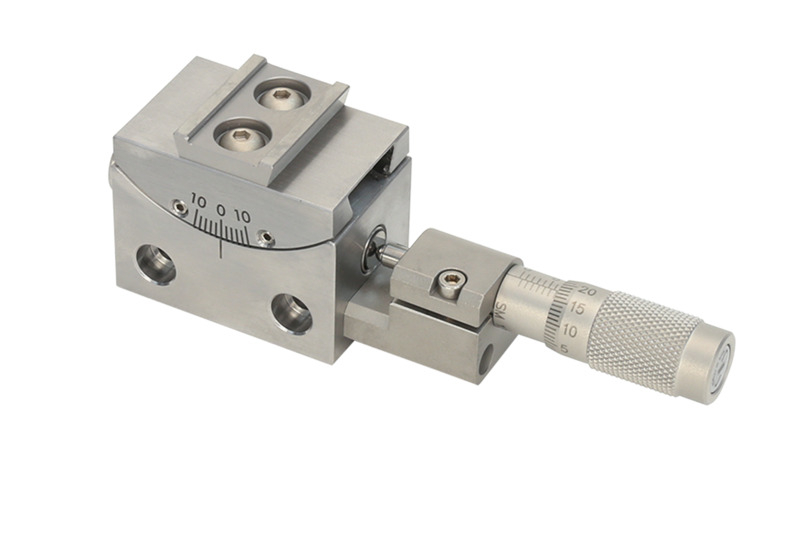

Micrometer Driven Goniometer for Precision Roll Control
The 561-GON Goniometer provides micrometer controlled rotation (θX) about the axis of the fiber, suitable for precision alignment of polarization angles for polarization preserving fibers or fiber arrays. The goniometer attaches to 561 and 562 ULTRAlign Linear Alignment Stages directly. A
Left or Right Handed Configurations

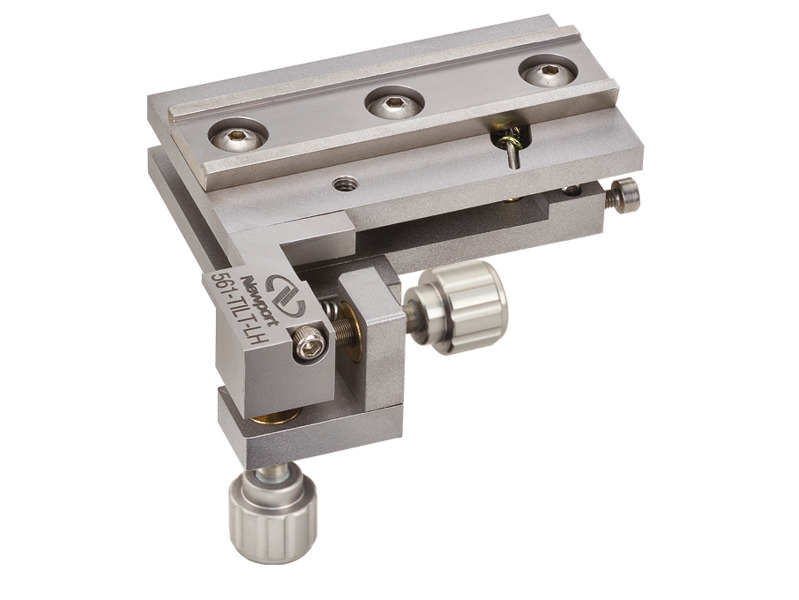

ULTRAlign™ Tilt stages come in mirror-image right and left-hand versions. This permits all micrometers to be located on the same side, so there's never a need to reach over your work to make adjustments on the opposite side. It also means you have more flexibility in how you lay out your experiment on the table. All adjustments can be made with the hand resting on the table for maximum comfort, added stability, and increased sensitivity.
Resources & Downloads
Drawings And Cad
561-GON-S(117.6 kB, PDF)
Other
561-GON RoHS Certificate(281.6 kB, PDF)
