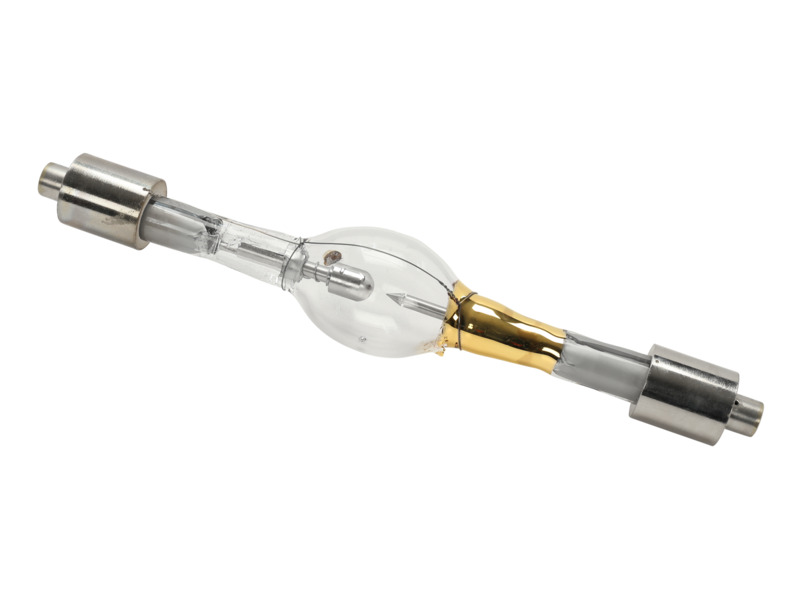

Mercury-Xenon Arc Lamp, 1000 W, 1.0 x 3.0 mm Effective Arc

The 6293 Hg(Xe) Arc Lamp is 1000 watt with a 1.0 x 3.0 mm effective arc size. Strong mercury lines through the visible and ultraviolet dominate the output spectrum of these lamps. A continuum in the infrared persists to 2.5 μm and beyond.

Due to its intense UV spectral output profile below 400 nm, Oriel recommends wearing the necessary safety equipment such as UV protective eyewear. Safety goggles or spectacles are offered separately.

This lamp is compatible with the 6162 Socket Adapter (not included).

Specifications

Technical Specs

Type
Mercury-Xenon Lamp
Lamp Type
Hg(Xe)
Lamp Wattage
1000 W
Average life
1000 h
Bulb Diameter
38 mm
Effective Arc Size
1.0 x 3.0 mm
Horizontal Intensity
5000 cd

Approximate Brightness
360 cd mm^-2
Approximate Flux
40000 lm
Lamp Current
28.5 A
Lamp Voltage
35 V

Type
Mercury-Xenon Lamp
Lamp Type
Hg(Xe)
Lamp Wattage
1000 W
Average life
1000 h
Bulb Diameter
38 mm
Effective Arc Size
1.0 x 3.0 mm
Horizontal Intensity
5000 cd

Approximate Brightness
360 cd mm^-2
Approximate Flux
40000 lm
Lamp Current
28.5 A
Lamp Voltage
35 V
