Infrared Emitter, 9 Watt

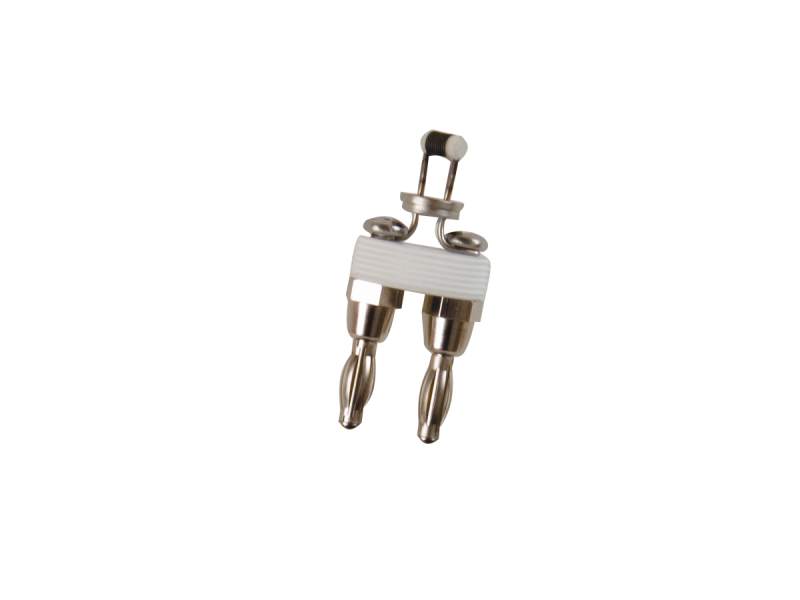

The 6580 is a 9 watt infrared (IR) emitter for use with Oriel's Q Series and Research Series lamp housings. The 6580 utilizes a high temperature, oxidation resistant wire which is tightly wound on a grooved alumina support mandrel. Its radiating area is concentrated over 0.14 square inches (3.6 mm). Unlike some other types of light sources which emit IR radiation, the 6580 is a convenient and economical design with sufficient radiant output and spectral uniformity to be of practical use in IR instrumentation applications. Install the emitter into the lamp housing using the 60048 Socket Adapter, ordered separately.

Specifications

Technical Specs

Lamp Type
Low Cost Element
Lamp Wattage
9 W
Average life
5000 hrs
Effective Arc Size
3.6 x 3.6 mm

Nominal Spot Size
7.2 x 7.2 mm
Lamp Current
1.8 A
Lamp Voltage
5.0 V
Color Temperature
1100 - 1150 K

Lamp Type
Low Cost Element
Lamp Wattage
9 W
Average life
5000 hrs
Effective Arc Size
3.6 x 3.6 mm

Nominal Spot Size
7.2 x 7.2 mm
Lamp Current
1.8 A
Lamp Voltage
5.0 V
Color Temperature
1100 - 1150 K

Resources & Downloads

3D Product Models

2D Product Drawings

Light Sources(1.6 MB, PDF)
LS-138a(468.2 kB, PDF)
