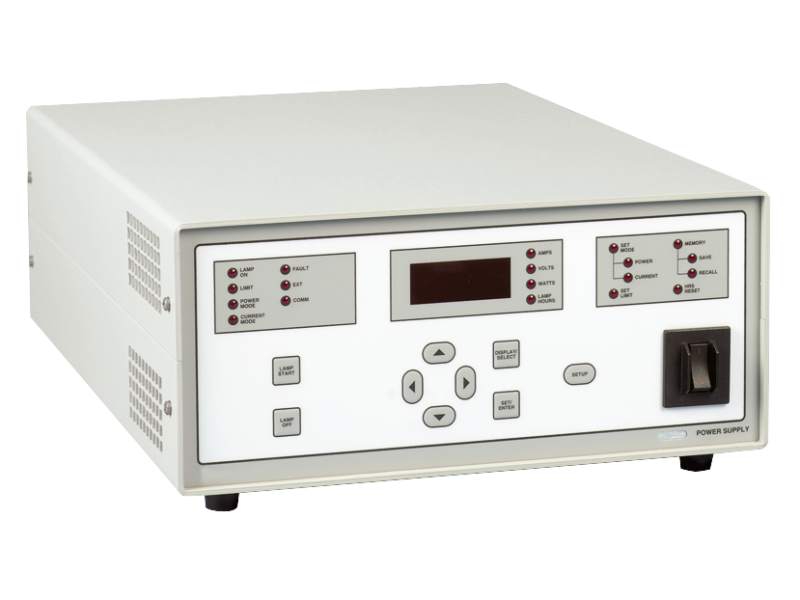

Arc Lamp Power Supply, Universal, 800 to 1800 Watt

The 69922 Universal Arc Lamp Power Supply is used to power 1600 W Solar Simulators. It is highly regulated and maintains a very stable light output. For long-term stability-critical applications, order the 68951Digital Exposure Controller. It compensates for factors beyond the power supply's control, such as lamp aging, electrode erosion, and gas adsorption and desorption. The 69922 has an RS-232 computer interface (and optional IEEE-488); you can set the lamp parameters, monitor the light output, and turn power on/off remotely. Because of the extremely high intensity of these sources, we suggest operating the lamps remotely. 800 to 1800 Watt.

Specifications

Technical Specs

Lamp Wattage
800 - 1600 W (Recommended)
800 - 1800 W (Maximum)
Operating Mode
Constant Power or Constant Current
Light Ripple
< 1% RMS
Digital Meter Resolution, Current
0.1 A
Digital Meter Resolution, Power
1 W
Digital Meter Resolution, Voltage
0.1 VDC
Accuracy
< 0.1% (% full scale)

Power Requirements
190 - 264 VAC, 47 - 63 Hz
Operating Temperature
10 - 40°C
Safety Interlock Voltage
12 VDC/GND
Input Circuit Breaker
15 A, 2 Pole
Dimensions
16.0 x 12.0 x 5.18 inches [406 x 305 x 131.6 mm] (L x W x H)
Weight
20 lbs. [9 kg]

Lamp Wattage
800 - 1600 W (Recommended)
800 - 1800 W (Maximum)
Operating Mode
Constant Power or Constant Current
Light Ripple
< 1% RMS
Digital Meter Resolution, Current
0.1 A
Digital Meter Resolution, Power
1 W
Digital Meter Resolution, Voltage
0.1 VDC
Accuracy
< 0.1% (% full scale)

Power Requirements
190 - 264 VAC, 47 - 63 Hz
Operating Temperature
10 - 40°C
Safety Interlock Voltage
12 VDC/GND
Input Circuit Breaker
15 A, 2 Pole
Dimensions
16.0 x 12.0 x 5.18 inches [406 x 305 x 131.6 mm] (L x W x H)
Weight
20 lbs. [9 kg]

Resources & Downloads

3D Product Models

2D Product Drawings

Light Sources(1.6 MB, PDF)
Oriel 69922 Power Supply User Manual(314.7 kB, PDF)
699XX Dimensions(518.3 kB, PDF)

Other

MKS EU ROHS3 - 699XX Series Lamp Power Supplies.pdf(243.9 kB, PDF)
