Picomotor Rotation Mount, Stainless Steel, 1 & 0.5 in. Adapters, M4

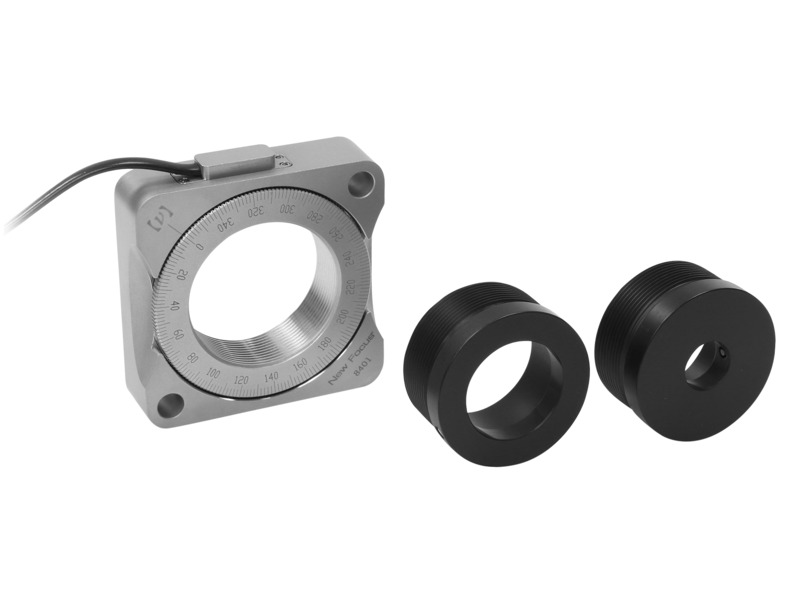

The 8401-M Picomotor Rotary Mount has a minimum incremental motion around 0.1 mrad and an overall thickness of just 0.63 in. (16.0 mm), our compact stainless-steel motorized rotary stages can be used for a number of applications, including positioning wave plates and polarizers. Each rotary stage includes adapters for mounting components with either 1 in. (25-mm) or 1/2 in. (12.5-mm) diameters. It can also hold 1.5 in. (38.1 mm) optic using two retaining rings
Resources & Downloads
Drawings And Cad
8401b-Drawing(119.5 kB, PDF) 99-8401(109.1 kB, PDF)
Literature
Picomotor FAQ(3.1 MB, PDF)
Certificates
8401-M 802401-02 RoHS3 Certificate(607.4 kB, PDF) 8401-M REACH_SVHC_241-802401-02 Certificate(452.6 kB, PDF)
Related Products
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 8742Motion Controller, Picomotor, Open-Loop, 4 Channel | |||||
 | 8742-4-KITPicomotor Controller Kit, Four-Axis | |||||
 | 8758Hand Control Pad, 875x Picomotor Controller/Drivers |
Retaining Ring for 1.5 in. Optic
Two are required for holding a 1.5 in. optic
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LP-2-RRRetaining Ring, 30.0 mm ID, 1.563-20 Thread |
