Piezo Linear Stage, Triple Divide, 0.5 in., Picomotor, 8-32 & 1/4-20

0.5 in. Travel Ball Bearing Piezo Linear Stages

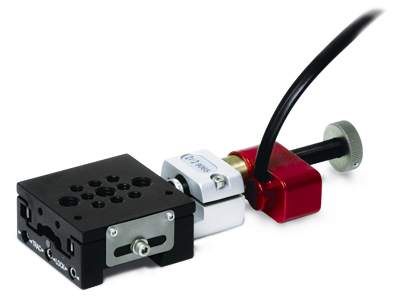

The 9065-X-P Motorized Triple Divide Translation Stage incorporates our Picomotor™ actuator in the X Axis of our Triple Divide™ translation stage to meet your 0.5 inch travel laboratory applications. All necessary clamps, brackets, and baseplates are included so that the stage can be used right out of the box. Some assembly is required. The Triple Divide translation stage system is based on the unique e⋅z⋅Trac™ rail system and delivers the stability of an integrated stage but is effortlessly adaptable and easy to use. Because of its modularity, these stages are extremely economical. 8/32 and 1/4-20 mounting threads.

Specifications

Technical Specs

Travel Range
12.7 mm
Axes of Travel
X
Motorized Axes
X
Included Actuators
Picomotor:
Maximum Speed
0.02 mm/s
Minimum Incremental Motion
<30 nm (Picomotor)
Centered Load Capacity
53 N
Bearings
Ball Bearings
Material
Aluminum

Feedback
Open Loop
Cable Length
2.1 m
Connector Type
4-Pin
Thread Type
8-32 and 1/4-20
Platform Size
39.4 x 39.4 mm
Height
19.1 mm
Operating Temperature
10 to 40°C

Travel Range
12.7 mm
Axes of Travel
X
Motorized Axes
X
Included Actuators
Picomotor:
Maximum Speed
0.02 mm/s
Minimum Incremental Motion
<30 nm (Picomotor)
Centered Load Capacity
53 N
Bearings
Ball Bearings
Material
Aluminum

Feedback
Open Loop
Cable Length
2.1 m
Connector Type
4-Pin
Thread Type
8-32 and 1/4-20
Platform Size
39.4 x 39.4 mm
Height
19.1 mm
Operating Temperature
10 to 40°C
