0.5 in. Travel Triple-Divide™ Picomotor Piezo Linear Translation Stages

We’ve incorporated our Picomotor™ actuators with our compact Triple Divide™ translation stages to meet your laboratory applications. The Triple Divide motorized translation stage system is based on the unique e•z•trac™ rail system and delivers the stability of an integrated stage but is effortlessly adaptable and easy to use. Because of its modularity, these stages are extremely economical.

12.7 mm travel with 39.4 x 39.4 mm mounting platform
Flexible and adaptable modular design
Aluminum single-row ball-bearing design
Easy-to-use, flexible controllers and drivers

See All Features

Show Filters:

Showing 22 of 22 total products

Compatibility:

Description	Compatibility	Motorized Axes	Micrometer Axes	Thread Type	Price

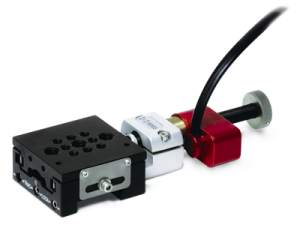

9065-X-PPiezo Linear Stage, Triple Divide, 0.5 in., Picomotor, 8-32 & 1/4-20	IMPERIAL	X		8-32 and 1/4-20	$1,083
9065-XY-PNXY Linear Stage, Triple Divide, 0.5 in, X Pico, Y Micro, 8-32, 1/4-20	IMPERIAL	X	Y	8-32 and 1/4-20	$1,593

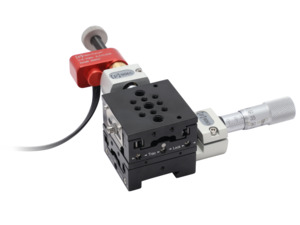

9065-XY-NPXY Linear Stage, Triple Divide, 0.5 in, Y Pico, X Micro, 8-32, 1/4-20	IMPERIAL	Y	X	8-32 and 1/4-20	$1,593

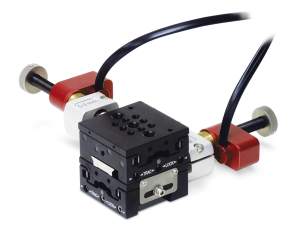

9065-XY-PPPiezo XY Linear Stage, Triple Divide, 0.5 in., Picomotor, 8-32, 1/4-20	IMPERIAL	X, Y		8-32 and 1/4-20	$2,076

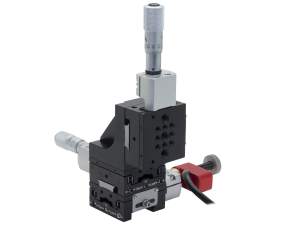

9065-XYZ-PNNXYZ Linear Stage, Triple Divide, 0.5 in, X Pico, YZ Micro, 8-32, 1/4-20	IMPERIAL	X	Y, Z	8-32 and 1/4-20	$2,046

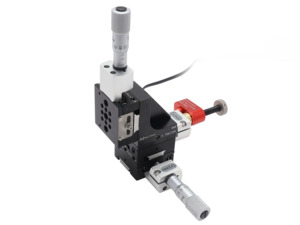

9065-XYZ-NPNXYZ Linear Stage, Triple Divide, 0.5 in, Y Pico, XZ Micro, 8-32, 1/4-20	IMPERIAL	Y	X, Z	8-32 and 1/4-20	$2,046
9065-XYZ-NNPXYZ Linear Stage, Triple Divide, 0.5 in, Z Pico, XY Micro, 8-32, 1/4-20	IMPERIAL	Z	X, Y	8-32 and 1/4-20	$2,046

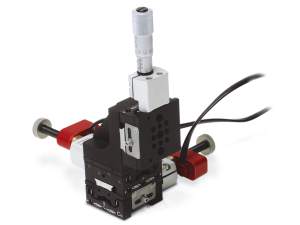

9065-XYZ-PPNXYZ Linear Stage, Triple Divide, 0.5 in, XY Pico, Z Micro, 8-32, 1/4-20	IMPERIAL	X, Y	Z	8-32 and 1/4-20	$2,648

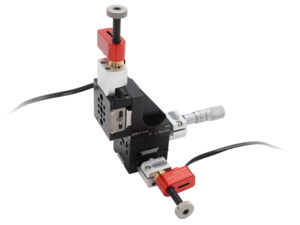

9065-XYZ-PNPXYZ Linear Stage, Triple Divide, 0.5 in ,XZ Pico, Y Micro, 8-32, 1/4-20	IMPERIAL	X, Z	Y	8-32 and 1/4-20	$2,648

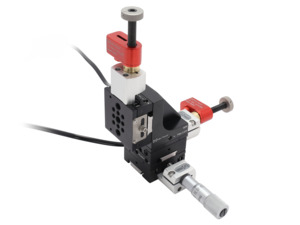

9065-XYZ-NPPXYZ Linear Stage, Triple Divide, 0.5 in, YZ Pico, X Micro, 8-32, 1/4-20	IMPERIAL	Y, Z	X	8-32 and 1/4-20	$2,648

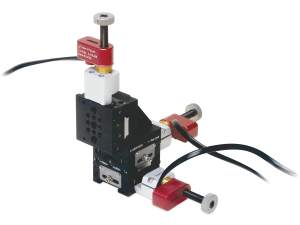

9065-XYZ-PPPPiezo XYZ Linear Stage, Triple Divide, 0.5 in., Picomotor, 8-32, 1/4-20	IMPERIAL	X, Y, Z		8-32 and 1/4-20	$4,072
9065-X-P-MPiezo Linear Stage, Triple Divide, 12.7 mm, Picomotor, M4, M6	METRIC	X		M4 and M6	$1,083
9065-XY-PN-MXY Linear Stage, Triple Divide, 12.7 mm, X Pico, Y Micro, M4, M6	METRIC	X	Y	M4 and M6	$1,453
9065-XY-NP-MXY Linear Stage, Triple Divide, 12.7 mm, Y Pico, X Micro, M4, M6	METRIC	Y	X	M4 and M6	$1,453
9065-XY-PP-MPiezo XY Linear Stage, Triple Divide, 12.7 mm, Picomotor, M4, M6	METRIC	X, Y		M4 and M6	$2,010
9065-XYZ-PNN-MXYZ Linear Stage, Triple Divide, 12.7 mm, X Pico, YZ Micro, M4, M6	METRIC	X	Y, Z	M4 and M6	$2,046
9065-XYZ-NPN-MXYZ Linear Stage, Triple Divide, 12.7 mm, Y Pico, XZ Micro, M4, M6	METRIC	Y	X, Z	M4 and M6	$2,046

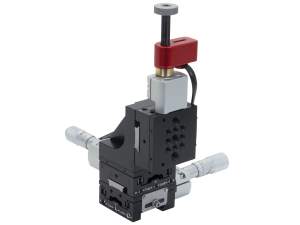

9065-XYZ-NNP-MXYZ Linear Stage, Triple Divide, 12.7 mm, Z Pico, XY Micro, M4, M6	METRIC	Z	X, Y	M4 and M6	$2,046
9065-XYZ-PPN-MXYZ Linear Stage, Triple Divide, 12.7 mm, XY Pico, Z Micro, M4, M6	METRIC	X, Y	Z	M4 and M6	$2,648
9065-XYZ-PNP-MXYZ Linear Stage, Triple Divide, 12.7 mm, XZ Pico, Y Micro, M4, M6	METRIC	X, Z	Y	M4 and M6	$2,648
9065-XYZ-NPP-MXYZ Linear Stage, Triple Divide, 12.7 mm, YZ Pico, X Micro, M4, M6	METRIC	Y, Z	X	M4 and M6	$2,648
9065-XYZ-PPP-MPiezo XYZ Linear Stage, Triple Divide, 12.7 mm, Picomotor, M4, M6	METRIC	X, Y, Z		M4 and M6	$3,401

Show Less

Notes:

The included picomotor is model 8302.
The included micrometer is model 9352.

Specifications

Travel Range
0.5 in. (12.7 mm)
Minimum Incremental Motion
<30 nm (Picomotor Axes)
Centered Load Capacity
12 lb (53 N)
Bearings
Single-Row Ball Bearings
Material
Aluminum

Feedback
Open Loop
Cable Length
2.1 m
Connector Type
4-Pin
Platform Size
39.4 x 39.4 mm
Operating Temperature
10 to 40 °C

Features

Flexible, Adaptable, and Modular

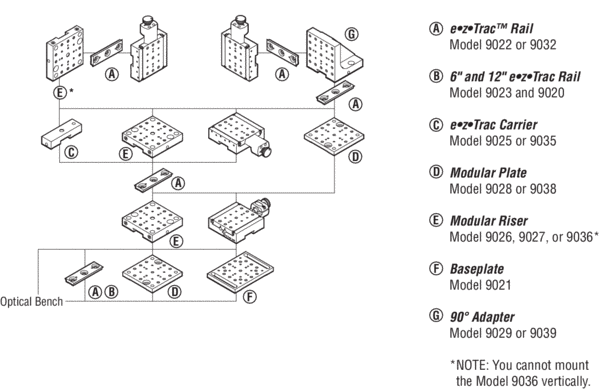

The Triple-Divide linear stages feature our e•z•Trac system. With the e•z•Trac system, you can mount stages to each other, mount accessories to the stage, and mount stages to the optical table. Precision holes drilled into the track and coordinated holes in the stages ensure orthogonality to better than ±1 mrad for every configuration. They also allow for quick coarse positioning perpendicular to the stage’s fine-positioning axis.

Stainless Steel Ball-bearings for Smooth Travel

The stages are based on a ball-bearing design and made of anodized aluminum with hardened and polished stainless-steel races. They provide smooth and accurate positioning over the full travel range with 0.5 μm resolution and a straight-line accuracy of 2.5 μm.

< 30 nm Resolution

Our Picomotor actuators have a step size of < 30 nm, allowing for very small, controlled movements of the gothic-arch bearing linear stage.

Easy-to-Use, Flexible Controllers and Drivers

Our Open-Loop Picomotor controllers and drivers are modular. You can daisy-chain up to 31 drivers together with four channels each, so you can have a network of up to 124 standard Picomotor actuators. You have two interface options with the controller system: hand pad or computer, both providing plug-and-play use. Alternatively, you may choose to use our TTL/Analog Picomotor driver.

Aluminum Stage Construction with Single-Row Ball-Bearings

The stages themselves are based on a single-row ball bearing design and made of anodized aluminum with hardened and polished stainless-steel races. They provide smooth and accurate positioning over the full travel range with 0.5-µm resolution and a straight-line accuracy of 2.5 µm.

Set-and-Forget Long-Term Stability

The Picomotor actuator moves when voltage is applied to the piezo, changing its length and in turn moving the jaws which turn the screw. When no power is applied, the actuator does not move. You can feel confident that your linear translation stage will stay put, even when you power down your system.

Accessories

Picomotor Open Loop Controllers

Description	Compatibility	Price
8703Picomotor Driver Module, Single-Axis, TTL/Analog	UNIVERSAL	$981
8712Picomotor Driver, Single-Axis, PCB-Mountable	UNIVERSAL	$876
8742Motion Controller, Picomotor, Open-Loop, 4 Channel	UNIVERSAL	$1,341
8742-4-KITPicomotor Controller Kit, Four-Axis	UNIVERSAL	$1,426
8742-8-KITPicomotor Controller Kit, Eight-Axis	UNIVERSAL	$2,731
8742-12-KITPicomotor Controller Kit, Twelve-Axis	UNIVERSAL	$4,117

Compatible Angle Brackets and Riser Plates

Description	Compatibility	Price
903990 Degree Adapter, Pint-Sized, ezTrac™ Rail	IMPERIAL	$137
9039-M90 Degree Adapter, Pint-Sized, ezTrac Optical Rail, Metric	METRIC	$137
9036Riser Carrier, Pint-Sized, 0.5 in. Height, 8-32 and 1/4-20 Threads	IMPERIAL	$87
9036-MRiser Carrier, Pint-Sized, 0.5 in. Height, M4 and M6 Threads	METRIC	$87
9038Spacer Plate, 9065 Series Stages, 8-32 & 1/4-20	IMPERIAL	$58
9038-MSpacer Plate, 9065-M Series Stages, M4 & M6	METRIC	$58
