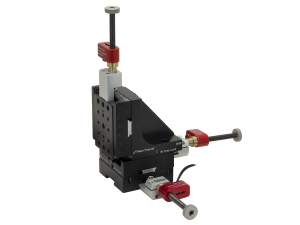

1.0 in. Travel Triple-Divide™ Picomotor Peizo Linear Translation Stages

We’ve incorporated our Picomotor™ actuators with our Triple Divide™ translation stages to meet your laboratory applications. The Triple Divide motorized translation stage system is based on the unique e•z•trac™ rail system and delivers the stability of an integrated stage but is effortlessly adaptable and easy to use. Because of its modularity, these stages are extremely economical.

25.4 mm travel with 63.5 x 63.5 mm mounting platform
Flexible and adaptable modular design
< 30 nm Resolution
Set-and-forget long-term stability
Easy-to-use, flexible controllers and drivers

See All Features

Show Filters:

Showing 22 of 22 total products

Compatibility:

Description	Compatibility	Motorized Axes	Micrometer Axes	Thread Type	Price
9064-X-P 1.0 in. Travel Ball Bearing Piezo Linear Stages Piezo Linear Stage, Triple Divide, 1.0 in., Picomotor, 8-32, 1/4-20	IMPERIAL	X		8-32 and 1/4-20	$1,054
9064-XY-NP 1.0 in. Travel Ball Bearing Piezo Linear Stages XY Linear Stage, Triple Divide, 1 in, Y Pico, X Micro, 8-32,1/4-20	IMPERIAL	Y	X	8-32 and 1/4-20	$1,453
9064-XY-PN 1.0 in. Travel Ball Bearing Piezo Linear Stages XY Linear Stage, Triple Divide, 1 in, X Pico, Y Micro, 8-32,1/4-20	IMPERIAL	X	Y	8-32 and 1/4-20	$1,453
9064-XY-PP 1.0 in. Travel Ball Bearing Piezo Linear Stages Piezo XY Linear Stage, Triple Divide, 1 in, Picomotor, 8-32, 1/4-20	IMPERIAL	X, Y		8-32 and 1/4-20	$2,031
9064-XYZ-NNP 1.0 in. Travel Ball Bearing Piezo Linear Stages XYZ Linear Stage, Triple Divide, 1 in, Z Pico, XY Micro, 8-32, 1/4-20	IMPERIAL	Z	X, Y	8-32 and 1/4-20	$2,046
9064-XYZ-NPN 1.0 in. Travel Ball Bearing Piezo Linear Stages XYZ Linear Stage, Triple Divide, 1 in, Y Pico, XZ Micro, 8-32, 1/4-20	IMPERIAL	Y	X, Z	8-32 and 1/4-20	$2,090
9064-XYZ-NPP 1.0 in. Travel Ball Bearing Piezo Linear Stages XYZ Linear Stage, Triple Divide, 1 in, YZ Pico, X Micro ,8-32, 1/4-20	IMPERIAL	Y, Z	X	8-32 and 1/4-20	$2,648
9064-XYZ-PNN 1.0 in. Travel Ball Bearing Piezo Linear Stages XYZ Linear Stage, Triple Divide, 1 in, X Pico, YZ Micro, 8-32, 1/4-20	IMPERIAL	X	Y, Z	8-32 and 1/4-20	$2,046
9064-XYZ-PNP 1.0 in. Travel Ball Bearing Piezo Linear Stages XYZ Linear Stage, Triple Divide, 1 in, XZ Pico, Y Micro, 8-32, 1/4-20	IMPERIAL	X, Z	Y	8-32 and 1/4-20	$2,648
9064-XYZ-PPN 1.0 in. Travel Ball Bearing Piezo Linear Stages XYZ Linear Stage, Triple Divide, 1 in, XY Pico, Z Micro,8-32,1/4-20	IMPERIAL	X, Y	Z	8-32 and 1/4-20	$2,648

Show All

Features

Flexible, Adaptable, and Modular

The Triple-Divide linear stages feature our e•z•Trac system. With the e•z•Trac system, you can mount stages to each other, mount accessories to the stage, and mount stages to the optical table. Precision holes drilled into the track and coordinated holes in the stages ensure orthogonality to better than ±1 mrad for every configuration. They also allow for quick coarse positioning perpendicular to the stage’s fine-positioning axis.

Stainless Steel Ball-bearings for Smooth Travel

The stages are based on a ball-bearing design and made of anodized aluminum with hardened and polished stainless-steel races. They provide smooth and accurate positioning over the full travel range with 0.5 μm resolution and a straight-line accuracy of 2.5 μm.

< 30 nm Resolution

Our Picomotor actuators have a step size of < 30 nm, allowing for very small, controlled movements of the gothic-arch bearing linear stage.

Easy-to-Use, Flexible Controllers and Drivers

Our Open-Loop Picomotor controllers and drivers are modular. You can daisy-chain up to 31 drivers together with four channels each, so you can have a network of up to 124 standard Picomotor actuators. You have two interface options with the controller system: hand pad or computer, both providing plug-and-play use. Alternatively, you may choose to use our TTL/Analog Picomotor driver.

Aluminum Stage Construction with Single-Row Ball-Bearings

The stages themselves are based on a single-row ball bearing design and made of anodized aluminum with hardened and polished stainless-steel races. They provide smooth and accurate positioning over the full travel range with 0.5-µm resolution and a straight-line accuracy of 2.5 µm.

Set-and-Forget Long-Term Stability

The Picomotor actuator moves when voltage is applied to the piezo, changing its length and in turn moving the jaws which turn the screw. When no power is applied, the actuator does not move. You can feel confident that your linear translation stage will stay put, even when you power down your system.

Accessories

Picomotor Open Loop Controllers

Description	Compatibility	Price
8703 Picomotor Driver Module, Single-Axis, TTL/Analog	UNIVERSAL	$981
8712 Picomotor Driver, Single-Axis, PCB-Mountable	UNIVERSAL	$876
8742 Motion Controller, Picomotor, Open-Loop, 4 Channel	UNIVERSAL	$1,341
8742-12-KIT Picomotor Controller Kit, Twelve-Axis	UNIVERSAL	$4,117
8742-4-KIT Picomotor Controller Kit, Four-Axis	UNIVERSAL	$1,426
8742-8-KIT Picomotor Controller Kit, Eight-Axis	UNIVERSAL	$2,731

Compatible Angle Brackets, Riser Plates and Base Plates

Description	Compatibility	Price
9021-M Baseplate, 9064-M Series Stages, M4 & M6	METRIC	$93
9021NF Baseplate, 9064 Series Stages, 8-32 & 1/4-20	IMPERIAL	$93
9026 Riser Carrier, 0.5 in. Height, 8-32 and 1/4-20	IMPERIAL	$93
9026-M Riser Carrier, 0.5 in. Height, M4 and M6	METRIC	$93
9027 Riser Carrier, 1.0 in. Height, 8-32 and 1/4-20	IMPERIAL	$106
9027-M Riser Carrier, 1.0 in. Height, M4 and M6	METRIC	$106
9028 Spacer Plate, 9064 Series Stages, 8-32 & 1/4-20	IMPERIAL	$76
9028-M Spacer Plate, 9064-M Series Stages, M4 & M6	METRIC	$76
9029 90° Carrier, ezTrac Optical Rail	IMPERIAL	$137
9029-M 90 Degree Adapter, ezTrac Optical Rail, Metric	METRIC	$137
