Compact Triple-Divide™ Rail Mount Aluminum Linear Stages

The Pint-Sized Rail Mount Translation Stages maintain the performance of their larger Triple-Divide™ version at half the dimensions. They optimize stability that is comparable to standard, less flexible stages, as well as modularity with the e•z•Trac™ rail system for quick reconfiguration and stacking.

Ultra compact linear stages with unique modular rail mounting
Fastest configurability of single or multi-axis positioning for compact stages
Rails included and provide 10X better orthogonality between stages than screw mounting
Actuators are not included so that they can be chosen to accommodate individual requirements

See All Features

Show Filters:

Showing 10 of 10 total products

Compatibility:

Description	Compatibility	Axes of Travel	Maximum Stage Travel	Thread Type	Price

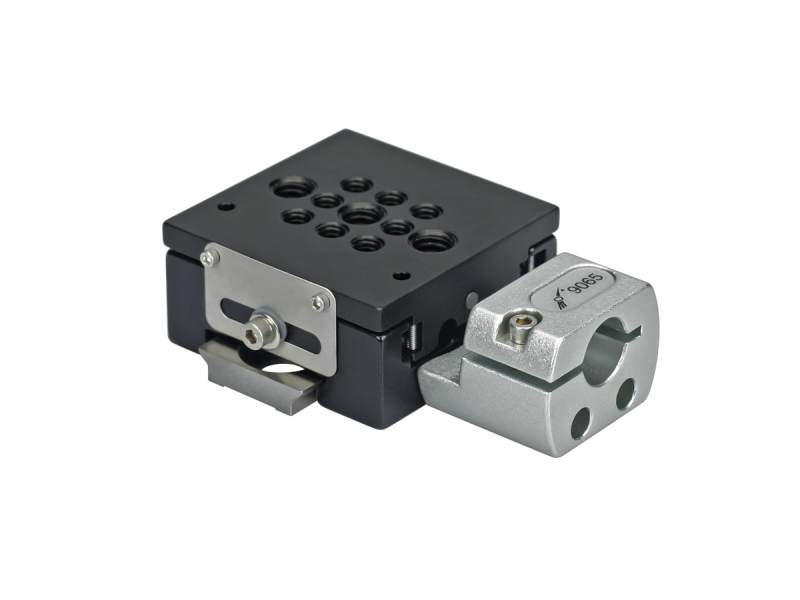

9065-XManual Linear Stage, Triple Divide, 0.55 in. Travel, 8-32 & 1/4-20	IMPERIAL	X	14 mm	8-32 and 1/4-20	$339

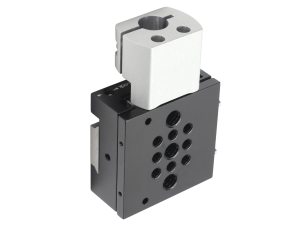

9065-ZVertical Linear Stage, Triple Divide, 0.55 in. Travel, 8-32 & 1/4-20	IMPERIAL	Z	14 mm	8-32 and 1/4-20	$339
9065-XYXY Linear Stage, Triple Divide, 0.55 in. Travel, 8-32 & 1/4-20	IMPERIAL	X, Y	14 mm	8-32 and 1/4-20	$653
9065-XZXZ Linear Stage, Triple Divide, 0.55 in. Travel, 8-32 & 1/4-20	IMPERIAL	X, Z	14 mm	8-32 and 1/4-20	$821
9065-XYZXYZ Linear Stage, Triple Divide, 0.55 in. Travel, 8-32 & 1/4-20	IMPERIAL	X, Y, Z	14 mm	8-32 and 1/4-20	$1,145
9065-X-MManual Linear Stage, Triple Divide, 14 mm Travel, M4 & M6	METRIC	X	14 mm	M4 and M6	$339
9065-Z-MVertical Linear Stage, Triple Divide, 14 mm Travel, M4 & M6	METRIC	Z	14 mm	M4 and M6	$339
9065-XY-MXY Linear Stage, Triple Divide, 14 mm Travel, M4 & M6	METRIC	X, Y	14 mm	M4 and M6	$653
9065M-XZXZ Linear Stage, Triple Divide, 14 mm Travel, M4 & M6	METRIC	X, Z	14 mm	M4 and M6	$821
9065-XYZ-MXYZ Linear Stage, Triple Divide, 14 mm Travel, M4 & M6	METRIC	X, Y, Z	14 mm	M4 and M6	$1,145

Notes:

Actuators are not included. Please see specifications for recommended actuators.
Triple-Divide stages are also available pre-configured with actuators.

Specifications

Recommended Actuators

Models	9065 Triple-Divide™ Rack Mount Stages
Recommended Adjustment Screw	9301
Recommended Vernier Micrometer	SM-13
Recommended Lockable Micrometer	DM-13L
Recommended Piezo Actuator	8301NF

Maximum Stage Travel
14 mm
Centered Normal Load Capacity
53 N
Straight Line Accuracy
<3 µm

Material
Aluminum
Bearings
Single-Row Ball Bearings
Thread Type
8-32 and 1/4-20
M4 and M6 (M- models)

Features

Effortless Mounting and Stacking with Modular Rail Design

Stages are quickly and easily mounted, both to each other and optical systems, by sliding along and locking to the separate dovetail-like, stainless steel e•z•Trac™ rail underneath (and orthogonal to) the translating surface. Because the e•z•Trac™ rails mount independently to the full stage, exchanging and reconfiguring Triple-Divide™ translation stages is trivial and easily integrable into most optical systems. The rail feature also makes them ideal for integration into scalable and OEM systems.

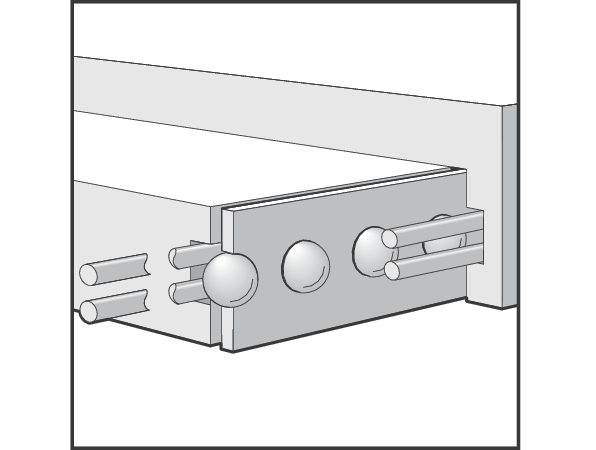

Stainless Steel Ball-bearings for Smooth Travel

The stages are based on a ball-bearing design and made of anodized aluminum with hardened and polished stainless-steel races. They provide smooth and accurate positioning over the full travel range with 0.5 μm resolution and a straight-line accuracy of 2.5 μm.

Orthogonal e•z•Trac™ Rail Mounting

E•z•Trac™ rails are included with each 9065 stage allowing you to table mount or combine this stage with any of the accessories from our e•z•Trac™ 19 mm Surface Mount Optical Rails to build the translation system you want.These Pint-Size Rail Mount stages mount in the same manner as the larger 9064 Triple-Divide™ versions, locking securely in place along the e•z•Trac™ rail with a cone-point setscrew designed to match the rail's sloped surface. The orthogonal mounting of the e•z•Trac™ rails to surfaces and the stages to the rail provides optimal resistance to torque, ensuring orthogonality of <2 mrad over the full 0.55 in (14 mm) travel for any configuration.

Pint-size Stages with Modularity of the Triple-Divide Series

These miniature translation stages maintain the performance of their larger Triple-Divide™ version but measure just 1.5-in. x 1.5-in. x 0.75-in., This compact line is based upon the same e•z•Trac™ carrier system as our larger Triple-Divide translation stages, giving you the option to mix and match, also with the larger versions, and customize to your system.

Reconfigurable for Left and Right-Handed

The XY and XYZ stages can be easily configured for mirror-image right and left-hand versions for more flexibility in how you lay out your experiment on the table. Simply loosen the set screws which hold the railing in place and revers the position of the bottom stage so that it is facing the opposite of the original direction.

Multiple Configurations

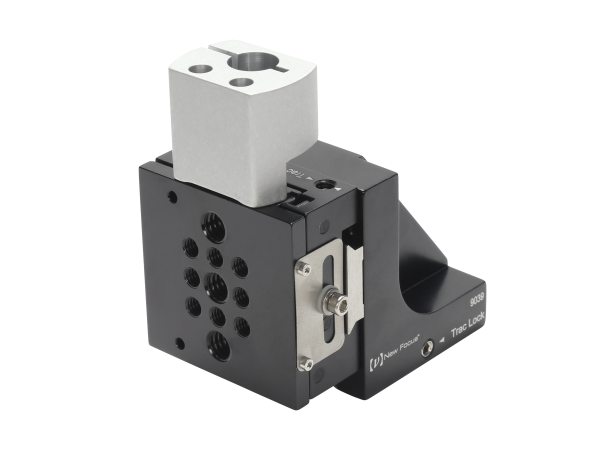

The stages are available in the same X, Z, XY, XZ, and XYZ configurations as the larger Triple-Divide™ 9064 Series Stages and still include both 8-32 (M4) and 1/4-20 (M6) threaded holes for mounting components. Please note that the actuator clamping mount attaches to stage body in a different way for 9065-X and 9065-Z single axis stages. Use 9065-Z stage with angle bracket to build the Z configuration.

Accessories

Compatible Actuators (Not Included)

Description	Compatibility	Price

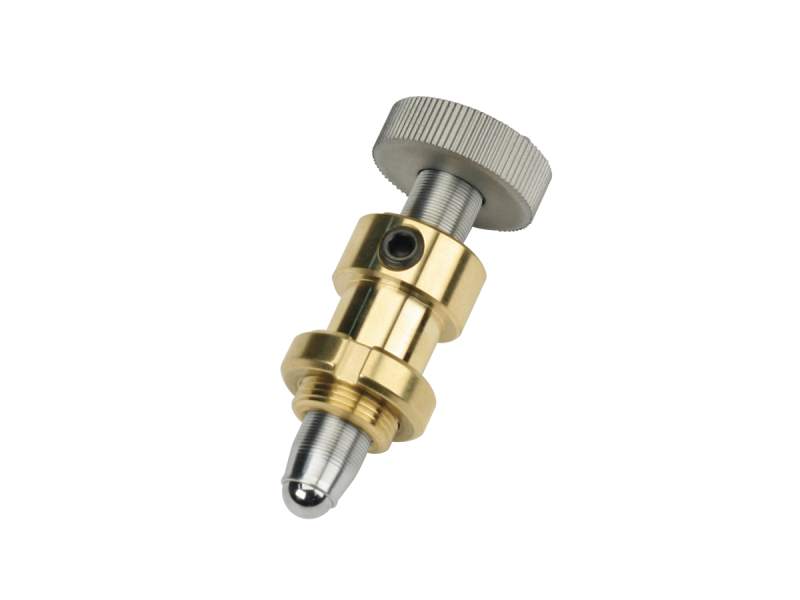

9301Adjustment Screw, Knob, Braked, 12.7 mm Travel, Ball Tip, 1/4-80	UNIVERSAL	$44
SM-13Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI	UNIVERSAL	$103
DM-13LLockable Differential Micrometer, 13 mm Coarse, 0.2 mm Fine, 11 lb.	UNIVERSAL	$726

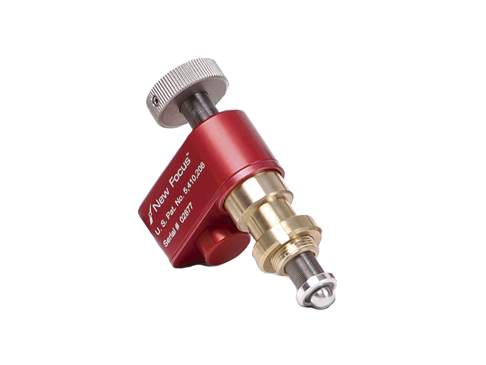

8301NFPicomotor Piezo Linear Actuator, 0.5 in. Travel, 30 nm Resolution, 9.5 mm Shank	UNIVERSAL	$736

Compatible Angle Brackets and Riser Plates

Description	Compatibility	Price

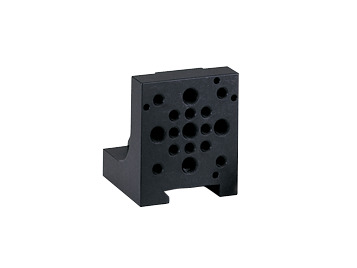

903990 Degree Adapter, Pint-Sized, ezTrac™ Rail	IMPERIAL	$137
9039-M90 Degree Adapter, Pint-Sized, ezTrac Optical Rail, Metric	METRIC	$137
9036Riser Carrier, Pint-Sized, 0.5 in. Height, 8-32 and 1/4-20 Threads	IMPERIAL	$87
9036-MRiser Carrier, Pint-Sized, 0.5 in. Height, M4 and M6 Threads	METRIC	$87

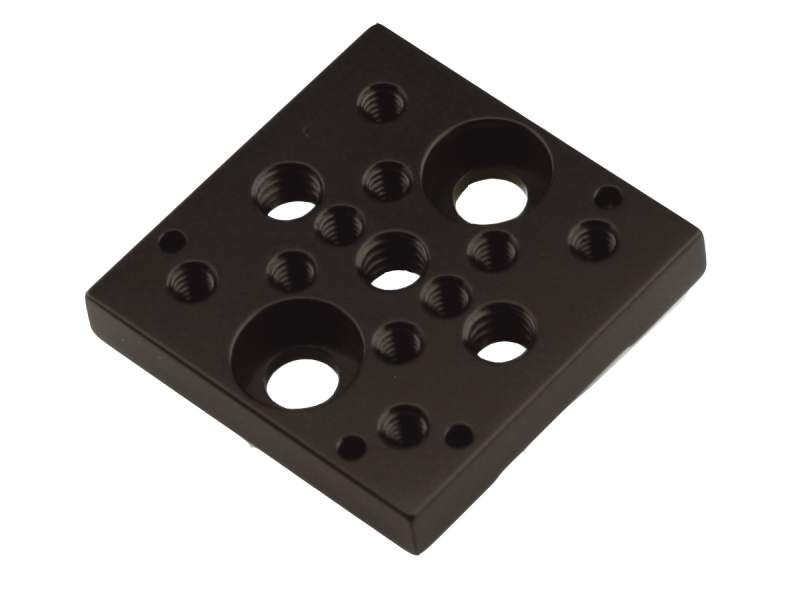

9038Spacer Plate, 9065 Series Stages, 8-32 & 1/4-20	IMPERIAL	$58
9038-MSpacer Plate, 9065-M Series Stages, M4 & M6	METRIC	$58
