XZ Linear Stage, Triple Divide, 0.55 in. Travel, 8-32 & 1/4-20

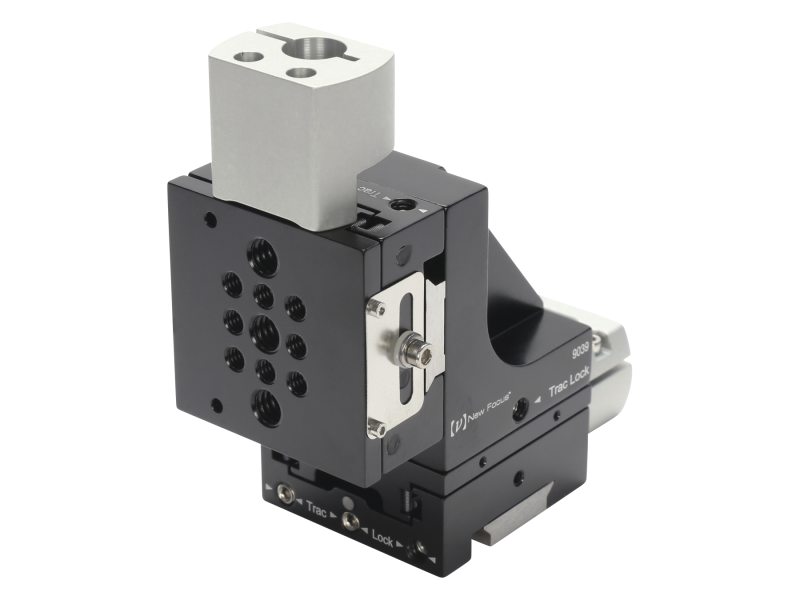

The 9065-XZ Pint-Sized Triple Divide XZ Axis Translation Stage is ideal for applications where you are short on space but don't want to compromise on performance. At just 1.5 in. by 1.5 in. by 0.75 in., these little ball-bearing stages packs the same performance as our full-sized Triple-Divide stage line. Fully compatible with our larger Triple-Divide stage line and accessories, you get 0.55 inch XZ travel with 0.5 μm resolution and better than <3 μm straight-line accuracy. 8-32 and 1/4-20 threaded mounting holes. NOTE: Actuators are not included with these stages. We recommend using our 9301 Adjustment Screws or our SM-13 micrometers. For even more precise control, try our 8301 Picomotor™ actuator.
Resources & Downloads
Manuals
9064 Translation Stages User Manual(1.4 MB, PDF)
Drawings And Cad
9065xza-Drawing(148.5 kB, PDF) 20029065xz_rev(121.6 kB, PDF)
