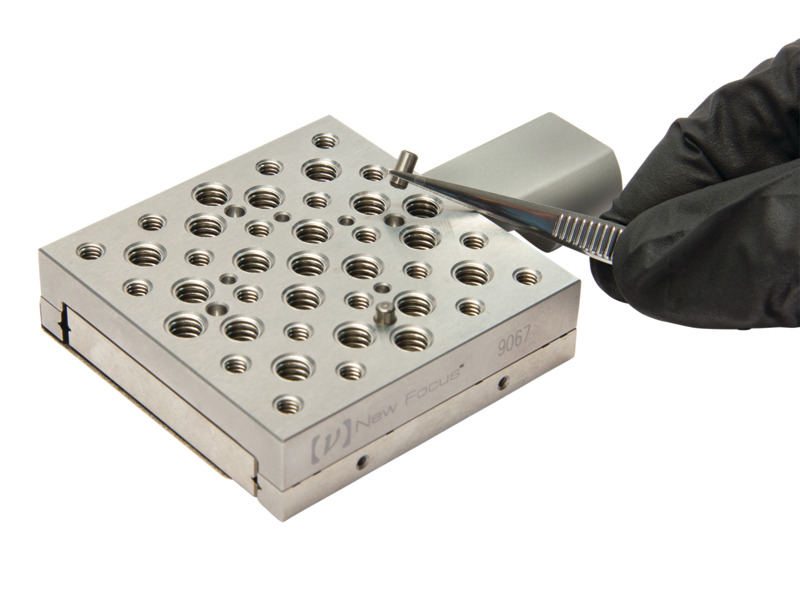

Linear Stage, 1.0 in. Travel, 8-32 and 1/4-20, Vacuum, No Baseplate

The 9067-COM-V Vacuum Compatible Stainless Steel Commercial Stages is a 1.0 inch (25.4 mm) travel linear translation stage designed to fit directly into your system. This stage has a reduced profile by eliminating the mounting plates. 9067 series stages feature a generous pattern of twenty 8-32 and twenty one 1/4-20 threaded mounting holes. Actuators are not included. We recommend the 8302-V vacuum compatible picomotor actuator for vacuum applications.

Specifications

Technical Specs

Stage Type
Low Profile
Axes of Travel
X
Maximum Stage Travel
25.4 mm
Centered Normal Load Capacity
222 N
Vertical Axial Load Capacity
80 N
Angular Deviation
150 µrad

Bearings
Crossed-Roller Bearings
Thread Type
8-32 and 1/4-20
Vacuum Compatibility
10^-6 hPa
Recommended Adjustment Screw
AJS100-1H-V6
Recommended Piezo Actuator
8302-V

Stage Type
Low Profile
Axes of Travel
X
Maximum Stage Travel
25.4 mm
Centered Normal Load Capacity
222 N
Vertical Axial Load Capacity
80 N
Angular Deviation
150 µrad

Bearings
Crossed-Roller Bearings
Thread Type
8-32 and 1/4-20
Vacuum Compatibility
10^-6 hPa
Recommended Adjustment Screw
AJS100-1H-V6
Recommended Piezo Actuator
8302-V

Resources & Downloads

3D Product Models

2D Product Drawings

9067-COMb-Drawing.pdf(131.3 kB, PDF)
9067-COM.pdf(101.2 kB, PDF)
