XY Linear Stage, Crossed-Roller, 25.4 mm Travel, M4, M6

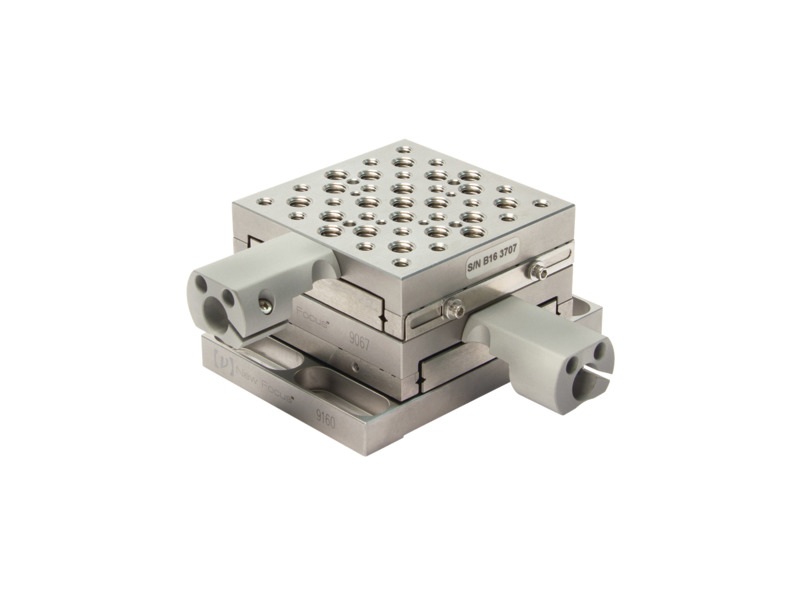

The 9067-XY-M Stainless Steel Crossed-Roller Translation Stage is a 1.0 inch (25.4 mm) travel linear translation stage that provides low-profile, high-stability, linear translation for systems that do not need vertical adjustment. Micrometers are not included. 9067 series stages feature a generous pattern of twenty M4 and twenty one M6 threaded mounting holes. Actuators are not included. Please see specifications for recommended actuators.
Resources & Downloads
Drawings And Cad
9067-XY(121.4 kB, PDF) 9067-XYa-Drawing.pdf(185.8 kB, PDF)
