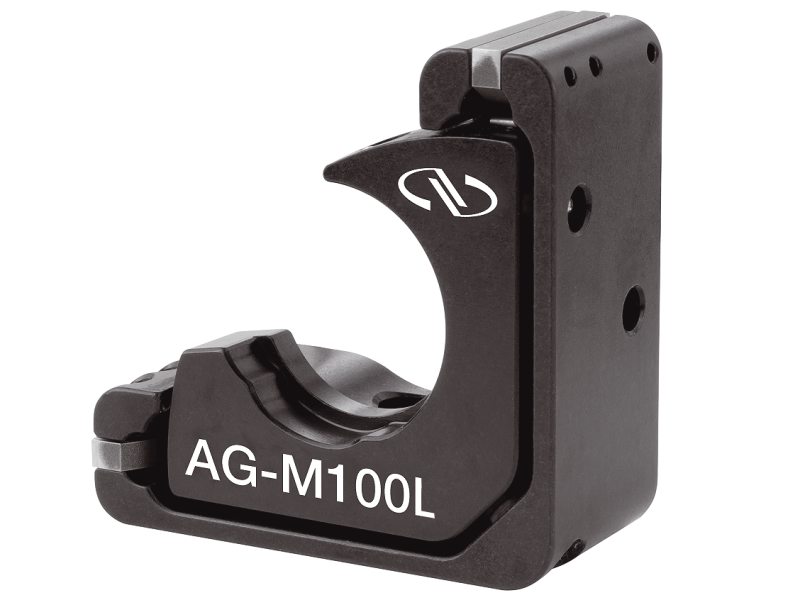

Piezo Optical Mount, Compact, 1.0 in. Optics, Limit Switches

The AG-M100L 1 inch (25.4 mm) Agilis™ Optical Mount features Newport’s new, proprietary, non-resonant piezo direct motors. These highly integrated motors are directly coupled to the moving platen. When idle, spring forces lock the mirror’s position for true set and forget long term stability. Agilis mounts have a faster adjustment speed than alternative screw driven designs. In contrast to ultrasonic motors, the Agilis non-resonant motor concept makes small adjustments more predictable with its 50 nm incremental motion capability, ideal for ultra-sensitive optical alignments. Use with either the Agilis AG-UC2 handheld, AG-UC8 or AG-UC8PC controllers.

Outstanding Adjustment Sensitivity

The Agilis proprietary piezo technology provides 50 nm incremental motion capability, translating to resolutions as small as 1 µrad, making them ideal for ultra-sensitive alignments and optical adjustments.

Limit Switch for Repeatability

The () and () mounts include precision electrical limit switches for repeatable absolute positioning without the need for encoder feedback. This is accomplished by measuring the average step size from the left to the right travel limits and vice-versa. Under constant conditions, the step size is fairly repeatable. Additionally, these limit switches serve as a safety feature.

Set-and-Forget Long-Term Stability

The Agilis piezo motors are directly coupled to the moving optics holder for robust and predictable performance. When idle, the motor spring force locks the mirror in place, providing true set and forget stability. Agilis mounts also have a fast adjustment speed and are free of issues associated with backlash or hysteresis.

Specifications

Technical Specs

Type
Center Mount
Optic Diameter
25.4 mm
Motorized Axes
2
Angular Range
±2°
Thread Type
8-32 (M4) CLR
Cable Length
1.2 m
Connector Type
4-Pin Mini-DIN
Mechanism
Piezo Motor

Operating Temperature
10 to 35°C
Weight
85 g
Accuracy
0.05°
Maximum Speed
0.5°/s
Sensitivity
1 µrad

Type
Center Mount
Optic Diameter
25.4 mm
Motorized Axes
2
Angular Range
±2°
Thread Type
8-32 (M4) CLR
Cable Length
1.2 m
Connector Type
4-Pin Mini-DIN
Mechanism
Piezo Motor

Operating Temperature
10 to 35°C
Weight
85 g
Accuracy
0.05°
Maximum Speed
0.5°/s
Sensitivity
1 µrad
