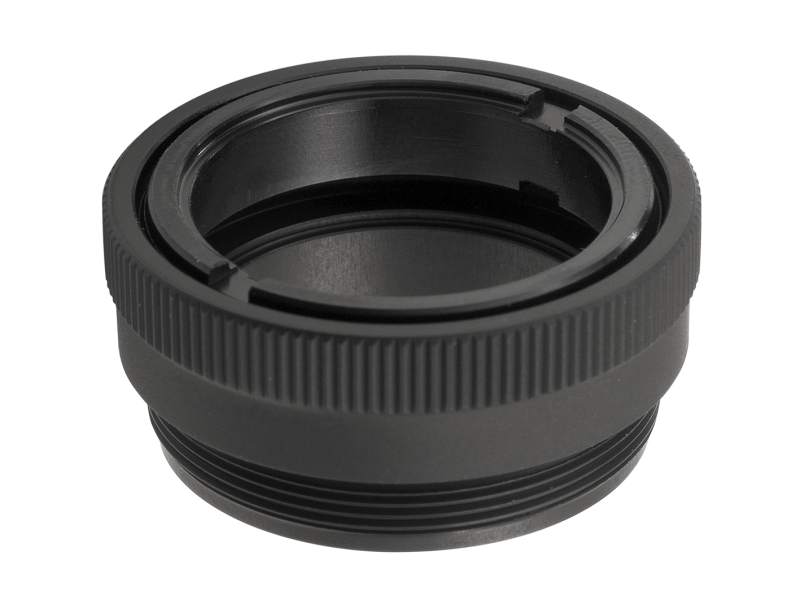

Lens Mount Barrel, 25.4 mm, M20.25 RMS Lens Mounts

The B25.4-F Barrel allows 25.4 mm diameter mirrors or lenses to be mounted to M20.25 RMS-threaded components.

Specifications

Technical Specs

Type
Lens Mount Barrel

Optic Diameter
25.4 mm

Type
Lens Mount Barrel

Optic Diameter
25.4 mm

Resources & Downloads

3D Product Models

2D Product Drawings

BA25-4-F-S(76.7 kB, PDF)

Other

B25.4-F_RoHS2021.pdf(284.2 kB, PDF)
