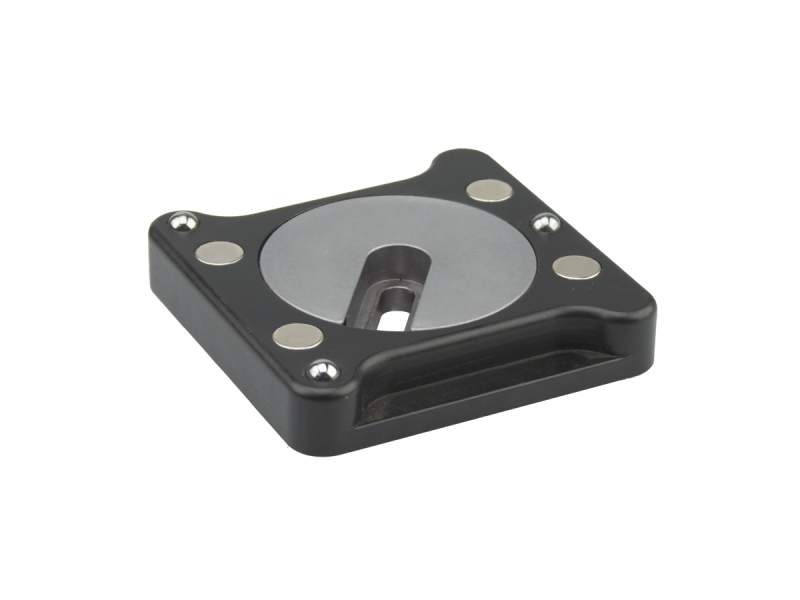

Bottom Plate, For (M-)BK-3A Kinematic Base

Kinematic Bases

Kinematic Bases

The BK-3A-B Bottom Plate is a spare for (M-)BK-3A Kinematic Bases.

Specifications

Technical Specs

Type
Kinematic Base Bottom Plate
Base size
76.2 x 76.2 mm

Material
Aluminum

Type
Kinematic Base Bottom Plate
Base size
76.2 x 76.2 mm

Material
Aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

BK-3A-S(194.4 kB, PDF)

Other

BK-3A-B RoHS Certificate(277.9 kB, PDF)
BK-3A-B_RoHS2021.pdf(681 kB, PDF)
