Top Plate, For BK-3A Kinematic Base

Kinematic Bases

Kinematic Bases

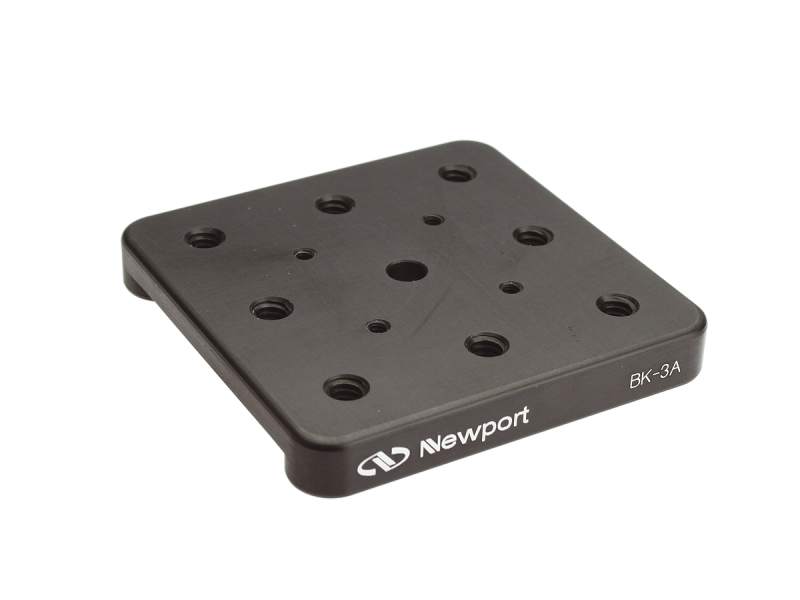

The BK-3A-T Top Plate is a spare for BK-3A Kinematic Bases.

Specifications

Technical Specs

Type
Kinematic Base Top Plate
Base size
76.2 x 76.2 mm

Material
Aluminum

Type
Kinematic Base Top Plate
Base size
76.2 x 76.2 mm

Material
Aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

BK-3A-S(194.4 kB, PDF)

Other

BK-3A-T RoHS Certificate(277.5 kB, PDF)
BK-3A-T_RoHS2021.pdf(680.4 kB, PDF)
