Optical Post Holder, Slotted Magnetic Base, 3 in. Height, 0.5 in. Posts
Optical Post Holder, Slotted Magnetic Base, 3 in. Height, 0.5 in. Posts
Model: BPH-3Z
Product Series Overview

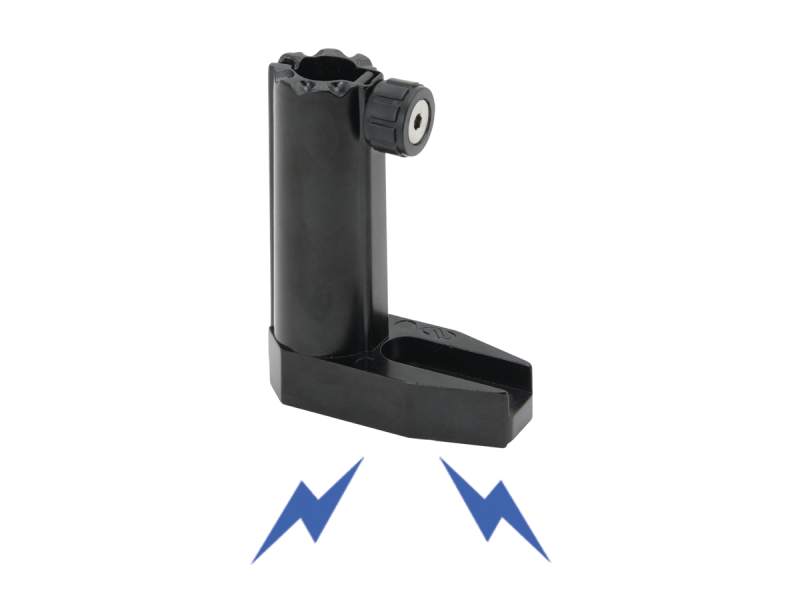

Non-Bridging Slotted-Base Optical Post HoldersThe BPH-3Z Magnetic-Base Post Holder is a patent pending re-invention of the classical optical post holder, combining a slim slotted base with a unique post holder. The top surface of the post holder has a series of kinematic indentations which, when used with the BPH-C-5 Post Collar, provide repeatable rotational alignment and indexing at 45° increments. The base features both angled and straight reference surfaces allowing edge-to-edge placement of adjacent post holders and, with the addition of the BPH-XB-5 Base Extender, can convert to a double-slotted base. The flat bottom also makes mounting more versatile and improves stability.
Resources & Downloads
Drawings And Cad
BPH Drawing(134.7 kB, PDF)
Other
BPH-3Z RoHS Certificate(279.4 kB, PDF) BPH-3Z_RoHS2021.pdf(684.7 kB, PDF)
Related Products
Supporting
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SA2-11Optical Breadboard Plate, Solid Aluminum, 12 x 12 in., 1 in. 1/4-20 Grid |
