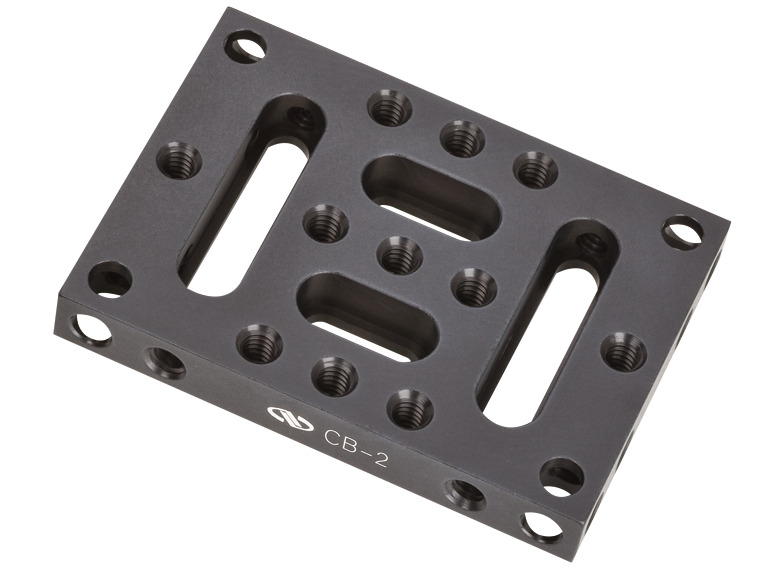

Construction Plates, 63.5 x 88.9 mm, 2 pieces, M6

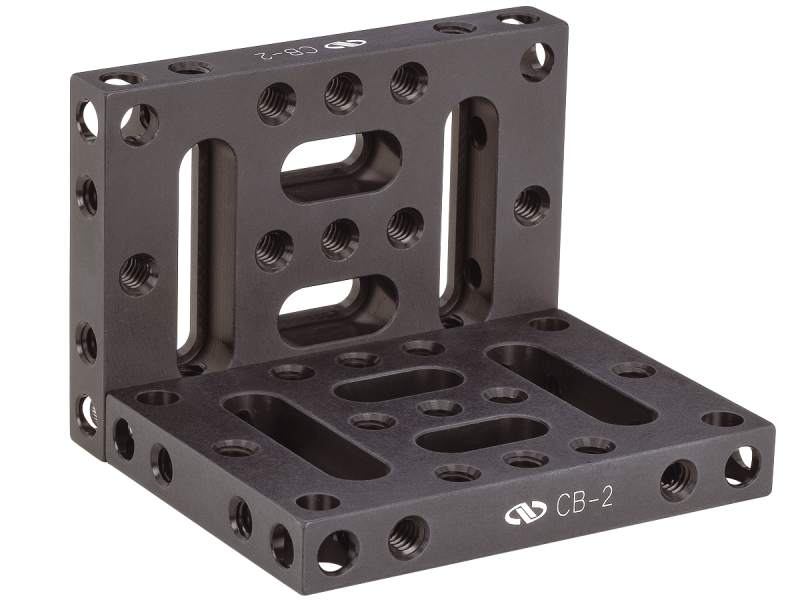

The CB-2-M Construction Base is a two-piece design that can be used as a bracket or a base. The base has plenty of tapped holes on all the surfaces as well as clearance holes and slots for M6 screws. Combine all three elements to construct rigid optical assemblies quickly and easily.

Specifications

Technical Specs

Type
Construction Base

Type
Construction Base

Resources & Downloads

3D Product Models

2D Product Drawings

CB-2 DWG-S(227 kB, PDF)

Other

CB-2-M RoHS Certificate(278.2 kB, PDF)
CB-2-M_RoHS2021.pdf(681.3 kB, PDF)
