Carriage Lock, UMR5.5

Carriage Locks for Linear Stages

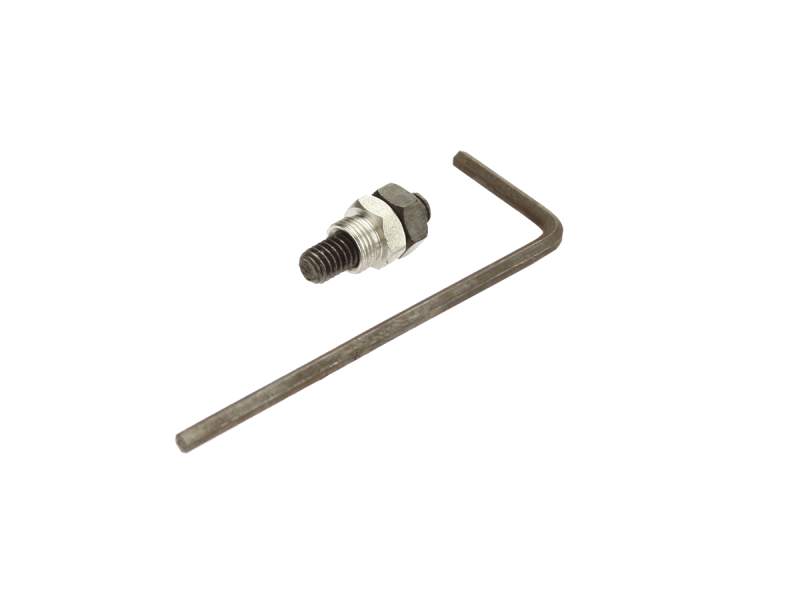

The CL6-5 carriage locking kit includes a screw that mounts in the (M-)UMR5.5 stage body opposite the micrometer. Two carriage locks are required for fixed positioning.
