UV-Si Photodiode, Transimpedance Amplifier, 200-1100 nm, 10 x 10 mm, NIST
Model: DET-L-SIUV-R-C
Product Series Overview

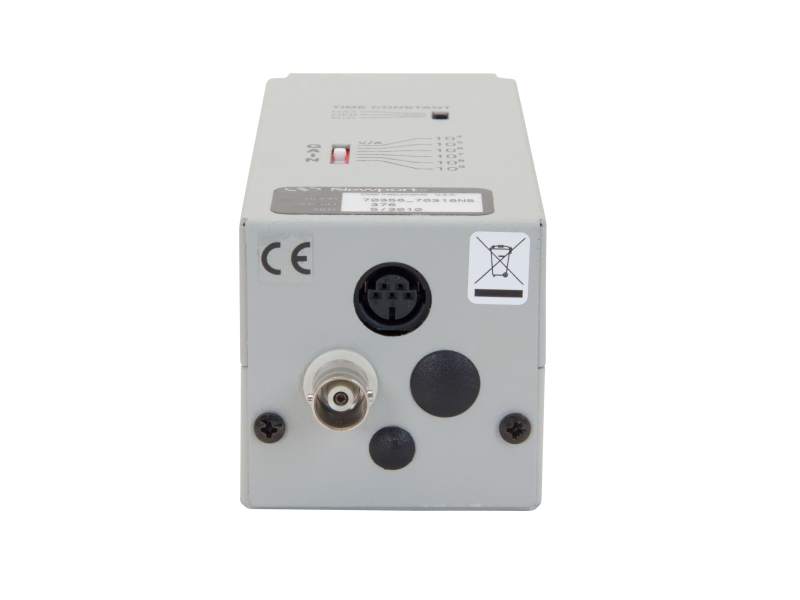

Flange Mount Photodiode SensorsThe DET-L-SIUV-R-C Silicon Photovoltaic Detector for LIDA™ houses an unbiased, photovoltaic mode operated photodiode coupled to a trans impedance amplifier. The internal 10 mm x 10 mm active area, UV-enhanced Silicon photodiode and low-noise trans impedance amplifier provides for excellent light detection performance over 200-1100 nm, with the trans impedance amplifier providing a gain of 104 V/A to 109 V/A over 0.01 Hz-100 kHz frequencies. This detector includes a NIST traceable calibration, making it suitable for absolute measurements over its entire sensitivity range.
This flange mounted photodiode sensor provides a BNC connector for signal output. The 1.5 inch female flange simplifies the integration to one of our many Oriel light sources and monochromators.
Resources & Downloads
3D Product Models
2D Product Drawings
Oriel DET-L Amplified Detectors User's Manual(1.3 MB, PDF) DET-L-x-T-C Drawing(1.4 MB, PDF)
Other
MKS EU ROHS3 - 71582 and DET-L Series.pdf(266 kB, PDF)
