Radiometry System, Lock-In Digital Amplifier, 100 to 120 VAC
Radiometry System, Lock-In Digital Amplifier, 100 to 120 VAC
Model: LIDA-SRS-KIT-120V
Product Series Overview

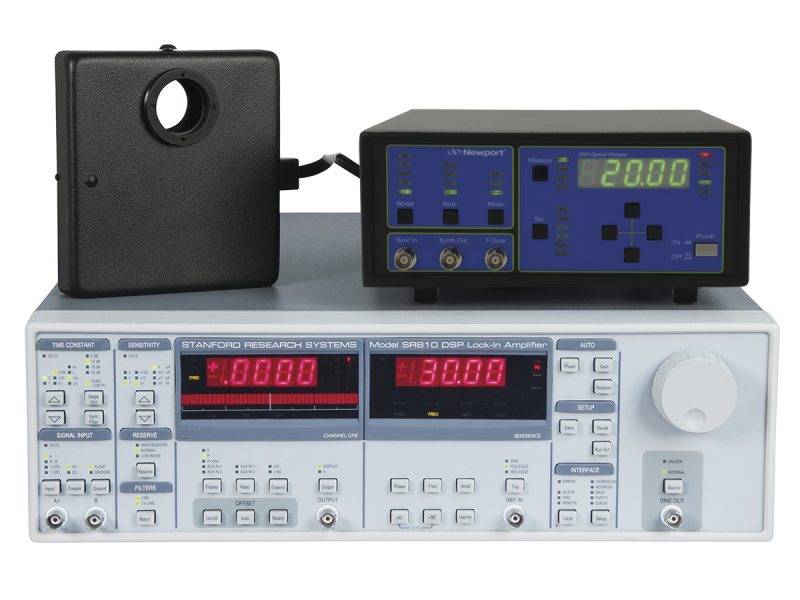

LIDA-SRS-KIT Radiometry SystemThe LIDA-SRS-KIT-120V is a Lock-In Digital Amplifier (LIDA) system. It extracts very small signals obscured by noise sources many times larger by locking into the specific modulation frequency of your desired signal. The system removes background signals through phase sensitive detection. A broad selection of calibrated detectors with built-in preamplifiers is available for use with this system, allowing optical measurements to be made from UV to IR.

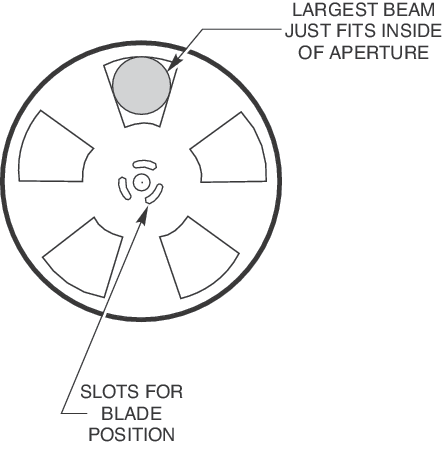

The chopper system provides an optical chopper controller with tunable frequencies, and an enclosed chopper head with four chopper wheels of varying aperture selections.
The system includes:
- SR810 lock-in digital amplifier pre-configured for 120 VAC
- Latest version of Oriel TracQ Basic radiometry software
- 75160NF Optical Chopper System
- 51-10-010 GPIB/USB adapter for readout/control with a computer via IEEE-488 interface
- 70016 BNC cable, 6 ft.
Resources & Downloads
3D Product Models
2D Product Drawings
Oriel 75160NF Chopper Controller Quick Start Guide(344.5 kB, PDF) 75150-1050-366(496.4 kB, PDF) 75160NF_CTRL_SIDE(89 kB, PDF) 75160NF_CTRL_FRONT(189.9 kB, PDF) 75160NF_CTRL_REAR(195.2 kB, PDF) Oriel LIDA-SRS-KIT Radiometry System User Manual(2.1 MB, PDF) 75160NF Chopper Software and API v1.0.1(5.8 MB, ZIP) Oriel LIDA-SRS-KIT Radiometry System Datasheet(663.5 kB, PDF) Oriel TracQ Basic Software Quick Start Guide(617.7 kB, PDF)
