HeNe Laser Adapter, SM1 and C-Mount Thread

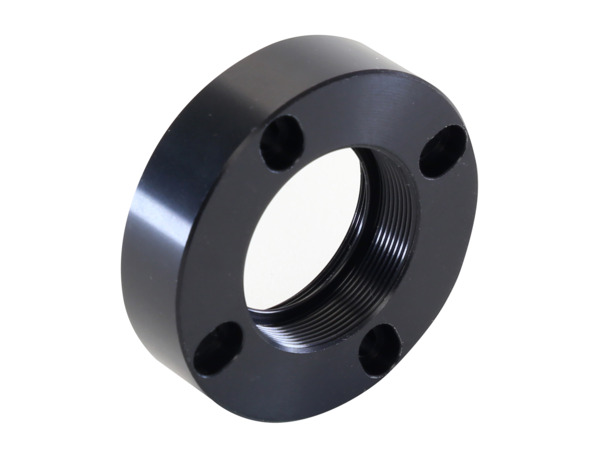

The HENE-ADPT Helium Neon laser adapter is compatible with most commercially available HeNe laser heads from major manufacturers, including Newport. This adapter has the SM1 (1.035"-40) internal thread on one side and the C-Mount (1.00"-32) internal thread on the other side, both popular in optical and photonics industry, on each side. Includes four 4-40" screws for mountng on the laser head. It replaces R-30646R adapter.

Specifications

Technical Specs

Resources & Downloads

3D Product Models

2D Product Drawings

HENE-ADPT Dimensional Drawing(91.9 kB, PDF)

Related Products

Supporting

Description	Compatibility
HeNe Laser, Green, 543 nm, 2.0 mW, Random Polarization, CE	UNIVERSAL	Learn More
HeNe Laser, Red, 633 nm, 687 MHz, 2.0 mW, 500:1 Polarization, CE	UNIVERSAL	Learn More
HeNe Laser, Red, 633 nm, 438 MHz, 5.0 mW, 500:1 Polarization, CE	UNIVERSAL	Learn More
HeNe Laser, Red, 633 nm, 438 MHz, 5.0 mW, Random Polarization, CE	UNIVERSAL	Learn More
HeNe Laser, Yellow, 594 nm, 2.0 mW, 500:1 Polarization, CE	UNIVERSAL	Learn More

Compatible

Description	Compatibility
<b>819M-B-11-1.0</b> C-Mount Adapter, Male, 1.0 in. Port, 819C and 819D Spheres	UNIVERSAL	Learn More
Lens Tube, 1 inch LT Series, 1 inch length	UNIVERSAL	Learn More
Focusing Lens Tube, 1 inch diameter lenses	UNIVERSAL	Learn More
Laser Beam Expander, 10x, 1.5 mm Entrance, 12 mm Exit, 2 m to Infinity	UNIVERSAL	Learn More
Laser Beam Expander, 30x, 1.5 mm Entrance, 32 mm Exit, 30 m to Infinity	UNIVERSAL	Learn More
