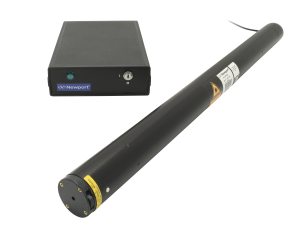

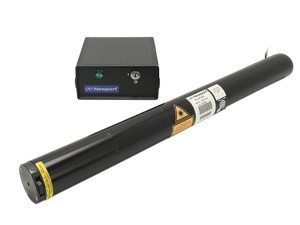

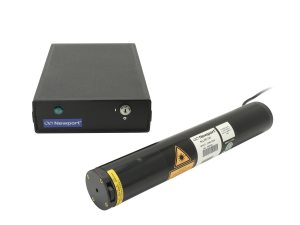

Red Helium-Neon (HeNe) Lasers

Our red Helium Neon laser product family offers TEM₀₀ mode structures at 633 nm. All are available in either linear or random polarization. With an emphasis on satisfying a variety of applications and budgetary needs, we offer a variety of 633 nm wavelength He Ne laser power levels ranging from 0.5 mW to 35 mW.

633 nm wavelength power from 0.5 - 35 mW
Polarized or randomly polarized output
Optimized cavity mirror performance and quality
Excellent power and thermal stability due to robust tube design
Low beam pointing drift (after 20 minute warm-up)
CE compliant

See All Features

Show Filters:

Showing 35 of 35 total products

Compatibility:

Description	Compatibility	Polarization	Output Power	Longitudinal Mode	Beam Diameter (1/e<sup>2</sup>)	Noise	Price
N-LHP-111 Red HeNe Lasers - 633 nm HeNe Laser, Red, 633 nm, 687 MHz, 1.0 mW, 500:1 Polarization, CE	UNIVERSAL	500:1	1.0 mW	687 MHz	0.59 mm	<2.8% P-P	$1,700
N-LHP-121 Red HeNe Lasers - 633 nm HeNe Laser, Red, 633 nm, 687 MHz, 2.0 mW, 500:1 Polarization, CE	UNIVERSAL	500:1	2.0 mW	687 MHz	0.59 mm	<2.8% P-P	$1,800
N-LHP-131 Red HeNe Lasers - 633 nm HeNe Laser, Red, 633 nm, 793 MHz, 1.5 mW, 500:1 Polarization, CE	UNIVERSAL	500:1	1.5 mW	793 MHz	0.58 mm	<2.8% P-P	$1,790
N-LHP-151 Red HeNe Lasers - 633 nm HeNe Laser, Red, 633 nm, 438 MHz, 5.0 mW, 500:1 Polarization, CE	UNIVERSAL	500:1	5.0 mW	438 MHz	0.80 mm	<2.8% P-P	$1,800
N-LHP-213 Red HeNe Lasers - 633 nm HeNe Laser, Red, 633 nm, 1063 MHz, 0.5 mW, 500:1 Polarization, CE	UNIVERSAL	500:1	0.5 mW	1063 MHz	0.46 mm	<2.8% P-P	$1,360
N-LHP-605 Red HeNe Lasers - 633 nm HeNe Laser, Red, 633 nm, 1039 MHz, 0.5 mW, 500:1 Polarization, CE	UNIVERSAL	500:1	0.5 mW	1039 MHz	0.50 mm	<2.8% P-P	$1,650
N-LHP-845 Red HeNe Lasers - 633 nm HeNe Laser, Red, 633 nm, 257 MHz, 20.0 mW, 500:1 Polarization, CE	UNIVERSAL	Polarized	20 mW	257 MHz	0.96mm	<2.0% P-P	$3,560
N-LHP-925 Red HeNe Lasers - 633 nm HeNe Laser, Red, 633 nm, 257 MHz, 7.0 mW, 500:1 Polarization, CE	UNIVERSAL	500:1	17 mW	257 MHz	0.96 mm	<2.0 % P-P	$3,380
N-LHP-928 Red HeNe Lasers - 633 nm HeNe Laser, Red, 633 nm, 165 MHz, 35 mW, 500:1 Polarization, 110-240V	UNIVERSAL	500:1	35 mW	165 MHz	1.23 mm	<1.0%	$6,580
N-LHP-928J Red HeNe Lasers - 633 nm HeNe Laser, Red, 633 nm, 165 MHz, 35 mW, 500:1 Polarization, 100V	UNIVERSAL	500:1	35 mW	165 MHz	1.23 mm	<1.0%

Show All

Features

633 nm Output Power from 0.5 mW to 35 mW

Our 35 mW Helium Neon laser is the most powerful commercial HeNe lasers available. We also offer a wide variety of lower power, and lower cost HeNe lasers to suit a wide variety of applications. The power supply is included with the red HeNe laser head.

HeNe Laser Mounting

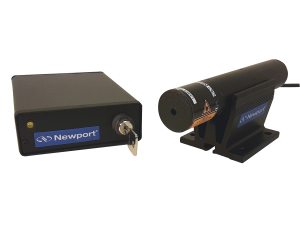

ULM Series cylindrical laser mounts attach to 340-RC and 370-RC rod clamps and provide a convenient way to attach these HeNe lasers to Newport stages, tables, or breadboards. For N-LHP and N-LHR series, please mount the laser at either end of the body indicated by shading.

Random or 500:1 Polarization

We have models whose outputs are either polarized or randomly polarized. Due to the random fluctuation of the polarization state of the beam, it is not recommended to use a polarizer with a random polarization laser for applications where polarized light is required. The laser with the polarized output has a vertical polarization direction, when the shutter control is shown at the top.

Optimized Cavity Mirror Performance

Utilizing enhanced designs and superior optical components these lasers deliver unsurpassed operational stability and lifetimes. The mirror quality and performances are optimized to result in the highest quality HeNe lasers available in the market. These high-performance lasers are supported by a one-year warranty and are available off-the-shelf.

HeNe Laser Advantages

HeNe Lasers use a mixture of Helium and Neon gas as the gain medium excited by an electrical discharge. Helium Neon gas lasers are based on a mature and well understood technology that offers a cost effective laser source with fundamental Gaussian beam quality, and ease of use. HeNe lasers offer a stable optical output over lifetimes greater than 20,000 hours and are insensitive to optical feedback.

Applications

Laser Alignment
Metrology
Particle Measurement
Velocimetry
Flow Cytometry
Confocal microscopy

Accessories

HeNe Laser Mounts and Accessories

Description	Compatibility	Price
HENE-ADPT HeNe Laser Adapter, SM1 and C-Mount Thread	UNIVERSAL	$90
ULM Cylindrical Laser Mount, 1.0-1.75 in. Diameter, Fixed	UNIVERSAL	$140
ULM-TILT Cylindrical Laser Mount, 1.0-1.75 in., High-Resolution AJS Adjusters	UNIVERSAL	$372
ULM-TILT-M Cylindrical Laser Mount, 1.0-1.75 in. Diameter, SM-13 Micrometers	UNIVERSAL	$506
