HeNe Laser, Red, 633 nm, 165 MHz, 35 mW, 500:1 Polarization, 100V
Model: N-LHP-928J
Product Series Overview

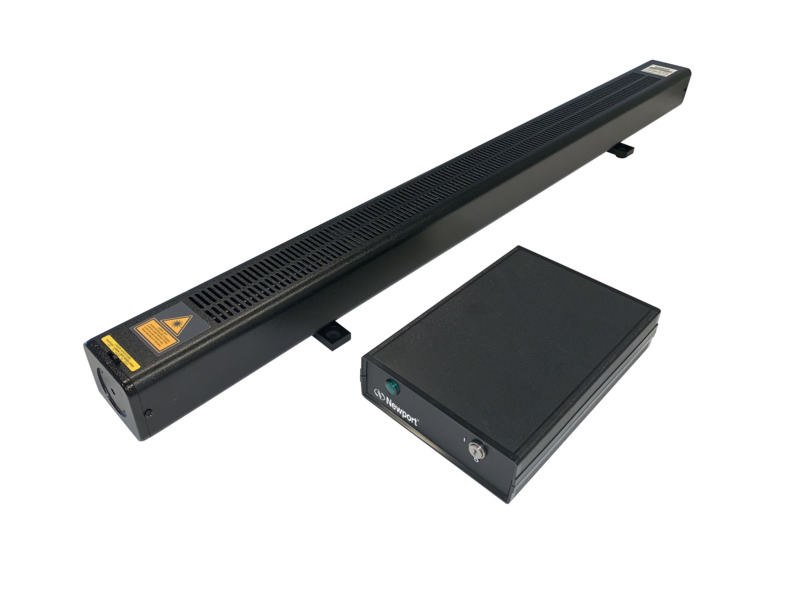

Red HeNe Lasers - 633 nmThe N-LHP-928J Red HeNe Laser generates a 500:1 linearly polarized output of 35.0 mW (minimum) at 633 nm. Longitudinal mode spacing is approximately 165 MHz with the spectral bandwidth being approximately 1400 MHz (FWHM). This CE compliant, IEC Class 3B red HeNe laser offers TEM00 mode at 633 nm. The power supply is included and it is suitable for use in Japan (100 VAC / 50Hz). A spare and replacement laser head and power supply can be purchased seperately off-line. The laser head model is N-LHP-928J-H.
HeNe Laser Mounting
ULM Series cylindrical laser mounts attach to 340-RC and 370-RC rod clamps and provide a convenient way to attach these HeNe lasers to Newport stages, tables, or breadboards. For N-LHP and N-LHR series, please mount the laser at either end of the body indicated by shading.
Random or 500:1 Polarization
We have models whose outputs are either polarized or randomly polarized. Due to the random fluctuation of the polarization state of the beam, it is not recommended to use a polarizer with a random polarization laser for applications where polarized light is required. The laser with the polarized output has a vertical polarization direction, when the shutter control is shown at the top.
Optimized Cavity Mirror Performance
HeNe Laser Advantages
Resources & Downloads
3D Product Models
2D Product Drawings
N-LHP-928J rev 4_20_1 Spec Sheet.pdf(340.5 kB, PDF) 35 mW 100 V Helium Neon Laser System Manual(787.8 kB, PDF) HeNe Linewidth, Coherence, and Center Frequency(250.2 kB, PDF)
