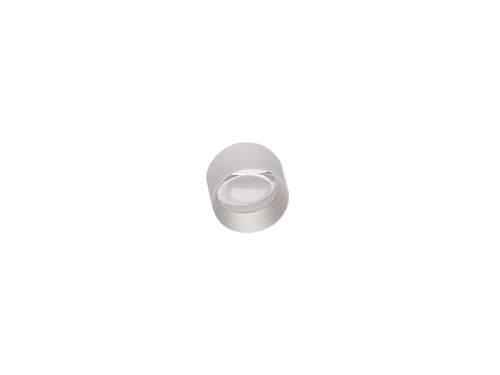

Bi-Concave Lens, N-BK7, 6.35 mm Diameter, -6.3 mm EFL, 430-700nm

The KBC013AR.14 Bi-Concave Lens is a 430 to 700 nm anti-reflection coated, 6.35 mm diameter, N-BK7 Bi-concave lens with an effective focal length of -6.3 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's N-BK7 precision bi-concave lenses are manufactured from fine annealed optical glass and are polished to tight tolerances using master test plates to ensure minimum wavefront distortion.

Specifications

Technical Specs

Lens Shape
Bi-Concave
Diameter
6.35 mm
Lens Material
N-BK7
Antireflection Coating
430-700 nm
Coating Type
Visible Multilayer
Coating Code
AR.14
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 532 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
F/#
-0.9
Effective Focal Length (EFL)
-6.3 mm
Back Focal Length (BFL)
-7.02 mm

Edge Thickness (Te)
3.75 mm
Center Thickness (Tc)
2.5 mm
Principal Plane 1 (P1)
0.77 mm
Principal Plane 2 (P2)
-0.77 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Lens Shape
Bi-Concave
Diameter
6.35 mm
Lens Material
N-BK7
Antireflection Coating
430-700 nm
Coating Type
Visible Multilayer
Coating Code
AR.14
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 532 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
F/#
-0.9
Effective Focal Length (EFL)
-6.3 mm
Back Focal Length (BFL)
-7.02 mm

Edge Thickness (Te)
3.75 mm
Center Thickness (Tc)
2.5 mm
Principal Plane 1 (P1)
0.77 mm
Principal Plane 2 (P2)
-0.77 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Resources & Downloads

3D Product Models

2D Product Drawings

BI-CONCA-VEL-S(88.6 kB, PDF)
KBC013AR.14 Zemax File(5.3 kB, ZMX)

Other

KBC013AR.14 RoHS Certificate(706.4 kB, PDF)
AR.14 Raw Data.xlsx(63.9 kB, XLSX)
