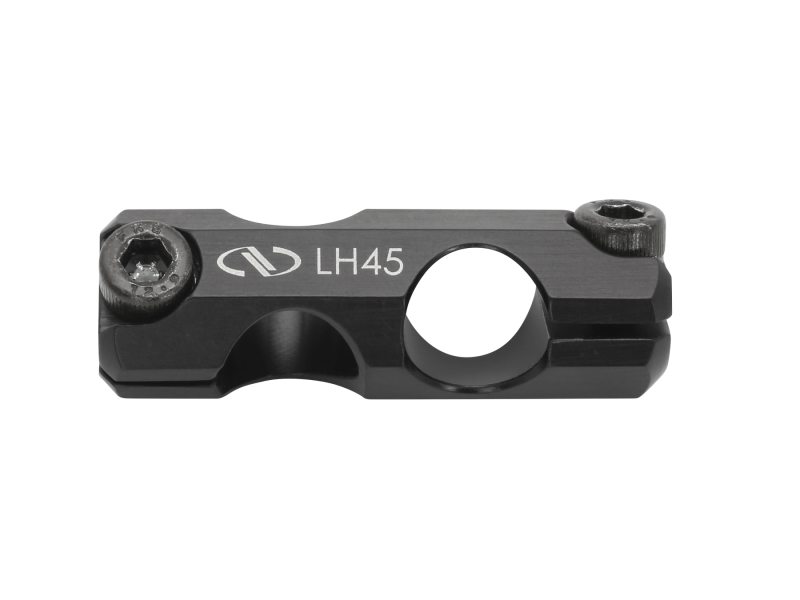

Optical Post Clamp, 45 Degree Left Hand, 0.5 in Diameter Posts

Post-Joining Angle Clamps

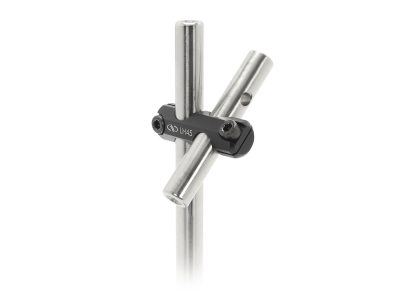

The LH45 optical post clamp is used to mount two 0.5 inch posts at a 135 degree angle. Each post is clamped with a secure flexure mechanism and both hexes can be tightened with a M4 or 5/32 tool.

Specifications

Technical Specs

Type
45-Degree Post Clamp
Post Joining Angle
45°
Post Diameter
12.7 to 12.7 mm

Pack Quantity
1

Type
45-Degree Post Clamp
Post Joining Angle
45°
Post Diameter
12.7 to 12.7 mm

Pack Quantity
1

Resources & Downloads

Drawings And Cad

LH45.pdf(35.5 kB, PDF)

Other

MKS RoHS2-2021 Flexure Post Clamp Adaptors Family.pdf(698.3 kB, PDF)
