Optical Post Clamp, 45 Degree Right hand, 0.5 in Diameter Posts
Optical Post Clamp, 45 Degree Right hand, 0.5 in Diameter Posts
Model: RH45
Product Series Overview

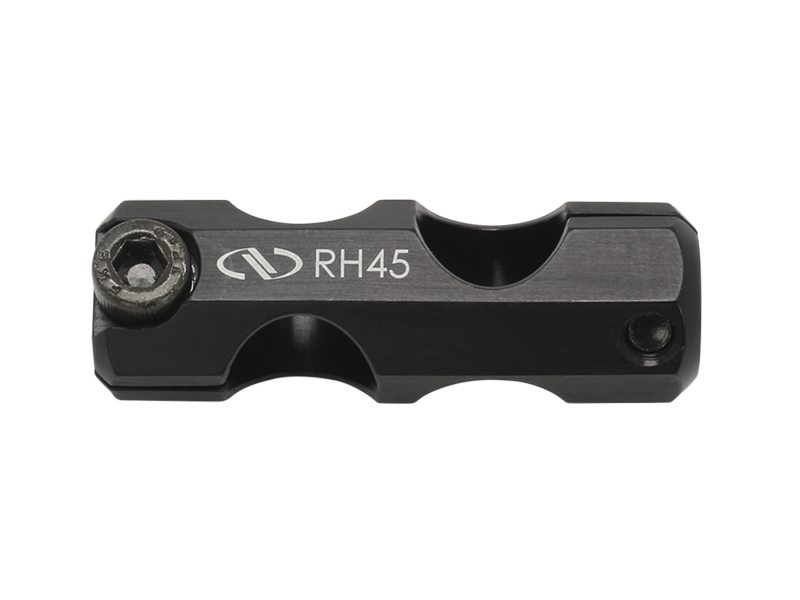

Post-Joining Angle ClampsThe RH45 optical post clamp is used to mount two 0.5 inch posts at a 45 degree angle. Each post is clamped with a secure flexure mechanism and both hexes can be tightened with a M4 or 5/32 tool. Posts and Universal Hex Knobs sold seperately.
Resources & Downloads
3D Product Models
2D Product Drawings
RH45.pdf(34.8 kB, PDF)
Other
MKS RoHS2-2021 Flexure Post Clamp Adaptors Family.pdf(698.3 kB, PDF)
