Microscope Objective Lens, Infinity Corrected, 60x, 0.85 NA, 0.3 mm WD
Microscope Objective Lens, Infinity Corrected, 60x, 0.85 NA, 0.3 mm WD
Model: LIO-60X
Product Series Overview

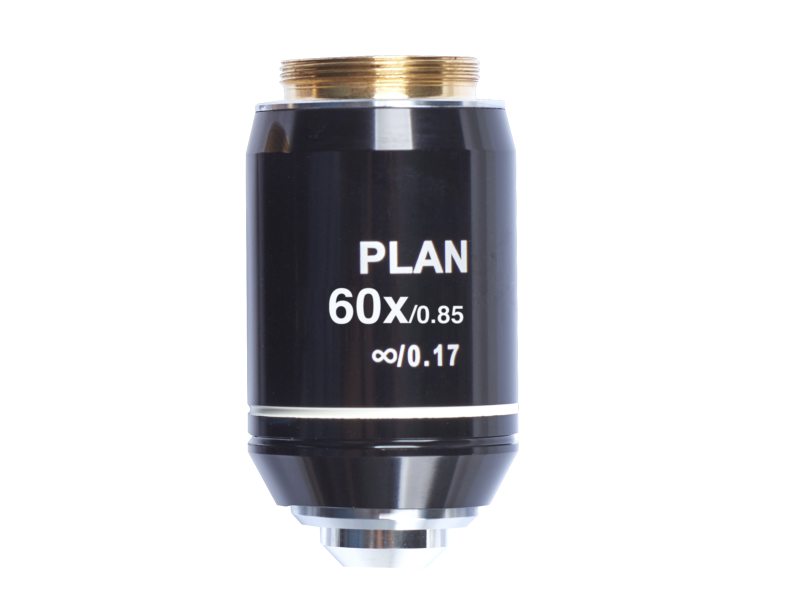

Infinite Conjugate Microscope Objective LensesThe LIO-60X Infinity Corrected Microscope Objective Lens has a 60x magnification, 0.85 numerical aperture, and 0.3 mm working distance. It uses a standard RMS thread, 0.800-36. The lenses are anti-reflection coated for the visible spectrum. This LIO-60X objective is suitable for use with standard low power visible laser wavelengths.
Resources & Downloads
Literature
LIO Microscope Objective Datasheet.pdf(1.2 MB, PDF)
Related Products
Supporting
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | UPA-OMObjective Lens Adapter, RMS Thread, 1 inch Mount | |||||
 | LT10-RMS-NThread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 0.800-36 RMS Thread | |||||
 | LH-RMSMicroscope Objective Mount, Fixed, A-LINE, 0.800-36 Thread, 8-32 | |||||
 | U100-AMirror Mount, ULTIMA®, Clear Edge, 1.0 in., No Actuators | |||||
 | SB18YZBMXY Optic Positioner, Precision, BM Micrometers | |||||
 | OC1-RMSObjective Lens Mount, Insertable, RMS Thread, Optics Cage Plus |
