Kinematic Magnetic Base, 90 lb. Holding Force, M6 Threads

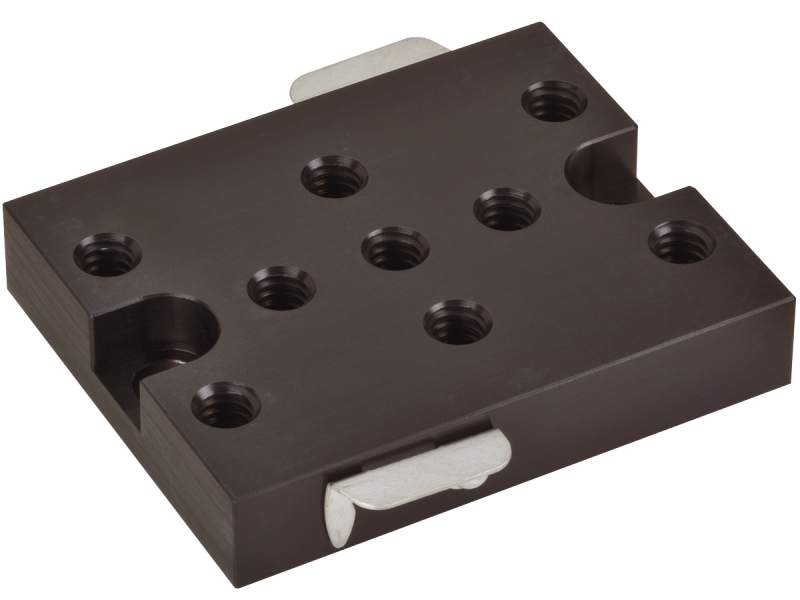

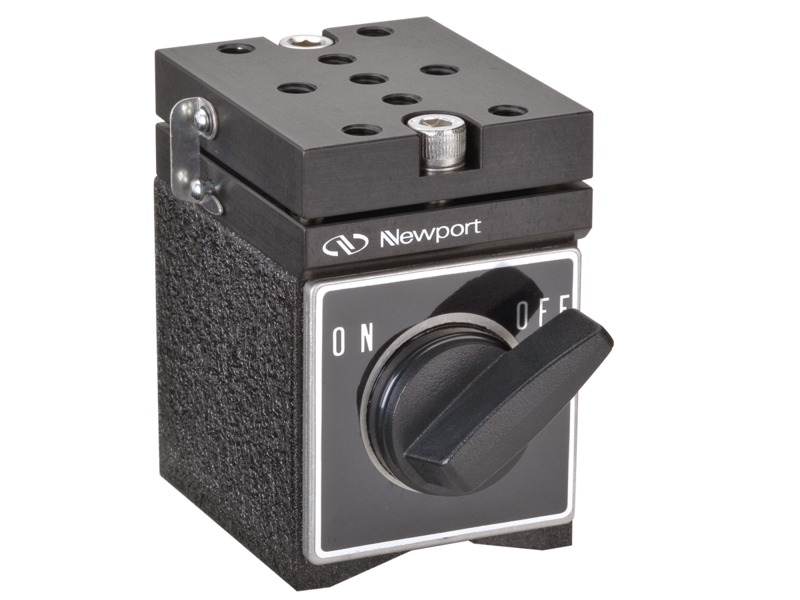

The M-110 Metric Kinematic Magnetic Base has a space-efficient base that adds an inset kinematic interface to a generous array of tapped mounting holes. Components may be attached directly to the base, or the unique kinematic top plate lets you remove components and replace them with repeatable precision. Model 110 may also be attached to tables on its side. The kinematic top plate is equipped with spring-steel clamping hooks that hold the kinematic plates together. Alternatively, two bolts may be used to clamp the plates together. This provides secure clampdown of cantilevered or rod-mounted loads. The locking bolts are accessible even when a standard 1.5 inch (38 mm) diameter rod is attached. M6 thread.

Specifications

Technical Specs

Type
Magnetic Base

Holding Force
400 N

Type
Magnetic Base

Holding Force
400 N

Resources & Downloads

3D Product Models

2D Product Drawings

110 ART-S(79.1 kB, PDF)

Other

M-110 RoHS Certificate(278.4 kB, PDF)

Related Products

Accessories

Description	Compatibility
Optical Beam Block, Tool Holder, Magnetic-Base, Large	UNIVERSAL	Learn More
Cable Clamps, Qty 5 Short and 5 Long	UNIVERSAL	Learn More
Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches	METRIC	Learn More
Socket Head Cap Screw Kit, Stainless Steel, M4 & M6, Qty 805	UNIVERSAL	Learn More
Pedestal Spacer, 0.125 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR	UNIVERSAL	Learn More

Similar

Description	Compatibility
Compact Magnetic Base, 90 lb. Holding Force, M6 Thread	METRIC	Learn More
Optical Pedestal, Magnetic Base, 25.4 mm Height, 25.4 mm Diameter, M4	METRIC	Learn More
Pedestal Base Adaptor, Magnetic, 4.8 mm Height, 31.8 mm Diameter, M6	METRIC	Learn More

Compatible

Description	Compatibility
Optical Post, 14 in. Height, 1.5 in. Diameter, 1/4-20 Threads Both Ends	UNIVERSAL	Learn More
Optical Post, 355.6 mm Height, 38.1 Diameter, M6 Thread	METRIC	Learn More
Optical Post, 177.8 mm Height, 38.1 Diameter, M6 Thread	METRIC	Learn More
Table Mount Adaptor, 25.4 mm Diameter Pedestals, M4 to M6	METRIC	Learn More
Optical Post Holder, No Slip, 25.4 mm Height, 12.7 mm Posts, M6 Thread	METRIC	Learn More
