Hand Switch Magnetic Bases

These magnetic bases reduce experimental set-up time by allowing free positioning and instant clampdown of optical components with the turn of a switch. They are the ideal accessories for all laboratories with ferromagnetic work surfaces such as optical tables or breadboards.

Ideal for quick setups
On/Off hand switch with strong holding forces
Available with kinematic top plate for repeatable positioning
Non-magnetic mounting surfaces with versatile hole patterns

See All Features

Description	Compatibility	Price
110 Hand Switch Magnetic BasesKinematic Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread	IMPERIAL	$271
M-110 Hand Switch Magnetic BasesKinematic Magnetic Base, 90 lb. Holding Force, M6 Threads	METRIC	$271
M-MB-2 Hand Switch Magnetic BasesStandard Magnetic Base, 90 lb. Holding Force, M6 Thread	METRIC	$76
M-MB-3 Hand Switch Magnetic BasesCompact Magnetic Base, 90 lb. Holding Force, M6 Thread	METRIC	$115
MB-2 Hand Switch Magnetic BasesStandard Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread	IMPERIAL	$76
MB-3 Hand Switch Magnetic BasesCompact Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread	IMPERIAL	$115

Features

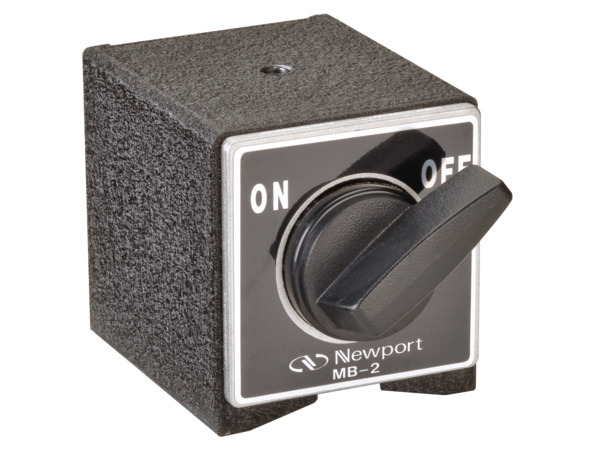

Standard Magnetic Base

The MB-2 Magnetic Base provides a single 1/4-20 (M6) tapped hole ideal for mounting VPH or VPT Series Post Holders.

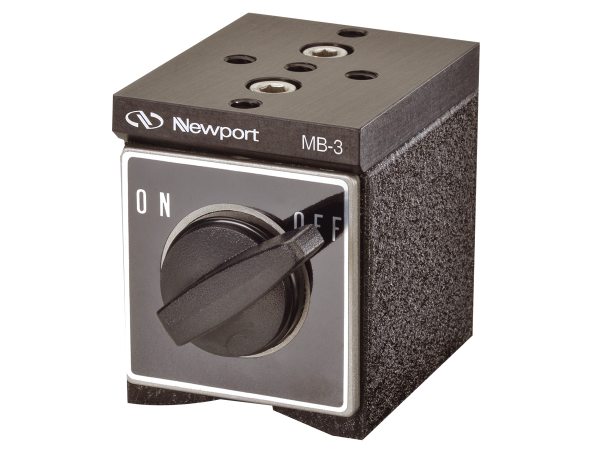

Compact Magnetic Base

The Model MB-3 Magnetic Base features an aluminum mounting plate, which provides two significant advantages compared to other economy bases: a generous array of tapped mounting holes, plus decoupling from the base’s magnetic field.

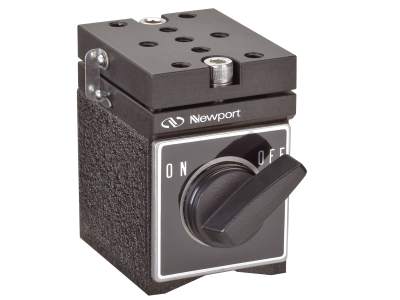

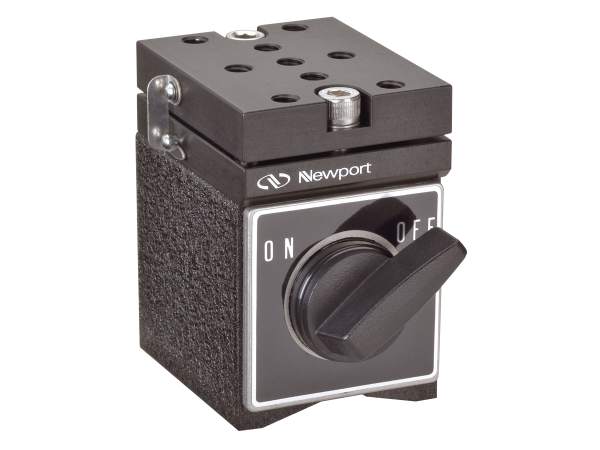

Magnetic and Kinematic Combined

Newport’s unique Model 110 Kinematic Magnetic Base is a space-efficient base that adds an inset kinematic interface to a generous array of tapped mounting holes. Components may be attached directly to the base, or to the unique kinematic top plate that lets you remove components and replace them with repeatable precision. The top plates are equipped with spring-steel clamping hooks that hold the two plates together. Alternatively, two bolts may be used to clamp the plates together, ensuring secure clampdown of cantilevered or rod-mounted loads. Model 110 may also be attached to tables on its side.
