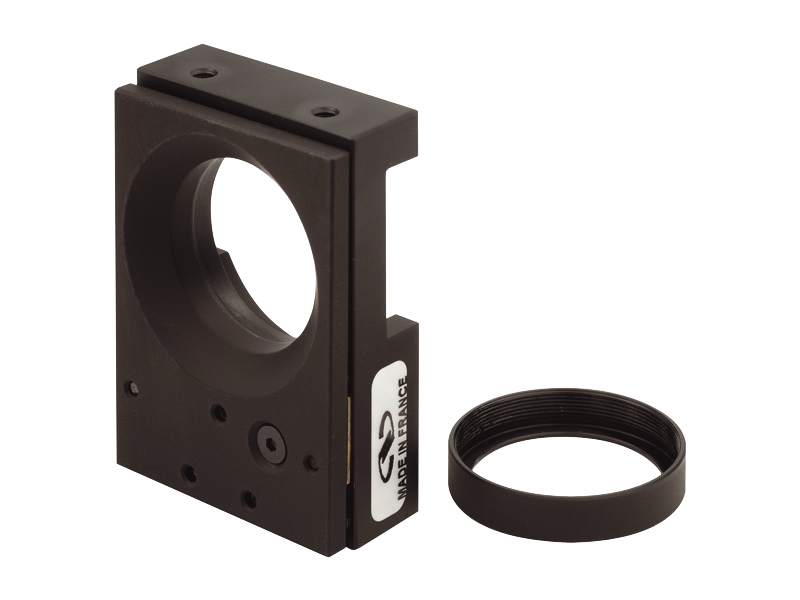

Kinematic Mirror Mount, 25.4 mm, ±1° tip/tilt, M3 & M6
Kinematic Mirror Mount, 25.4 mm, ±1° tip/tilt, M3 & M6
Model: M-SJ25.4
Product Series Overview
26 mm Optical Rail MountsThe M-SJ25.4 Metric Kinematic Mirror Mount is a compact, kinematic mirror mount designed for use with the X26 rail system. The mount provides accurate positioning of 25.4 mm diameter mirrors or beamsplitters with a thickness of 4 to 8 mm. A large clear aperture at 45° is useful for beam splitting applications. Precision adjustment screws provide ±1° tip/tilt for the alignment of mirrors, and have a hex head for tamper-proof Allen wrench adjustment. The addition of the optional TSJ Rotating Base allows coarse 360° positioning of the mount. Mounting the M-SJ25.4 on one side gives an optical axis height at 32.5 mm for direct mounting on CN26 Carriers. Mounting on the other side gives an optical axis height of 19.5 mm, for use with UMR5 Series Linear Stages or the TSJ Rotating Base. Both yield a 40 mm beam height above the rail surface.
Resources & Downloads
3D Product Models
2D Product Drawings
SJ25-4-S(119.1 kB, PDF)
Other
M-SJ25-4_RoHS2021.pdf(689.7 kB, PDF)
