Pedestal Pillar, Magnetic Base, 76.2 mm Height, 38.1 mm Diameter, M6

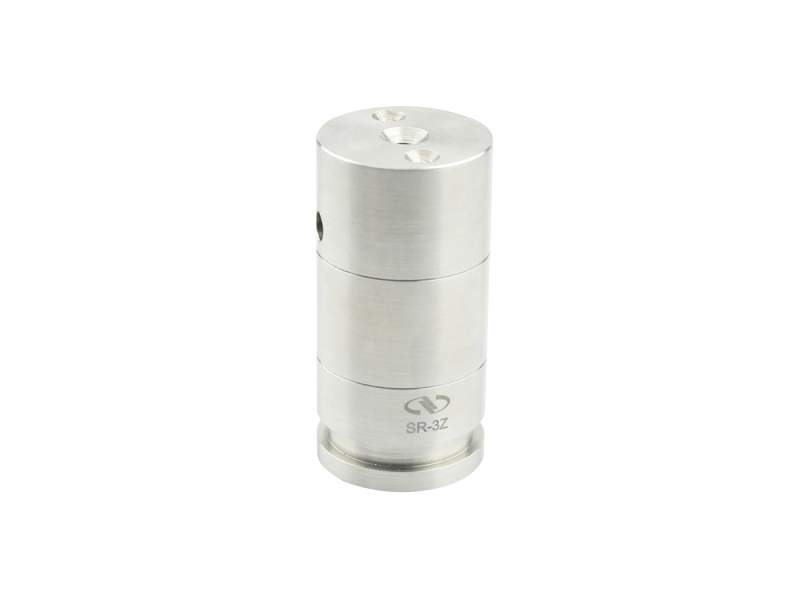

The M-SR-3Z Optical Pedestal Pillar is 38.1 mm diameter with a height of 76.2 mm and constructed from solid stainless steel. SR Series optical pedestal pillars are designed for maximum stability by integrating multiple features into a single part. Rather than having several separate adaptors, these support pillars have a machined-in pedestal base and multiple machined-in mounting holes. For additional ease of use and functionality, each of the SR-Z rods incorporates graduated height marks and an integrated high-strength magnet in the pedestal pillar base. The SR-F, all-stainless steel clamping fork, is used to clamp these rods on to an optical table.

Specifications

Technical Specs

Type
Magnetic Pedestal Pillar
Height
76.2 mm

Material
Stainless Steel
Diameter
38.1 mm

Type
Magnetic Pedestal Pillar
Height
76.2 mm

Material
Stainless Steel
Diameter
38.1 mm
