Optical Post Holder, 3.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base

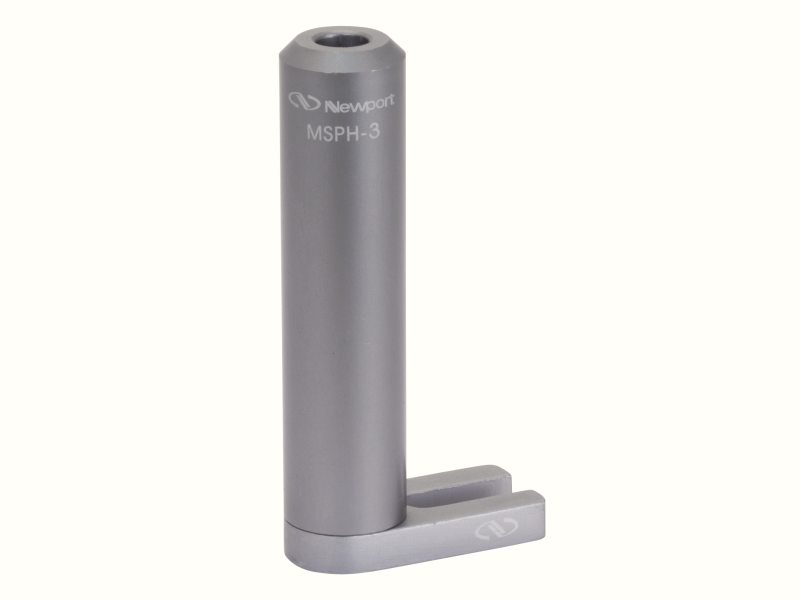

Miniature Slotted Base Optical Post Holders

The MSPH-3 is a low-cost, slotted-base post holder for miniature 5/16 in. diameter MSP-Series posts. The 1/4-20 (M6) slotted base allows this post holder to be used on standard optical tables right along side standard-sized post holders and pedestals. MSPH post holders facilitate the creation of more compact setups through the use of smaller sized optical mounts.

Specifications

Technical Specs

Type
Optical Post Holder
Height
3.25 in. (82.6 mm)
Thread Type
1/4-20 (M6) Slot
Material
Aluminum

Diameter
7.9 mm

Type
Optical Post Holder
Height
3.25 in. (82.6 mm)
Thread Type
1/4-20 (M6) Slot
Material
Aluminum

Diameter
7.9 mm

Resources & Downloads

Drawings And Cad

MSPH(158.5 kB, PDF)

Other

MSPH-3 RoHS Certificate(280 kB, PDF)
MSPH-3_RoHS2021.pdf(689.4 kB, PDF)
