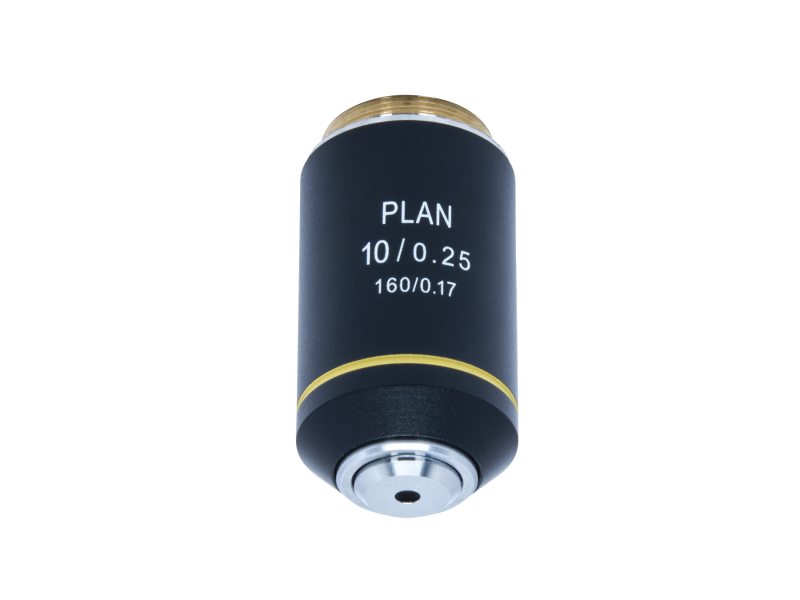

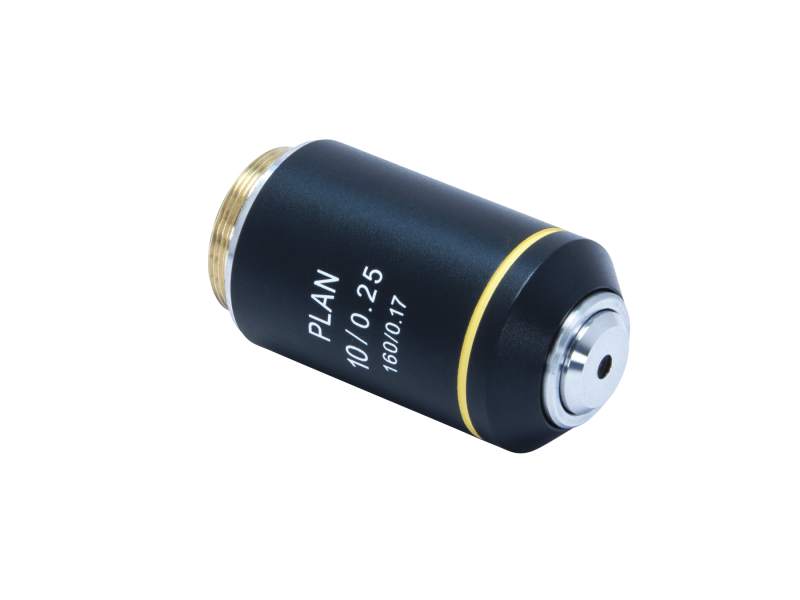

Microscope Objective Lens, ValuMax, 10x, 0.25 NA, 400-700 nm

The MVC-10X valumax microscope objective has a 10x magnification, 0.25 numerical aperture, and 8.57 mm working distance. It uses a standard RMS thread, 0.800-36. The lenses are antireflection coated for the visible spectrum. This MVC-10x objective is suitable for use with standard low power visible laser wavelengths.

Specifications

Technical Specs

Objective Type
ValuMax
Magnification
10x
Numerical Aperture
0.25
Wavelength Range
400-700 nm

Working Distance
8.57 mm
Thread Type
0.800-36 RMS
Tube Length
160 mm
Parfocal Length
45 mm

Objective Type
ValuMax
Magnification
10x
Numerical Aperture
0.25
Wavelength Range
400-700 nm

Working Distance
8.57 mm
Thread Type
0.800-36 RMS
Tube Length
160 mm
Parfocal Length
45 mm

Resources & Downloads

3D Product Models

2D Product Drawings

MVC-10X-Drawings.pdf(228 kB, PDF)

Other

MVC-10X RoHS Certificate(265.4 kB, PDF)
MVC-10X_ROHS2-2021.pdf(282.3 kB, PDF)
