MVC Series Economy Microscope Objective Lenses

MVC Series Economy Microscope Objective Lenses

MVC Series Economy Microscope Objective Lenses

These economy objectives are ideal for collimating and focusing laser beams in the visible spectrum. These objectives are precision fabricated and assembled which make them an excellent choice for standard laboratory applications.

General purpose objective lens
Visible AR coated
Most economical option
Finite conjugate objectives

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Magnification	Avail.	Price

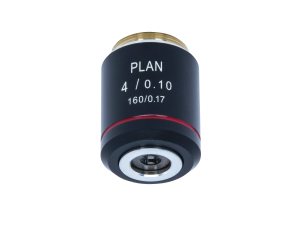

		MVC-4XMicroscope Objective Lens, ValuMax, 4x, 0.1 NA, 400-700 nm	UNIVERSAL		4x		$79

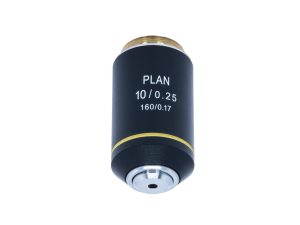

		MVC-10XMicroscope Objective Lens, ValuMax, 10x, 0.25 NA, 400-700 nm	UNIVERSAL		10x		$89
		MVC-20XMicroscope Objective Lens, ValuMax, 20x, 0.4 NA, 400-700 nm	UNIVERSAL		20x		$135

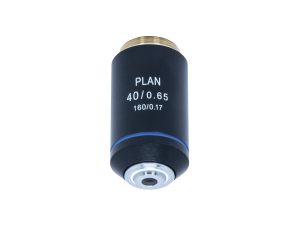

		MVC-40XMicroscope Objective Lens, ValuMax, 40x, 0.65 NA, 400-700 nm	UNIVERSAL		40x		$142
		MVC-60XMicroscope Objective Lens, ValuMax, 60x, 0.85 NA, 400-700 nm	UNIVERSAL		60x		$164

Specifications

Models
Magnification	4x	10x	20x	40x	60x
Numerical Aperture	0.1	0.25	0.4	0.65	0.85
Wavelength Range	400-700 nm	400-700 nm	400-700 nm	400-700 nm	400-700 nm
Effective Focal Length (EFL)	28.9 mm	15.3 mm	7.8 mm	4.2 mm	2.6 mm
Working Distance	15.1 mm	8.57 mm	8.72 mm	0.38 mm	0.48 mm
Tube Length	160 mm	160 mm	160 mm	160 mm	160 mm
Thread Type	0.800-36 RMS	0.800-36 RMS	0.800-36 RMS	0.800-36 RMS	0.800-36 RMS

Accessories

RMS Threaded Adapters and Mounts

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		LT10-RMS-NThread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 0.800-36 RMS Thread	UNIVERSAL			$24
		UPA-OMObjective Lens Adapter, RMS Thread, 1 inch Mount	UNIVERSAL			$49
		LPMH-05Objective Lens Holder, RMS, 0.875-20 Thread, For LP-05A Series	UNIVERSAL			$37
		LPMH-1Objective Lens Holder, RMS, 1.438-20 Thread, For LP-1A Series	UNIVERSAL			$36
		561-OBJObjective Lens Mount, 561 Series	UNIVERSAL			$171
		LH-RMSMicroscope Objective Mount, Fixed, A-LINE, 0.800-36 Thread, 8-32	IMPERIAL			$30
		OC1-RMSObjective Lens Mount, Insertable, RMS Thread, Optics Cage Plus	UNIVERSAL			$28
