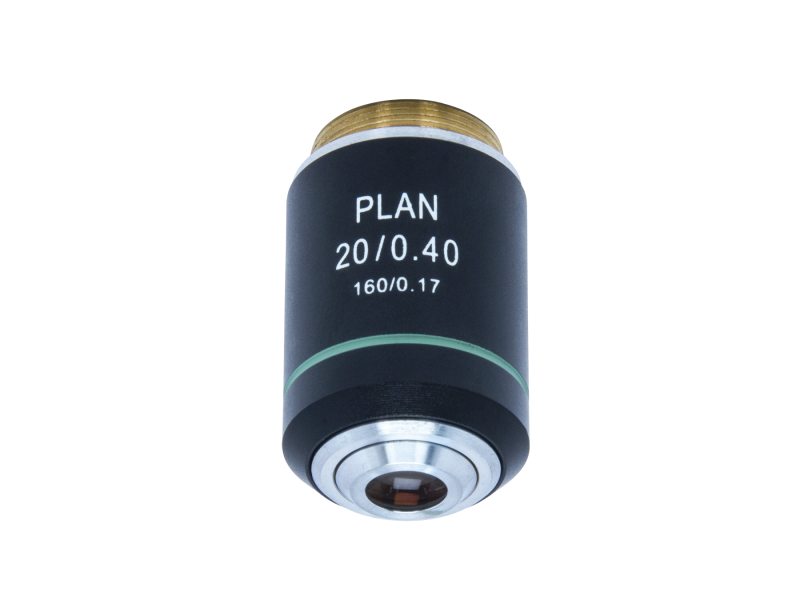

Microscope Objective Lens, ValuMax, 20x, 0.4 NA, 400-700 nm

The MVC-20X microscope objective has a 20x magnification, 0.4 numerical aperture, and 8.72 mm working distance. It uses a standard RMS thread, 0.800-36. The lenses are antireflection coated for the visible spectrum. This MVC-20x objective is suitable for use with standard low power visible laser wavelengths.

Specifications

Technical Specs

Objective Type
ValuMax
Magnification
20x
Numerical Aperture
0.4
Wavelength Range
400-700 nm

Working Distance
8.72 mm
Thread Type
0.800-36 RMS
Tube Length
160 mm
Parfocal Length
45 mm

Objective Type
ValuMax
Magnification
20x
Numerical Aperture
0.4
Wavelength Range
400-700 nm

Working Distance
8.72 mm
Thread Type
0.800-36 RMS
Tube Length
160 mm
Parfocal Length
45 mm

Resources & Downloads

3D Product Models

2D Product Drawings

MVC-20X-Drawings.pdf(228.4 kB, PDF)

Other

MVC-20X RoHS Certificate(264.8 kB, PDF)
MVC-20X_ROHS2-2021.pdf(282.3 kB, PDF)
