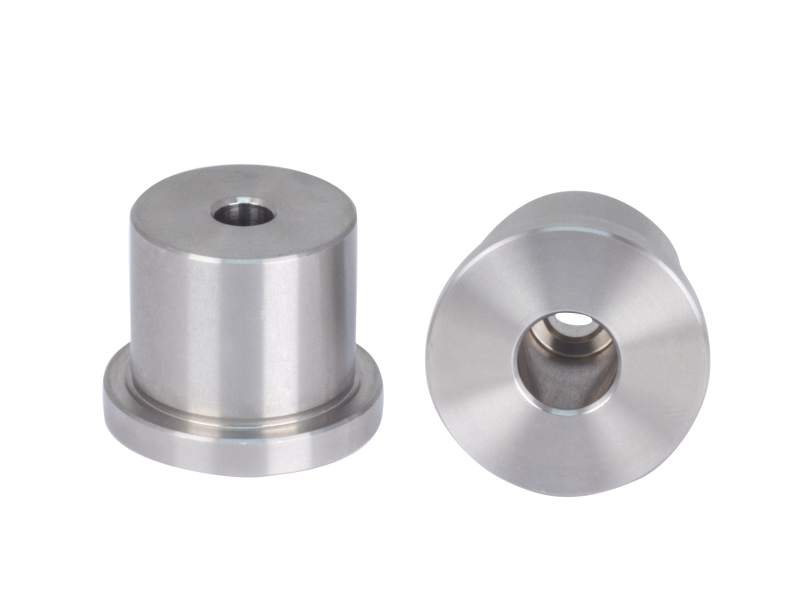

Optical Pedestal Base, 1.0 in. Height, 1 in. Diameter, 1/4-20 (M6) CLR

The PS-B-1 Pedestal Base has a 1/4-20 thru-hole and can be used for turning TPS Series Posts into optical pedestals. 1.0 in. (25.4 mm) height.

Specifications

Technical Specs

Type
Pedestal Base Adapter
Height
25.4 mm
Thread Type
1/4-20 (M6) CLR

Diameter
25.4 mm
Pack Quantity
1

Type
Pedestal Base Adapter
Height
25.4 mm
Thread Type
1/4-20 (M6) CLR

Diameter
25.4 mm
Pack Quantity
1

Resources & Downloads

3D Product Models

2D Product Drawings

PS-B Bases-S(141.8 kB, PDF)

Other

PS-B-1 RoHS Certificate(278 kB, PDF)
PS-B-1_RoHS2021.pdf(681.3 kB, PDF)
