Mounting Bracket, PX Post, For MFM-050 Series, Stainless Steel
Mounting Bracket, PX Post, For MFM-050 Series, Stainless Steel
Model: PX-MFM-B
Product Series Overview

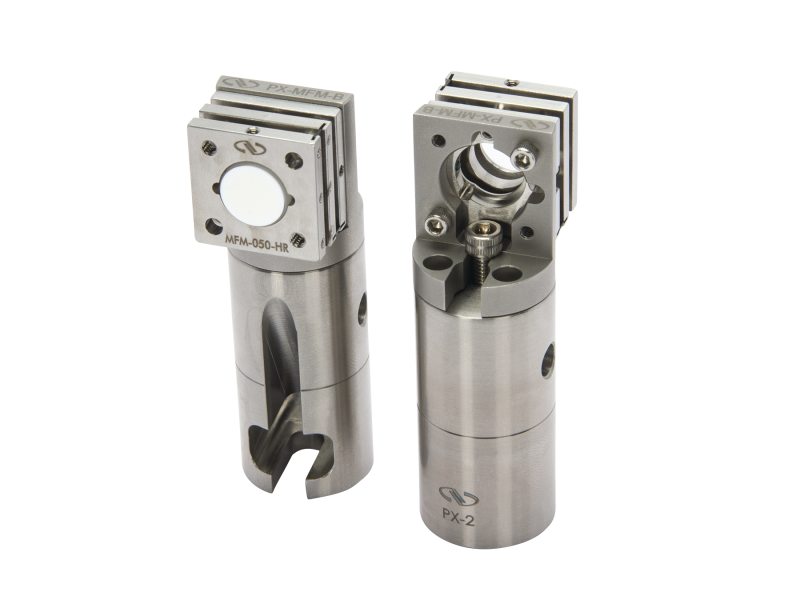

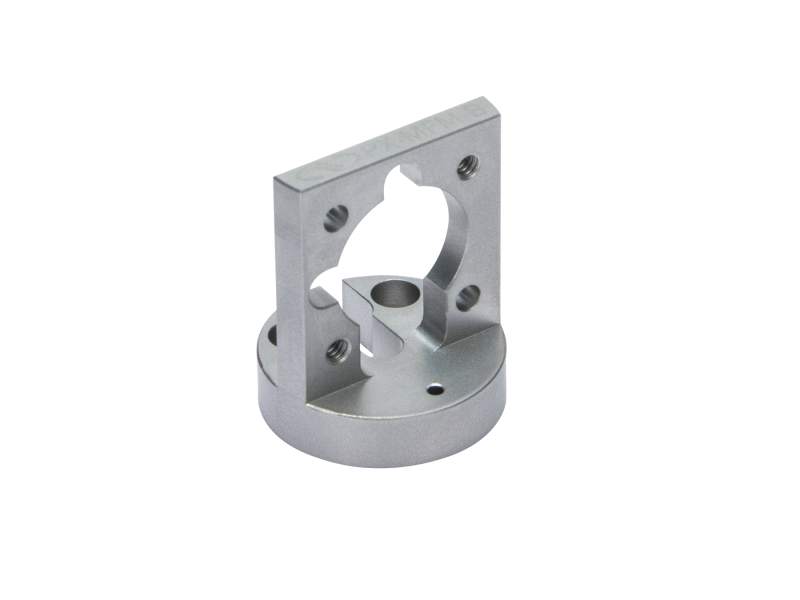

Mirror Mount Mounting AdaptersThe PX-MFM-B bracket features stainless steel construction, alignment pin holes for keying location/orientation, and front-side/rear-side mounting for the MFM-050. It has a unique internal slotted base - a similar design to our PX series pedestals and posts.
Resources & Downloads
Other
PX-MFM-B_RoHS2021.pdf(682.1 kB, PDF)
Drawings And Cad
PX-MFM-B Drawing(181 kB, PDF)
Related Products
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MFM-050Industrial Optical Mount, Flexure, 0.5 in., 2 Allen-Key Adjustment | |||||
| MFM-050-HRIndustrial Optical Mount, High-Resolution Flexure, 0.5 in., 2 100-TPI Hex | |||||
 | MFM-050-LCIndustrial Optical Mount, Flexure, 0.5 in., 2 Allen, LaserClean | |||||
 | PX-3Optical Post, Slotted Base, 3.0 in. Height, 1.0 in. Diameter, 8-32 | |||||
 | PX-3FOptical Pedestal, Forkless Mounting, 3 in. Height, 1 in. Diameter, 8-32 |
