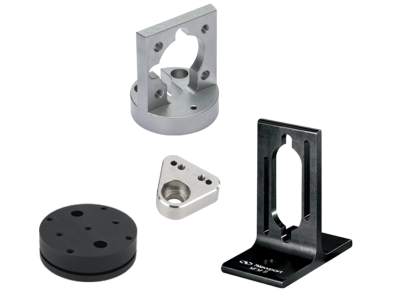

Mirror Mount Mounting Adapters

Our various mounting adapters provide versatile ways to extend the utility of the mounts.

Mounting adapters for MFM, Suprema^®, ULTIMA^® mounts
PX-FM1 and PX-MFM-B brackets for PX series forkless pedestals
Offset gimbal and platform adapters

Description	Compatibility	Price
ADAPT-SUP-0.5 Mirror Mount Mounting AdaptersPost Mounting Adapter, SS050 or SN050, 2-56 Thread	IMPERIAL	$21
COR-1 Mirror Mount Mounting AdaptersCenter of Rotation Adaptor, P100-P Platform Mount	UNIVERSAL	$29
M-MFM-075CB Mirror Mount Mounting AdaptersMounting Bracket, M-MFM-050C Clear Edge Flexure Industrial Optical Mount	METRIC	$56

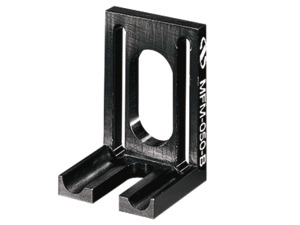

MFM-050-B Mirror Mount Mounting AdaptersMounting Bracket, MFM-050 Flexure Industrial Optical Mount	UNIVERSAL	$102

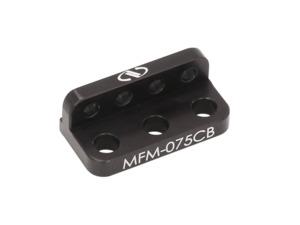

MFM-075CB Mirror Mount Mounting AdaptersMounting Bracket, MFM-075C Clear Edge Flexure Industrial Optical Mount	IMPERIAL	$56

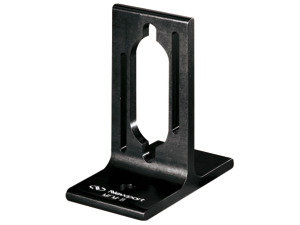

MFM-B Mirror Mount Mounting AdaptersMounting Bracket, MFM-075 or MFM-100 Flexure Optical Mounts	UNIVERSAL	$72
PX-MFM-B Mirror Mount Mounting AdaptersMounting Bracket, PX Post, For MFM-050 Series, Stainless Steel	UNIVERSAL	$66
UPA-PA.5 Mirror Mount Mounting AdaptersHorizontal Adapter, 0.5 inch, For U50-P	UNIVERSAL	$20
UPA-PA1 Mirror Mount Mounting AdaptersHorizontal Adapter, 1 inch, For U100-P	UNIVERSAL	$23
UPA-PA2 Mirror Mount Mounting AdaptersHorizontal Adapter, 2 inch, For U200-P	UNIVERSAL	$30

Show All

Features

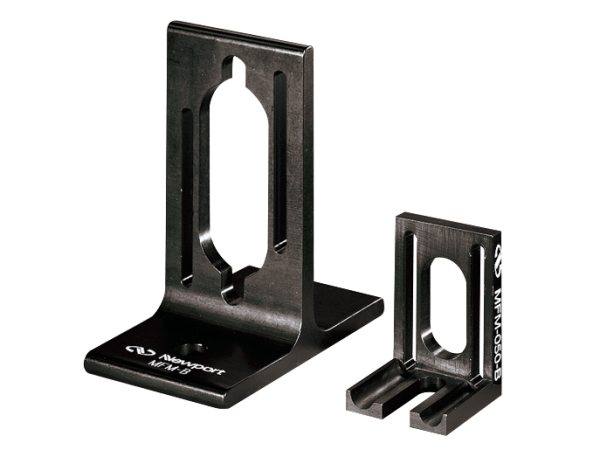

MFM Mounting Adapters

The MFM Series Mounting Bracket provides variable optical axis height and solid attachment to surfaces. They are compatible with MFM Series flexure mounts.

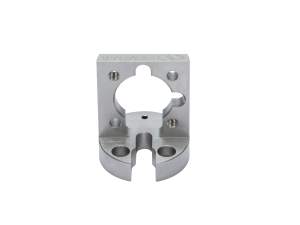

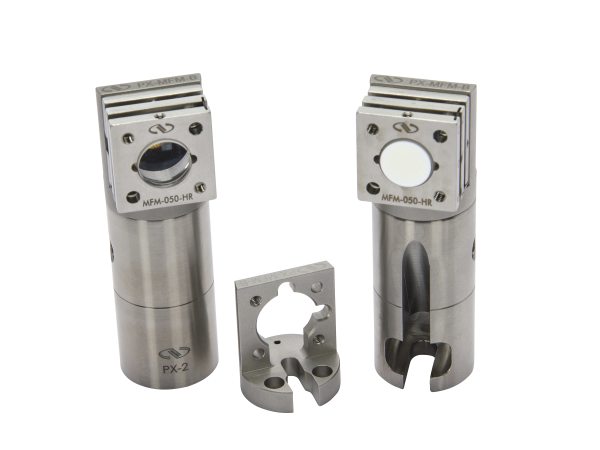

Mounting Adapters compatible with PX forkless pedestals

Featuring the same integrated slotted base as our PX series forkless pedestals and posts, PX-MFM-B is a bracket designed specifically for mounting MFM-050 mounts.

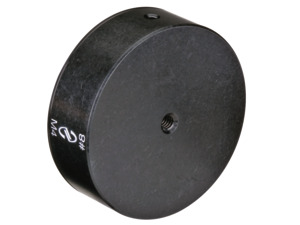

Horizontal Adaptors

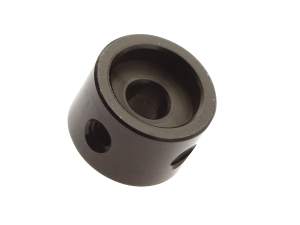

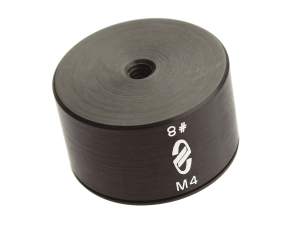

UPA-PA.5 , UPA-PA1 , UPA-PA2 : These Horizontal Adaptors attach to the mounting holes on an optical mount, providing a mechanism to convert the U50-P, U100-P, or U200-P to a post-mounted horizontal platform for mounting prisms, cube beamsplitters, or other components.

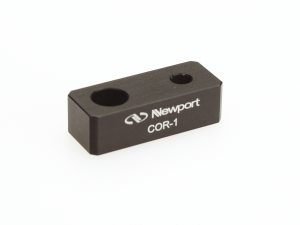

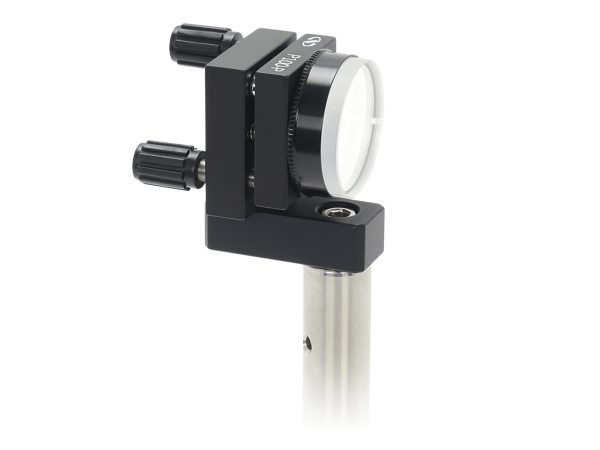

Center of Rotation Adaptor

The COR-1 Center of Rotation Adapter works with P100-P Platform Optical Mounts to locate the mirror's surface at the the mounting post's axis of rotation.

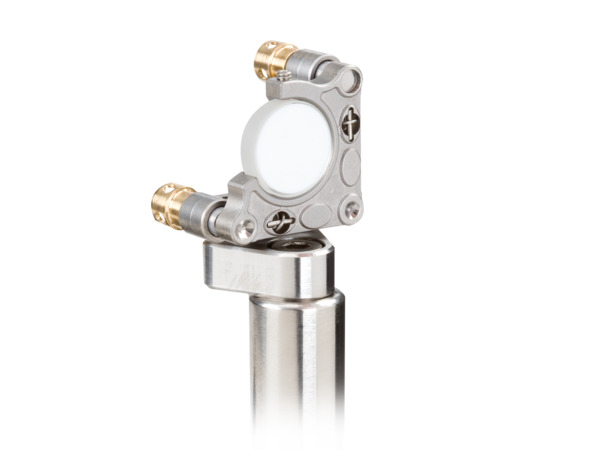

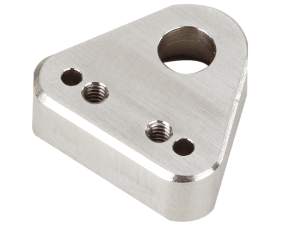

Post Mounting Adapters for Suprema Mounts

The ADAPT-SUP Series adapters feature two 2-56 (M2) threaded holes and one 8-32 (M4) clearance hole, allowing a SS050 or SN050 Suprema mount to be mounted on a standard 0.5 in. optical post.

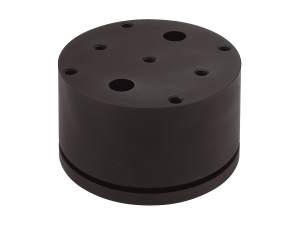

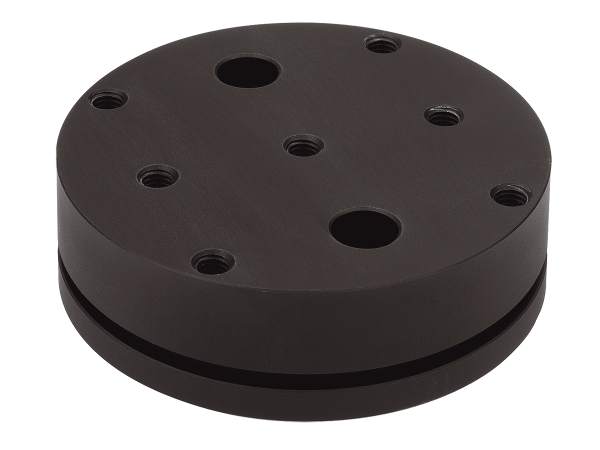

RH Series Riser Base for SL Mount

Designed fo SL Gimbal Mounts, the RH series riser bases can be placed in any combination beneath the base plate to achieve any optical axis height (>75 mm) which is a multiple of 25 mm.

Accessories

Mounts for UPA-PA Adaptors

Description	Compatibility	Price
U100-A2K Mirror Mount, ULTIMA<sup>®</sup>, Clear Edge, 1.0 in., 2 Locking Knobs	UNIVERSAL	$147
U100-P2K Platform Optical Mount, ULTIMA<sup>®</sup>, 2.0 x 2.0 in, 2 Locking Knob Adjustment	UNIVERSAL	$176
U200-A2K Mirror Mount, ULTIMA<sup>®</sup>, Clear Edge, 2.0 in., 2 Locking Knobs	UNIVERSAL	$250

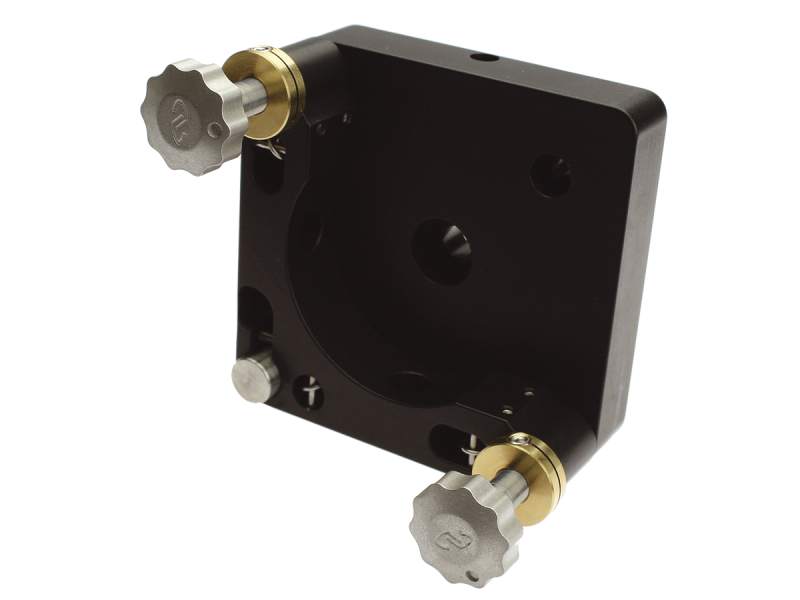

U200-P2K Platform Optical Mount, ULTIMA<sup>®</sup>, 2.75 x 2.75 in., 2 Locking Knobs	UNIVERSAL	$250
U50-A1 Mirror Mount, ULTIMA<sup>®</sup>, Clear Edge, 0.5 in., (3) 100-TPI Allen-Keys	UNIVERSAL	$143
U50-P1 Platform Optical Mount, ULTIMA<sup>®</sup>, 1.0 x 1.0 in., (3) 100-TPI Allen-Keys	UNIVERSAL	$145
U50-PS Platform Optical Mount, ULTIMA<sup>®</sup>, 1.0 x 1.0 in., (2) 100-TPI Allen-Keys	UNIVERSAL	$84

Mounts for MFM Adaptors

Description	Compatibility	Price

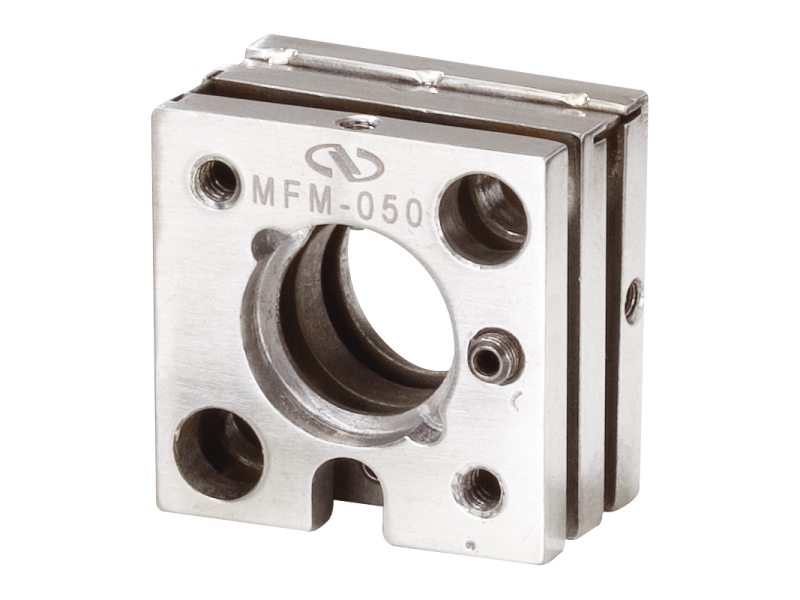

MFM-050-HR Industrial Optical Mount, High-Resolution Flexure, 0.5 in., 2 100-TPI Hex	UNIVERSAL	$181
MFM-075-HR Industrial Optical Mount, High-Resolution Flexure, 0.75 in., 2 100-TPI Hex	UNIVERSAL	$184

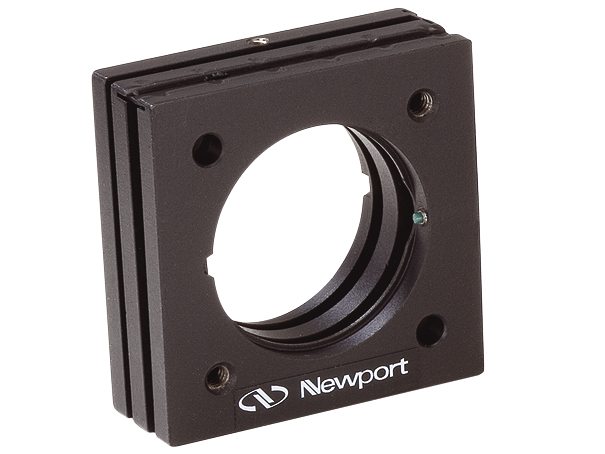

MFM-100-HR Industrial Optical Mount, High-Resolution Flexure, 1.0 in., 2 100-TPI Hex	UNIVERSAL	$188

Mounts for COR-1 Adaptor

Description	Compatibility	Price
M-P100-P Platform Optical Mount, Performa, 1.0 in., 2 Knob Adjustment, M4	METRIC	$76

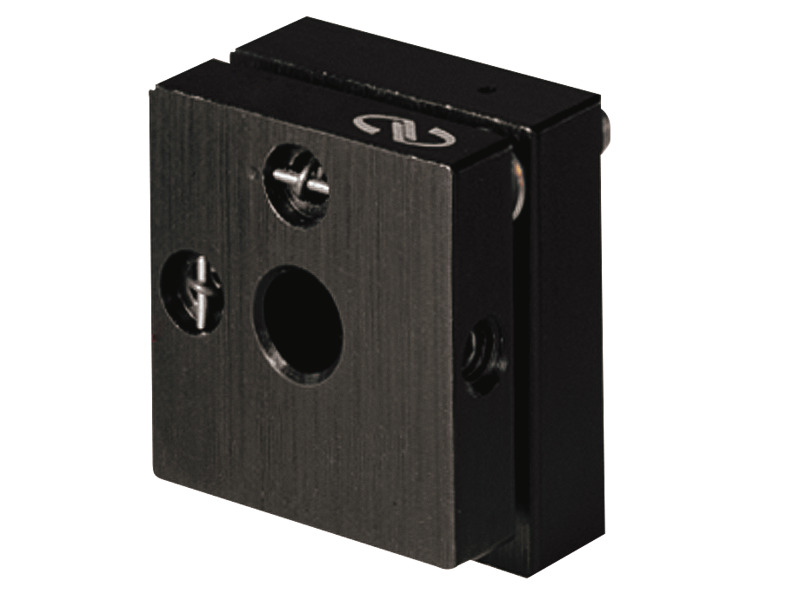

M-P100-P-H Platform Optical Mount, Performa, 1.0 in., 2 Allen-Key Adjustment, M4	METRIC	$76
P100-P Platform Optical Mount, Miniature, 1.0 in., 2 Knob Adjustment, 8-32	IMPERIAL	$76
P100-P-H Platform Optical Mount, Performa, 1.0 in., 2 Allen-Keys, 8-32	IMPERIAL	$76

Mounts for RH Base Adaptors

Description	Compatibility	Price

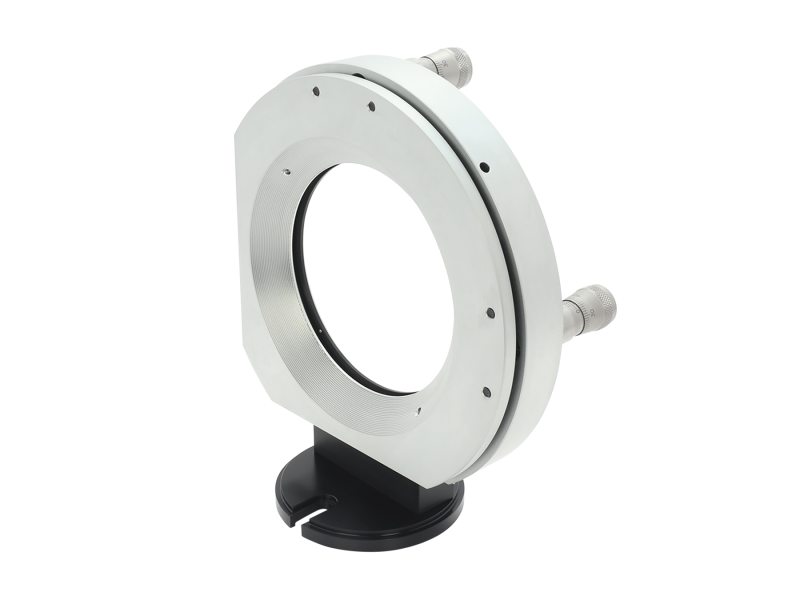

SL101.6BM Gimbal Optical Mount, 4.0 in., (2) BM Micrometers	UNIVERSAL	$1,951
SL25.4BM Gimbal Optical Mount, 1.0 in. Diameter, (2) BM Micrometers	UNIVERSAL	$1,175
SL51BM Gimbal Optical Mount, 2.0 in. Diameter, (2) BM Micrometers	UNIVERSAL	$1,482
SL76.2BM Gimbal Optical Mount, 3.0 in. Diameter, (2) BM Micrometers	UNIVERSAL	$1,878
VGM-1BM Gimbal Optical Mount, Vertical Drive, 1.0 in., Standard Micrometers	UNIVERSAL	$1,373
VGM-2BM Gimbal Optical Mount, Vertical Drive, 2.0 in., Standard Micrometers	UNIVERSAL	$1,530

Mounts for ADAPT-SUP Adaptors

Description	Compatibility	Price

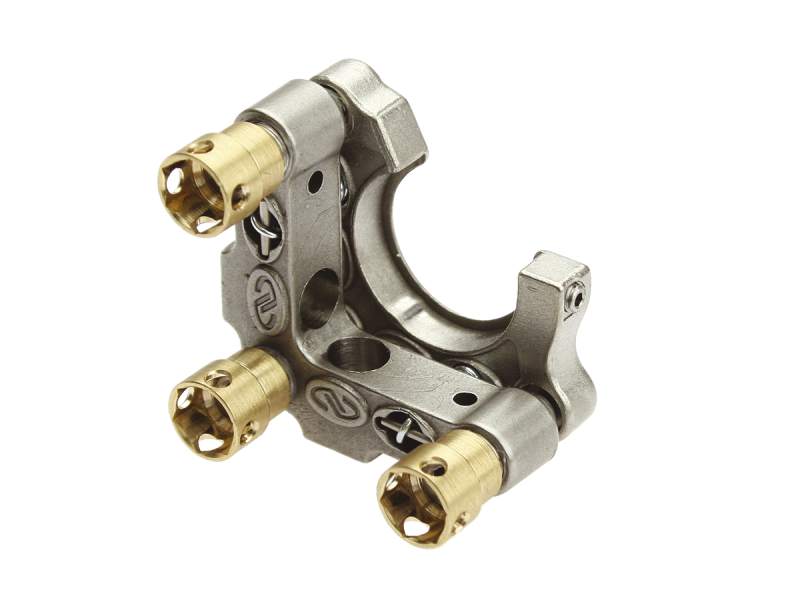

SN050-R3 Mirror Mount, Suprema<sup>®</sup>, Clear Edge, Rear Load, 0.5 in., 3 100-TPI Locking Allen	UNIVERSAL	$171
SN050-R3N Mirror Mount, Suprema<sup>®</sup> Clear Edge, Rear Load, 0.5 in., (3) 100-TPI Hex	UNIVERSAL	$163
SS050-F3 Mirror Mount, Suprema<sup>®</sup>, 0.5 in., (3) 100-TPI Locking Allen-Key Actuators	UNIVERSAL	$166
SS050-F3N Mirror Mount, Suprema<sup>®</sup>, 0.5 in., (3) 100-TPI Allen-Key Actuators	UNIVERSAL	$158
