Hex-Driven Miniature Platform Mirror Mounts
Hex-Driven Miniature Platform Mirror Mounts
Miniature platform mirror mounts have a flat, square, hex adjustable surface for mounting mirrors, prisms, and beamsplitter cubes.
- 1 in. and smaller platform sizes
- Allen-key adjustment screws
- Compatible with UPA mirror cup adapters See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-P100-P-H Hex-Driven Miniature Platform Mirror MountsPlatform Optical Mount, Performa, 1.0 in., 2 Allen-Key Adjustment, M4 | |||||

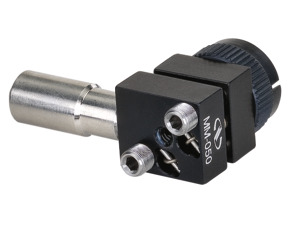

 | MM-050-HEX Hex-Driven Miniature Platform Mirror MountsPlatform Optical Mount, 0.5 in., ±11° Hex Adjustment, 4-40 | |||||
 | MM-050-HEX-M Hex-Driven Miniature Platform Mirror MountsPlatform Optical Mount, 12.7 mm, ±11° Hex Adjustment, M3 | |||||

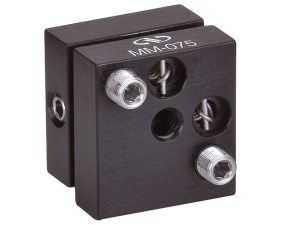

 | MM-075-HEX Hex-Driven Miniature Platform Mirror MountsPlatform Optical Mount, 0.75 x 0.75 in, ±7° Adjustment, 8-32 | |||||
 | MM-075-HEX-M Hex-Driven Miniature Platform Mirror MountsPlatform Optical Mount, 19.05 x 19.05 mm, ±7° Adjustment, M4 | |||||
 | P100-P-H Hex-Driven Miniature Platform Mirror MountsPlatform Optical Mount, Performa, 1.0 in., 2 Allen-Keys, 8-32 | |||||
 | U50-P Hex-Driven Miniature Platform Mirror MountsPlatform Optical Mount, ULTIMA<sup>®</sup>, 1.0 x 1.0 in., (3) 80-TPI Allen-Keys | |||||

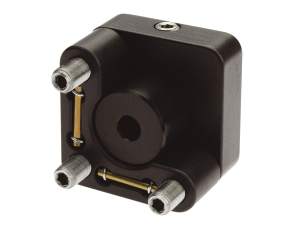

 | U50-P1 1Hex-Driven Miniature Platform Mirror MountsPlatform Optical Mount, ULTIMA<sup>®</sup>, 1.0 x 1.0 in., (3) 100-TPI Allen-Keys | |||||
 | U50-PL1 Hex-Driven Miniature Platform Mirror MountsPlatform Optical Mount, ULTIMA<sup>®</sup>, 1x1 in., (3) Locking 100 TPI Allen-Keys | |||||

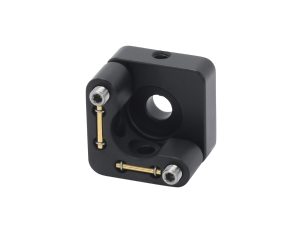

 | U50-PS Hex-Driven Miniature Platform Mirror MountsPlatform Optical Mount, ULTIMA<sup>®</sup>, 1.0 x 1.0 in., (2) 100-TPI Allen-Keys |
- LaserClean version <quickview data-class="quickview-link" data-code="U50-P1-LC" data-type="product">U50-P1-LC</quickview> available
Features
Miniature Platform Mounts
Miniature Platform Mounts are available in three compact sizes: 1.00-, 0.75-, and 0.50-in. These mounts cover the most frequently used OEM mirror sizes.
ULTIMA® Platform Mounts
ULTIMA® Platform Mounts offer unsurpassed functionality. They feature thick front and rear plates and optimized, stiff springs to improve long-term stability and provide greater protection against vibrations. Hard carbide pads ensure smooth, repeatable motion. A large array of optical mounting accessories is available for these mounts making ULTIMA a basic building block for many optical systems.
Horizontal or Vertical Mounting
Both MM-HEX and P100-P series can be post mounted as a horizontal tip/tilt platform using the threaded hole in the center or a vertical mount using the threaded hole on the side.
U50-P ULTIMA platform mounts can also be mounted horizontally with adapter UPA-PA.5, which is already included in U50-P and U50-P1 models.
Allen-Key Adjustment
Allen-key adjustments screws are used in the miniature platform mounts to save space and prevent unintended adjustment. For long-term stability, U50-PL and U50-PL1 feature a flexure lock built into the mount body, which exerts a tangential force on the screw to prevent rotation.
Dedicated Mirror Adapters
Newport's Platform Mounts are complimented by a set of mirror cup adapters. The Mirror Cup Adapters are compatible with ULTIMA series and P100-P miniature platform mounts. They attach to the face of the platform mount through the 1/4-in. hole in the center of the platform and are locked in place by a set screw from the side. The Horizontal Adaptors attach to the mounting holes on an optical mount, providing a mechanism to convert the ULTIMA Platform Mounts to a post-mounted horizontal platform for mounting prisms, cube beamsplitters, or other components.
