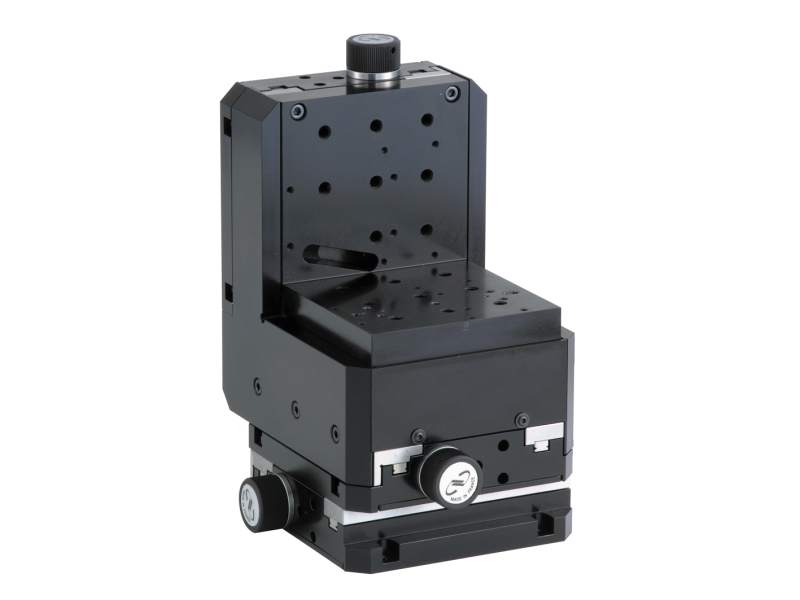

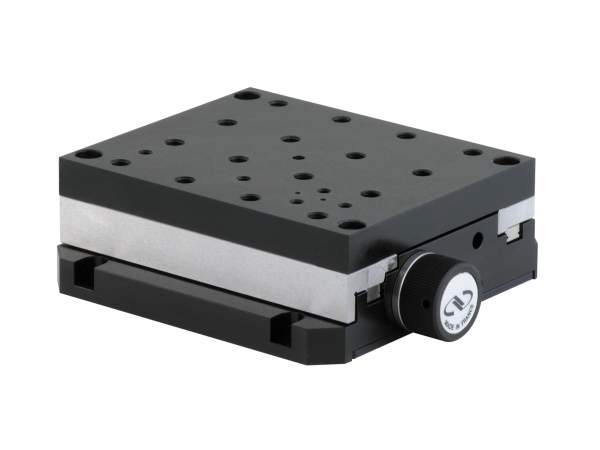

XYZ Linear Stage, 25 mm, 100 nm MIM, DC Servo, Tachometer, Left-handed
Model: VP-25XA-XYZL

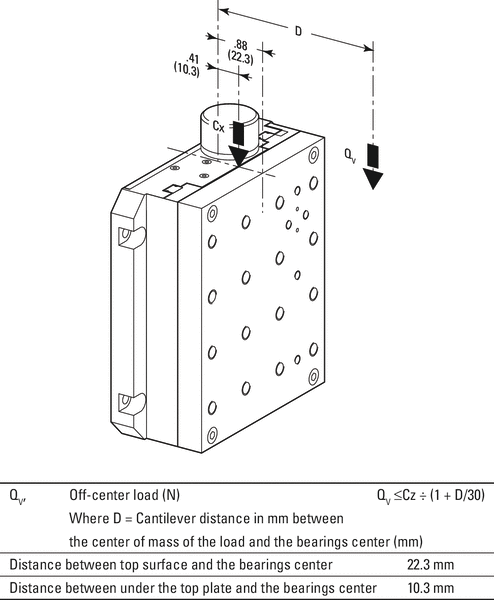

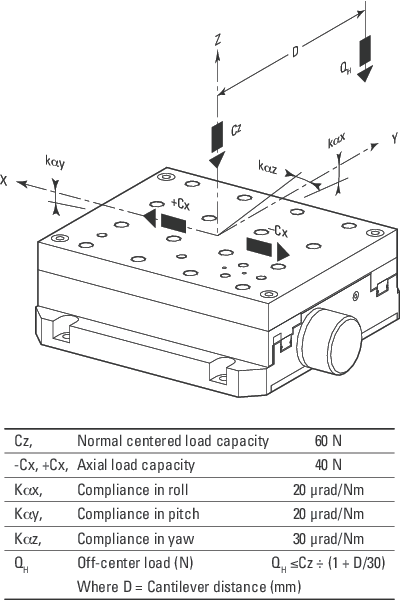

Product Series Overview
VP Compact Aluminum DC Motor Linear StagesThe VP-25XA-XYZL Precision Compact Linear Stage provides high-precision positioning performance in an ultra-compact form factor. A low friction ball screw drive provides robust, reliable performance with excellent thrust and minimal heat induced position drift. Combined with excellent minimum incremental motion of 0.1μm and travel of 25mm, the VP-25XA-XYZL is ideal for applications requiring fine manipulation of small parts such as alignment of optical fibers. Featuring a manual adjustment knob, VP-25XA-XYZL stages are versatile enough to handle automated and non-automated tasks alike. Typical applications include fiber alignment, micro-assembly, and micromachining.
Backlash-free Ballscrew
DC Motor for Smooth, High Speed Motion
DC Motors are best characterized by their high speeds, smooth motion, good efficiency and a high power/weight ratio. Precise closed-loop servo positioning and speed control on these VP stages is achieved with a built-in linear encoder and included tachometer. A manual adjustment knob also adds to the utility of these stages.
End-of-Run Limit Switches
Metrology Report Included at No Additional Cost
Error Mapping Services
For critical positioning applications, Newport offers error mapping upon request for VP-25XL stages driven by our XPS advanced motion controller. We will measure, implement, and verify the results of this error map that will individually optimize each stage's position accuracy. In addition, multi-axis error mapping is also available. Measurements are made at 20.0 ±0.2 °C. A certificate of calibration will be provided with your stage. Actual data may also be provided upon request.
Resources & Downloads
3D Product Models
2D Product Drawings
Motorized Alignment System Brings a New Light into Optical Fiber(787.2 kB, PDF) Telecom Data Brochure(4.9 MB, PDF) VP-25X Data Sheet.pdf(2.1 MB, PDF) VP-25XA Linear Stages User's Manual(1.3 MB, PDF) Optical Fiber Alignment - White Paper(8.6 MB, PDF) VP-25XA-XYZL(156.9 kB, PDF) VP-25XA-S(104 kB, PDF)
Other
VP-25XA-XYZL RoHS Certificate(279.4 kB, PDF)
Related Products
Compatible Controllers
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
| ESP302 3-Axis DC and Stepper Motion Controller | ||||||
| 3Motion Controller, Single-axis DC Motor | ||||||
| XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver 1 | ||||||
| XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver 2 |
- Requires <quickview data-class="quickview-link" data-code="XPS-DRV11" data-type="product">XPS-DRV11</quickview> driver module
- Requires <quickview data-class="quickview-link" data-code="XPS-DRV11" data-type="product">XPS-DRV11</quickview> driver module
- Multiple SMC single-axis controllers are needed to control a multi-axis VP stage.
