Ball and Socket Adjustable Optical Post Heads
Ball and Socket Adjustable Optical Post Heads
Articulated ball and socket jointed optical post heads provide a simple method of adjusting a mounting surface. This provides maximum flexibility for aligning mirror mounts or any other mount that could be used on top of a post. Matching threaded holes in the bottom of the BSJ and the adjustable stud make these ideal for use with standard optical posts. A single locking screw provides superior locking force and easier locking.
- Adjustable throughout a 50° cone
- Extended adjustment to horizontal position at three directions
- Single locking screw for simple, secure locking
- Threaded top and bottom surfaces for mounting
- Mount directly on optical posts. pedestals or optical tables See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

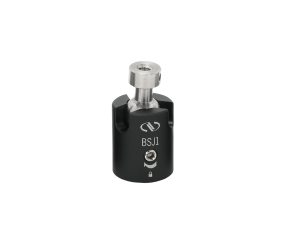

 | BSJ1 Ball and Socket Adjustable Optical Post Heads Adjustable Optical Post Head, Ball and Socket, 8-32 Thread | |||||

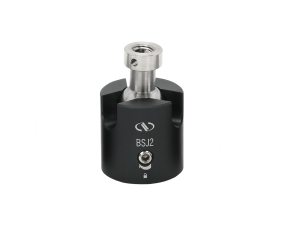

 | BSJ2 Ball and Socket Adjustable Optical Post Heads Adjustable Optical Post Head, Ball and Socket, 1/4-20 Thread | |||||
| M-BSJ1 Ball and Socket Adjustable Optical Post Heads Adjustable Optical Post Head, Ball and Socket, M4 Thread | |||||
| M-BSJ2 Ball and Socket Adjustable Optical Post Heads Adjustable Optical Post Head, Ball and Socket, M6 Thread |
Features
Maximum Alignment Flexibility
The articulated ball and socket jointed optical post heads provide a simple method of adjusting a mounting surface within a large range. They are adjustable throughout a 50° cone. Three-cutout design allows extended adjustment to horizontal position at these three directions. A single locking screw provides superior locking force and enables easy locking and unlocking.
Available in Two Sizes
These post heads feature matching threaded holes at the tip and in the bottom for attaching opto-mechanical components. They are offered in both a small size (8/32, M4) for 0.5 and 0.7 in. optical posts and pedestals and a large size (1/4-20, M6) for 1.0 in. pedestals.
