Adjustable Optical Post Head, Ball and Socket, M6 Thread

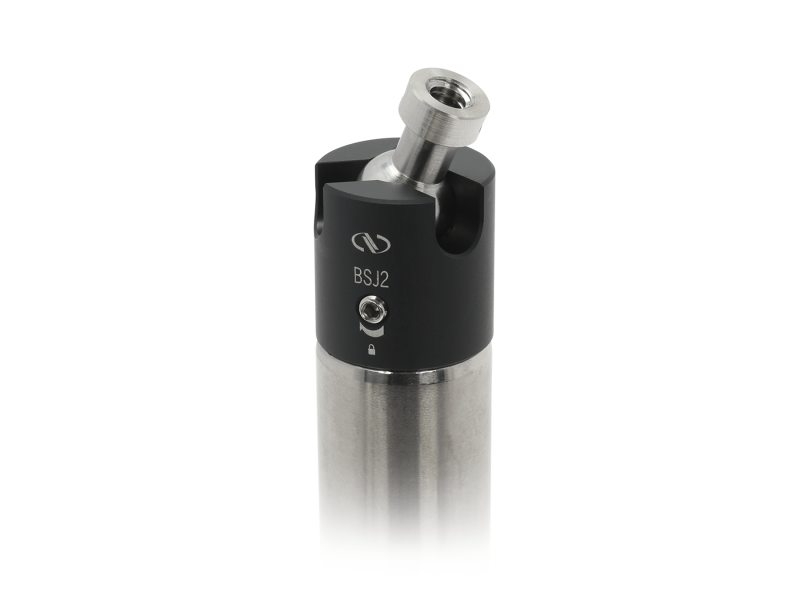

Ball and Socket Adjustable Optical Post Heads

The M-BSJ2 features a ball and socket mechanism that allows a large range of angular adjustment for optical component mounts. The single locking set screw securely locks the mount in place after alignment. Matching M6 threaded holes in the base and stem for mounting posts and optical component mounts.

Specifications

Technical Specs

Thread Type
M6

Pack Quantity
1

Thread Type
M6

Pack Quantity
1

Resources & Downloads

3D Product Models

2D Product Drawings

BSJ2 SERIES.pdf(57.3 kB, PDF)

Other

MKS RoHS2-2021 Certificate BSJ Series.pdf(683.8 kB, PDF)
