Adjustable Optical Post Head, Ball and Socket, 1/4-20 Thread

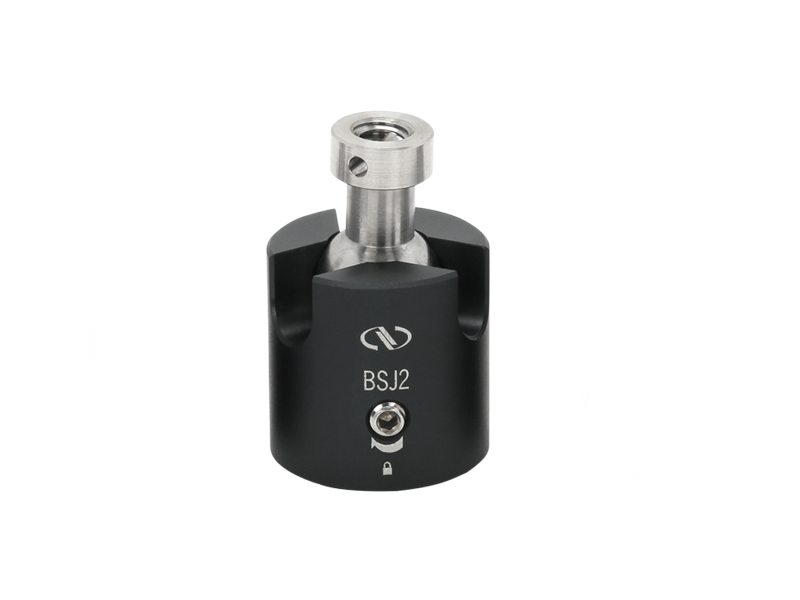

Ball and Socket Adjustable Optical Post Heads

The BSJ2 features a ball and socket mechanism that allows a large range of angular adjustment for optical component mounts. The single locking set screw securely locks the mount in place after alignment. Matching 1/4-20 threaded holes in the base and stem for mounting posts and optical component mounts.

Specifications

Technical Specs

Thread Type
1/4-20

Pack Quantity
1

Thread Type
1/4-20

Pack Quantity
1

Resources & Downloads

3D Product Models

2D Product Drawings

BSJ2 SERIES.pdf(57.3 kB, PDF)

Other

MKS RoHS2-2021 Certificate BSJ Series.pdf(683.8 kB, PDF)
