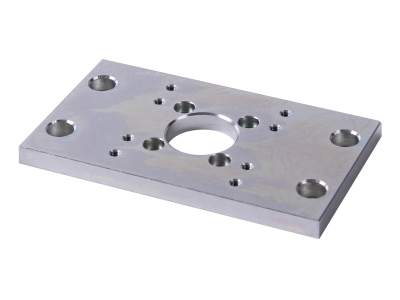

Base and Top Plates for Motorized Stages

These base and top plates are designed to work with Newport's motorized stages

Base plates for motorized stages
Top plates for motorized stages
Expand the mounting capabilities of your Newport stage

See All Features

Show Filters:

Showing 20 of 20 total products

Compatibility:

Description	Compatibility	Price

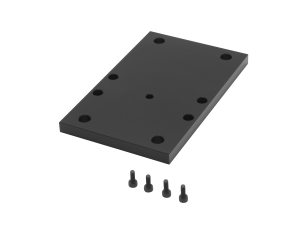

BGS50-BPBase Plate, BGS50 Stages	UNIVERSAL	$218

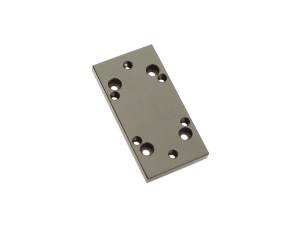

M-MFA-TPTop Plate, MFA Series Miniature Linear Stage, Metric Thread	METRIC	$164
M-URS100TPMounting Plate, Solid Top, URS100 Series, M6 Threaded Holes	METRIC	$231

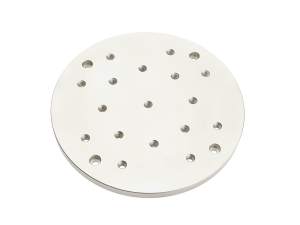

M-URS150TPMounting Plate, Solid Top, URS150 Series, M6 Threaded Holes	METRIC	$316

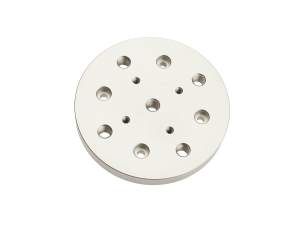

M-URS75TPMounting Plate, Solid Top, URS75 Series, M6 Threaded Holes	METRIC	$215

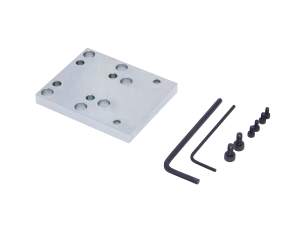

MFA-BKUniversal Top Plate, MFA Series, XZ and XYZ Mounting	UNIVERSAL	$169
MFA-BKV6Universal Top Plate, MFA Series, XZ and XYZ Mounting, Vacuum	UNIVERSAL	$275
MFA-BPUniversal Base Plate, MFA Series Stages	UNIVERSAL	$139
MFA-BPV6Universal Base Plate, MFA Series Stage, vacuum compatible	UNIVERSAL	$203

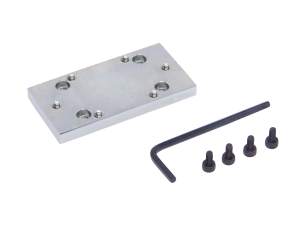

MFA-TPTop Plate, MFA Series Miniature Linear Stage, English Thread	IMPERIAL	$164
MFA-TPV6Top Plate, MFA Linear Stage, Vacuum Compatible, English Thread	IMPERIAL	$210

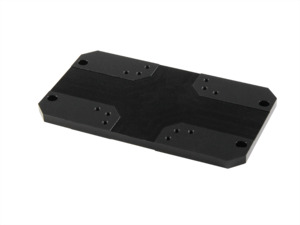

MLT-BPBase Plate, MLT Series Linear Stages	METRIC	$373

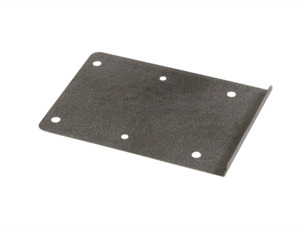

MLT-XYPLATEMagnetic Barrier Plate, MLT Series Linear Stages	UNIVERSAL	$118
MTN-BPBase Plate, MTN Series Linear Stages	UNIVERSAL	$535
MTN-TPTop Plate, MTN Series Linear Stages	IMPERIAL	$387

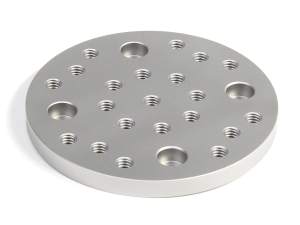

URS100TPMounting Plate, Solid Top, URS100 Series, 1/4-20 Threaded Holes	IMPERIAL	$231

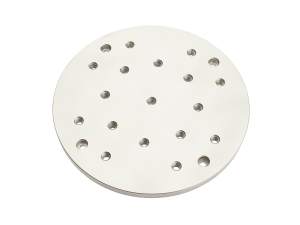

URS150TPMounting Plate, Solid Top, URS150 Series, 1/4-20 Threaded Holes	IMPERIAL	$316

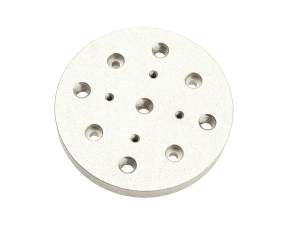

URS75TPMounting Plate, Solid Top, URS75 Series, 1/4-20 Threaded Holes	IMPERIAL	$215

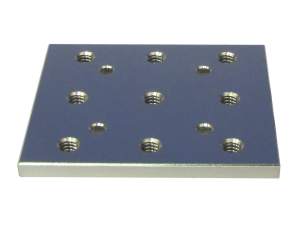

UTS-TPTop Plate, UTS Stages with English Holes	UNIVERSAL	$237

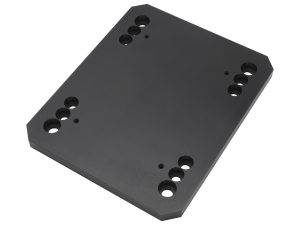

VP-BPUniversal Base Plate, VP Series Stages	UNIVERSAL	$274

Show Less

Features

Mounting Plates for URS Rotation Stages

Stainless steel solid top mounting plates are avaialbe for URS Precision DC and stepper motor rotation stages. Three sizes are availabe for the URS75, URS100 and URS150 products with either English or metric threaded and clear tapped holes.

Top and Base Plates for Miniature MFA Linear Stages

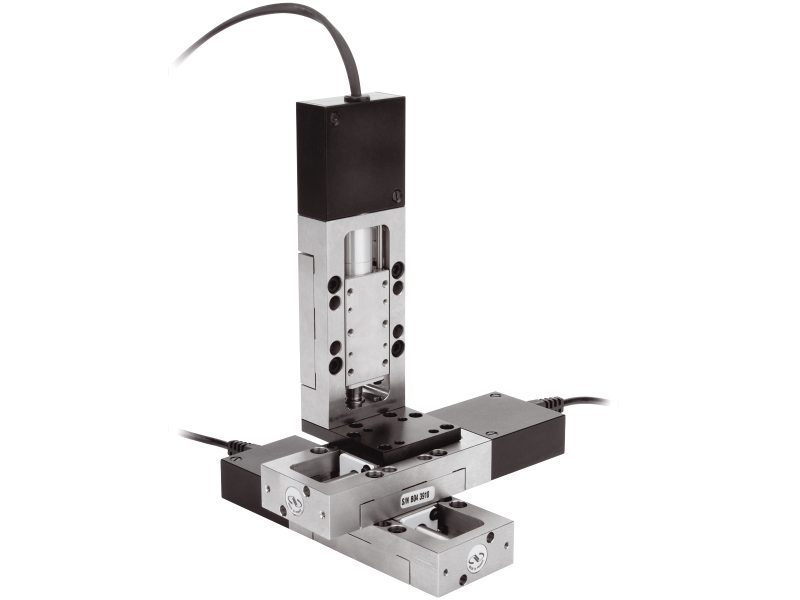

Steel top plates for the MFA Miniature Steel DC and stepper motor linear stages enable the assembly of compact multi-axis motorized linear systems. A base plate allows mounting an MFA stage onto an optical table. Vaccum compatible versions of these plates are also available.

Top and Base Plates for UTS and MTN Linear Stages

Top plates with English hole patterns are available for UTS Steel DC and stepper motor linear stages and MTN Steel High Load Capacity DC and stepper motor linear stages. A base plate for mounting the MTN to an optical table is also available.
