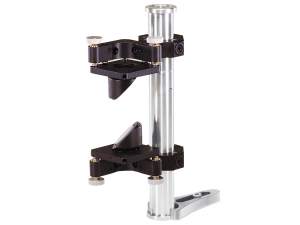

Beamsplitting periscope kits provide the necessary components to fully assemble periscope system to fit your specific mirrors and system requirements. These kits are available with various mounting options for mirrors to provide the optimal steering sensitivity for any system using 1 in. optics.
- Beam splitting 45 degree mirror holders
- 58 to 255 mm optical axis height adjustment
- 3 axis adjustment provides both angular and fine height adjustment
- Utilizes standard 1 in. diameter stainless steel pedestal posts See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9151-M Beam Splitting PeriscopesPedestal Periscope Kit, 255 mm Height, 25.4 mm Mirrors, Metric | |||||
| 9151NF Beam Splitting PeriscopesPedestal Periscope Kit, 10.1 in. Height, 1 in. Mirrors, English | |||||
 | 9173 Beam Splitting PeriscopesPedestal Periscope Kit, Valu, 10.6 in. Height, 1 in. Mirrors, English | |||||
| 9173-M Beam Splitting PeriscopesPedestal Periscope Kit, Valu, 270 mm Height, 25.4 mm Mirrors, Metric |
Features
Kits to Build Complete Periscope System

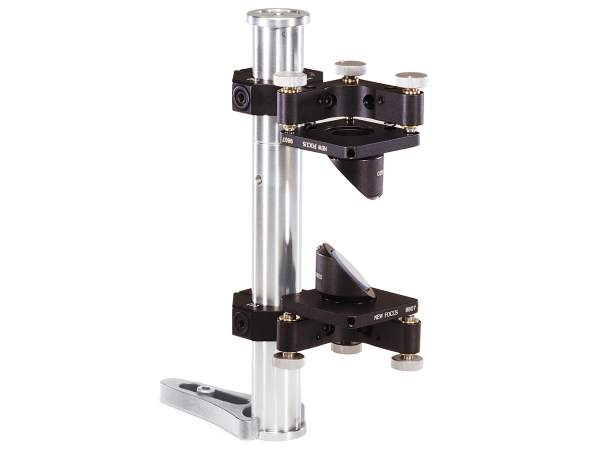

Each periscope kit houses two 1 inch reflecting surfaces, sold separately, to alter a beam path horizontally, either raising or lowering of the beam axis height, and includes all of the following: two 6 in. tall optical pedestals for sturdy mounting, two of our pedestal clamps to adjust mirror height, two Space-Saving Mirror Mounts, two 45° adapters, and a clamping fork.
Fine Angular and Height Adjustments
The included mirror mounts feature our proprietary precision knob actuated 1/4-80 screws and bushings, sapphire seats, and 5/8 in. thick frames, ensuring superior stability and precise repeatable adjustment. 3-axis adjustment provides both fine angular and height adjustment.
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9141-M Post Clamp, 25.4 mm Diameter Pedestals and Posts, M4 Thread | |||||
 | 9141NF Post Clamp, 1.0 in. Diameter Pedestals and Posts, 8-32 Thread | |||||

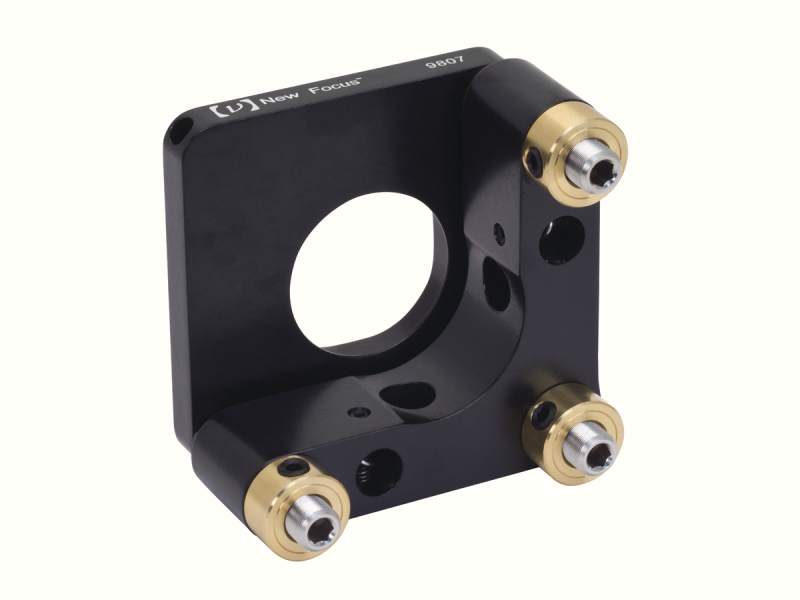

 | 9807 Mirror Mount, Classic, Center, 1.0 in., 3 Knobs | |||||
 | 9807-L Mirror Mount, Classic, Center, 1.0 in., 3 Locking Allen-Keys | |||||
 | 9920 45 Degree Mirror Holder, 25.4 mm Diameter | |||||

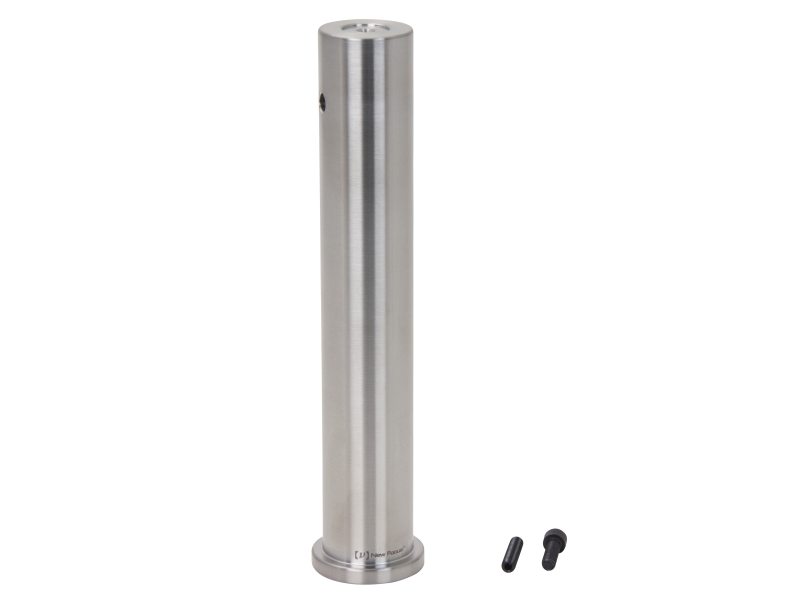

 | 9962 Optical Pedestal, Clean-Passivated, 6.0 in. Height, 1 in. Diameter, 8-32 | |||||
| 9962-M Optical Pedestal, Clean-Passivated, 152.4 mm Height, 25.4 mm Diameter, M4 |
