Compare Description Drawings, CAD & Specs Avail. Price

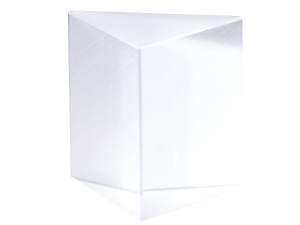

Brewster Angle Dispersing Prisms for Ultrashort Pulses 06LK10 Brewster Angle Dispersing Prisms for Ultrashort PulsesBrewster Angle Dispersing Prism, Ultrafast, LaK21, 15 mm, 370-2000 nm
$282
Brewster Angle Dispersing Prisms for Ultrashort Pulses 06SB10 Brewster Angle Dispersing Prisms for Ultrashort PulsesBrewster Angle Dispersing Prism, Ultrafast, UVFS, 15 mm, 185-2100 nm
$329
Brewster Angle Dispersing Prisms for Ultrashort Pulses 06SF10 Brewster Angle Dispersing Prisms for Ultrashort PulsesBrewster Angle Dispersing Prism, Ultrafast, SF10, 15 mm, 370-2000 nm
$282
Brewster Angle Dispersing Prisms for Ultrashort Pulses 10LK10 Brewster Angle Dispersing Prisms for Ultrashort PulsesBrewster Angle Dispersing Prism, Ultrafast, LaK21, 25 mm, 370-2000 nm
$649
Brewster Angle Dispersing Prisms for Ultrashort Pulses 10SB10 Brewster Angle Dispersing Prisms for Ultrashort PulsesBrewster Angle Dispersing Prism, Ultrafast, UVFS, 25 mm, 185-2100 nm
$484
Brewster Angle Dispersing Prisms for Ultrashort Pulses 10SF10 Brewster Angle Dispersing Prisms for Ultrashort PulsesBrewster Angle Dispersing Prism, Ultrafast, SF10, 25 mm, 370-2000 nm
$498

Features

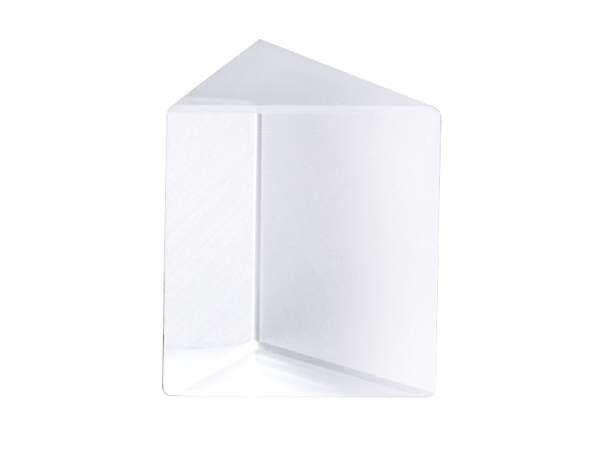

High Quality Brewster's Angle Prisms

The quality of the prism material, accuracy of the angle, and fabrication tolerances ultimately impact ultrafast laser performance. Newport's prisms are made from only precision quality material, with tightly toleranced prism angles, and λ/10 surface flatness. The prism apex angle is precisely fabricated at Brewster’s angle to minimize Fresnel losses.

UV Fused Silica Dispersing Prisms

Fused silica prisms provide group velocity dispersion of 360 fsec2/cm at 800 nm.

LaK21 Optical Glass Dispersing Prisms

LaK21 glass prisms provide 600 fsec2/cm of second order dispersion at 800 nm.

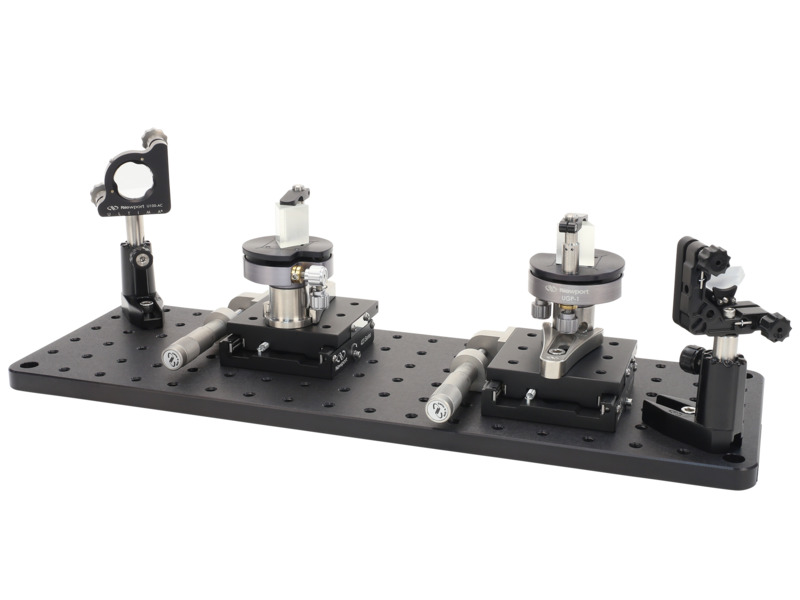

Prism Compressor for Ultrashort Pulses

Two identical Brewster Angle Prisms and a folding mirror are used to create an ultrafast prism compressor. Prisms are the optics of choice for intracavity dispersion compression. For more information on how to select the proper prism material and the associated calculations for compression, please see Application Note 29. See the parts list of the shown setup example below.

Part No Description Quantity
10SB10 25 mm UVFS Prism 2
UGP-1 Ultima Gimbal Mount 2
PS-1 1.0 in. Optical Pedestal 2
PS-F Fork Clamp 2
423 Linear Stage 2
SM-25 Vernier Micrometer 2
10D20ER.2 1.0 in. Silver Mirror 1
U100-A2K Ultima Mirror Mount 1
10DD20ER.24 D Shape Silver Mirror 1
M1-1D Edge Grip Mirror Mount 1
SP-2 0.5 in. Optical Post 2
BPH-2 Slotted Base Post Holder 2

SF10 Dispersing Prisms

SF10 glass prisms provide group velocity dispersion of 1600 fsec2/cm at 800 nm.

15 mm or 25 mm Sized Brewster Angle Prisms

Two sizes are available in each material: 25 mm and 15 mm. The 25 mm prism provides more material for light to propagate through and hence offers more flexibility when used for beam displacement. The 15 mm prism is ideal in environments with space constraints.

The Brewster Apex angle is dependent on material and is listed below.

Material Apex Angle
Fused Silica 69.06°
N-LaK21 63.00°
N-SF10 60.60°

Accessories

Compare Description Drawings, CAD & Specs Avail. Price

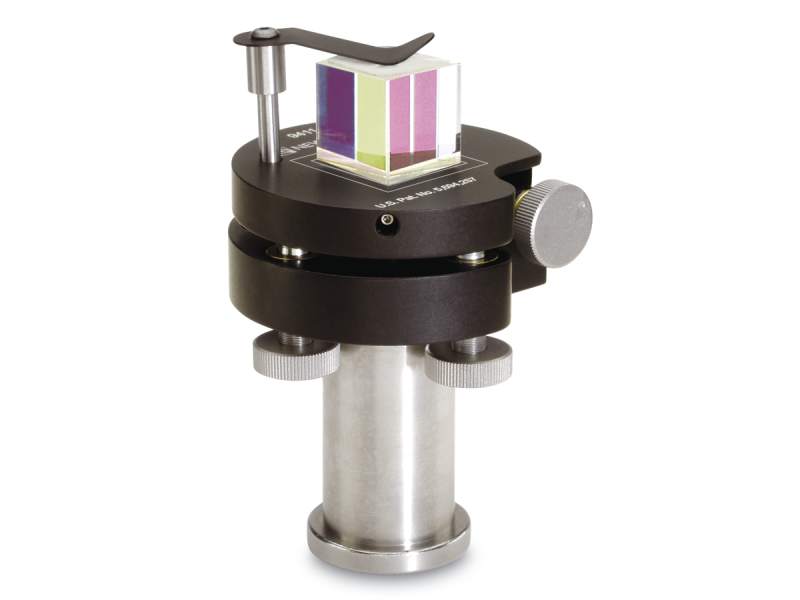

9411 Prism Mount, 0.25 to 1.00 in., ±5 °, 8-32
$494

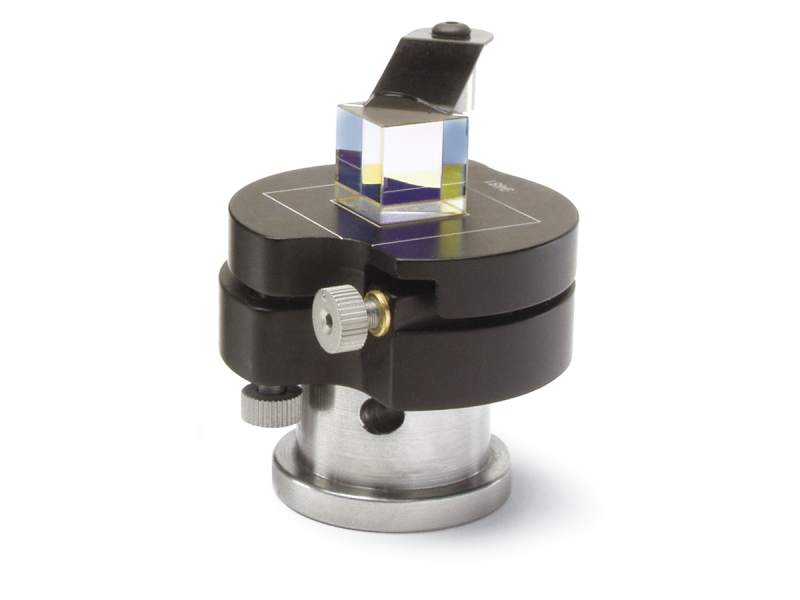

 9481 Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, 8-32
$488
 M1-PT M1 Prism Mount, 2 Knob Actuators
$143
 UGP-1 Gimbal Prism Mount, ULTIMA<sup>®</sup>, 1 in., 100 TPI Adjustment Screws
$448
