Super Broadband Ultrafast Turning Mirrors

Newport's super broadband turning mirrors reflect over 99.6% over the extremely wide range of 670-1340 nm. They have very low, slightly negative Group Delay Dispersion (GDD) and low third order dispersion. Designed to steer ultrashort pulses at 45° AOI with minimal effect on pulse distortion, these mirrors are ideal for use with Spectra-Physics ultrafast lasers such as the InSight® X3™.

Low GDD over superbroad bandwidth
R>99.6% @ 670-1340 nm for P- and S- polarization
Optimized for 45° AOI for beam steering
Polished back surface allows transmission at other wavelengths

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		10Q20UF.55P Super Broadband Ultrafast MirrorsBroadband Turning Mirror, Ultrafast, 25.4 mm, P Pol, 670-1340 nm	UNIVERSAL			$1,056
		10Q20UF.55S Super Broadband Ultrafast MirrorsBroadband Turning Mirror, Ultrafast, 25.4 mm, S Pol, 670-1340 nm	UNIVERSAL			$1,056

Specifications

Features

Wide Spectral Bandwidth

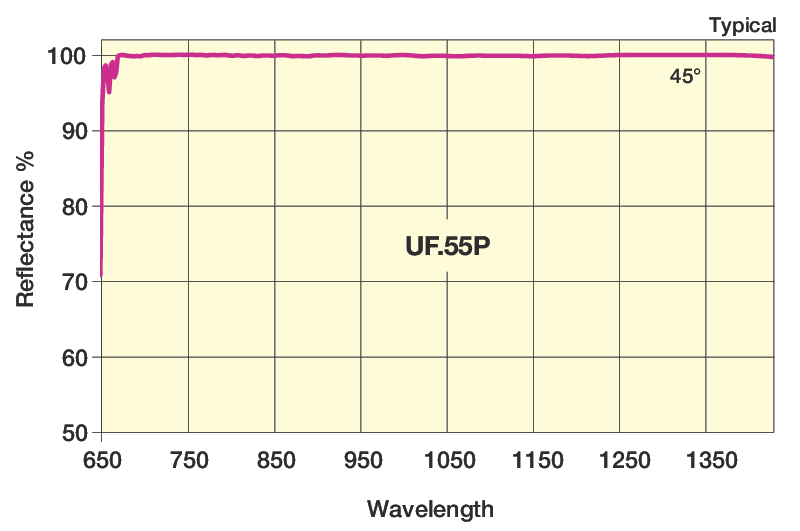

Our Ultrafast Super Broadband Turning Mirrors are designed to steer beams at 45 degrees AOI with over 99.6% reflection across the extremely wide 670 to 1340 nm range. The back surface of the mirror is polished to enable transmission of visible wavelengths.

Minimal Effect on Pulse Dispersion

Ultrafast broadband turning mirrors have a slightly negative group delay dispersion from 670 to 1340 nm.

Theoretical GDD for UF.55 Coating

Slight Wedge to Suppress Interference Effects

Our ultrafast mirrors may be used as dichroic mirrors in pump probe laser applications. The mirrors have a 10 arc minute wedge angle to suppress interference fringes for the transmitted beam. Note that performance outside of the specified wavelength range cannot be guaranteed.

Two Photon Microscopy Applications

In two photon microscopy, biological samples are illuminated with focused ultrashort pulsed infrared lasers. At the focal point molecules may absorb two photons then fluoresce in the visible range. These incident pulses often span a very broad wavelength range. Intensity of the fluorescence signal depends strongly on laser pulse width and peak power. Our mirrors allow redirection of Ti Sapphire beams for all possible wavelength ranges with minimal power loss and pulse broadening for optimal system efficiency.

Fused Silica Substrates

Fused Silica is synthetic amorphous silicon dioxide of extremely high purity. This non-crystalline, colorless silica glass combines a low content of inclusions with high refractive index homogeneity, a very low thermal expansion coefficient, and excellent transmittance in the wavelength regime from UV to NIR. As a result, these mirrors will perform better with temperature fluctuations and is ideal for high-energy laser applications due to its high energy damage threshold. For more information, please see our Optical Materials technical note.
