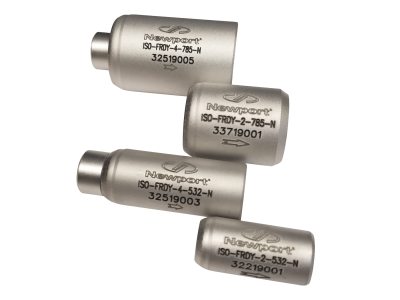

Compact Faraday Optical Isolators

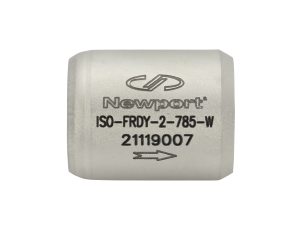

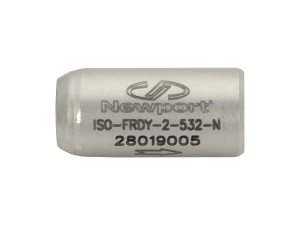

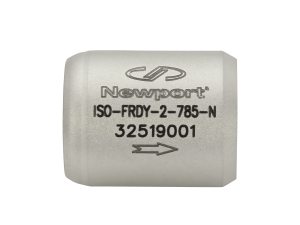

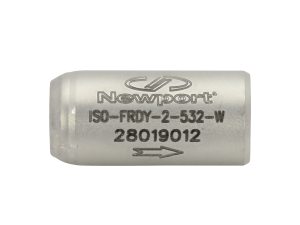

The Compact Faraday Optical Isolator is essentially a uni-directional light valve. The compact design makes it highly suitable for OEM integration. They are available with a 2- or 4-mm clear aperture and in a variety of wavelength ranges to allow for optimal isolation and transmission at specific wavelengths. The devices contain optically-contacted polarizing beamsplitter cubes, resulting in high transmission compared to other available isolators.

Up to 5 W of forward power handling
>33 dB isolation
>95% transmission
Compact isolator design
532, 638 and 785 nm center wavelengths
1/2 waveplate option (-W models)

See All Features

Show Filters:

Showing 8 of 8 total products

Compatibility:

Description	Compatibility	Center Wavelength	Spectral Range	Clear Aperture	Price

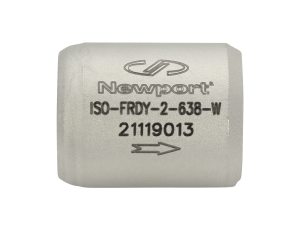

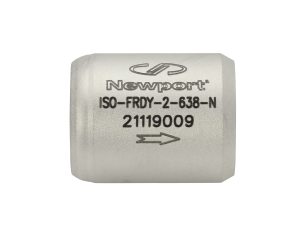

ISO-FRDY-02-638-NFaraday Optical Isolator, Compact, 2 mm, 638 nm, PM Isolator.	UNIVERSAL	638 nm	628-648 nm	2 mm	$1,250
ISO-FRDY-02-638-WFaraday Optical Isolator, Compact, 2 mm, 638 nm, PM Isolator, 1/2 Waveplate, [DISCONTINUED]	UNIVERSAL	638 nm	628-648 nm	2 mm	$1,530

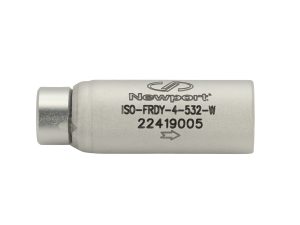

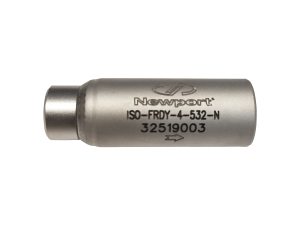

ISO-FRDY-04-532-NFaraday Optical Isolator, Compact, 4 mm, 532 nm, PM Isolator	UNIVERSAL	532 nm	522-542 nm	4 mm	$1,730
ISO-FRDY-04-532-WFaraday Optical Isolator, Compact, 4 mm, 532 nm, PM Isolator, 1/2 Waveplate	UNIVERSAL	532 nm	522-542 nm	4 mm	$1,890

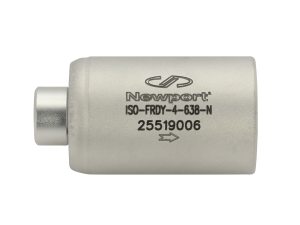

ISO-FRDY-04-638-NFaraday Optical Isolator, Compact, 4 mm, 638 nm, PM Isolator	UNIVERSAL	638 nm	628-648 nm	4 mm	$1,730

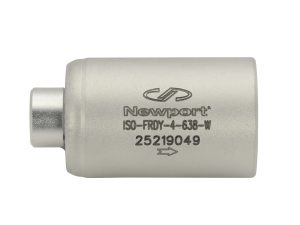

ISO-FRDY-04-638-WFaraday Optical Isolator, Compact, 4 mm, 638 nm, PM Isolator, 1/2 Waveplate	UNIVERSAL	638 nm	628-648 nm	4 mm	$1,940
ISO-FRDY-04-785-NFaraday Optical Isolator, Compact, 4 mm, 785 nm, PM Isolator	UNIVERSAL	785 nm	775-795 nm	4 mm	$1,730
ISO-FRDY-04-785-WFaraday Optical Isolator, Compact, 4 mm, 785 nm, PM Isolator, 1/2 Waveplate	UNIVERSAL	785 nm	775-795 nm	4 mm	$1,940

Specifications

Center Wavelength
532, 638, or 785 nm
Clear Aperture
2 or 4 mm
Isolation
>33 dB
Transmission
>95%

Forward Power Handling
5 W
Material
Terbium Gallium Garnet
Polarizer Type
PBS Cube Beamsplitter
Operating Temperature
10-30ºC

Features

High Transmission Polarizing Beamsplitter Cube

Our compact isolators contain optically contacted polarizing beamsplitter cubes that provide high transmission. With more photons available for your application, diodes can be run at lower currents, extending the diode lifetime.

1/2 Waveplate Option

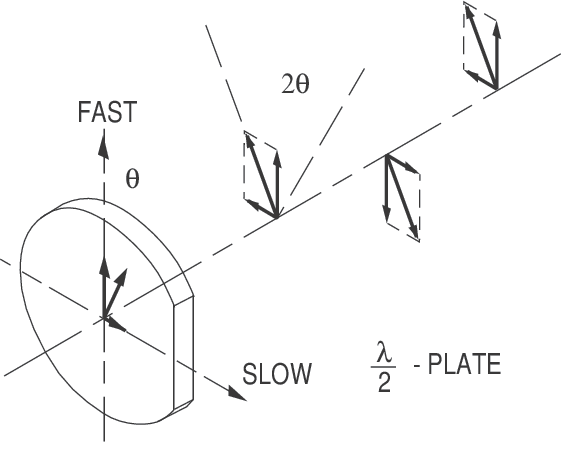

We offer versions with an added zero order 1/2 wave plate (-W models). The waveplate is installed at the factory and cannot be adjusted. Should you need to adjust the waveplate please contact us.

Mounting to a Table, Stage, or Post

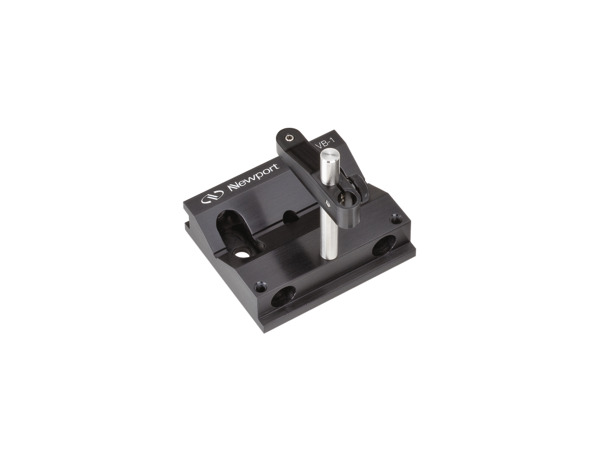

Newport offers the V-Block mount, a cost-effective way to mount and secure cylindrical devices, including these Compact Faraday Optical Isolators. The block can be attached directly to an optical table, tip/tilt or translation stage, or it can be post-mounted.

Applications

Common applications for compact isolators include:

Eliminating frequency instability in single-frequency lasers, such as diodes and OPSLs
Preventing mode-hopping in external cavity diode lasers
Eliminating parasitic oscillations due to ASE in amplified laser systems

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		VB-1Cylindrical Device Mount, V-Block, 3 inch (76.2 mm) Length	UNIVERSAL			$49
		M1-VGV-Groove Mount, M1, 2 Knob Actuators	UNIVERSAL			$157
